NEW PURIFI 8'' MWoofer [PTT8.0X04]

Adi777

Senior Member
Joined
Apr 14, 2022
Messages
426
Likes
244
DIYers, how about the design a'la Revel Salon Ultima 2, but with Purifi transducers?


sarumbear

Master Contributor
Forum Donor
Joined
Aug 15, 2020
Messages
5,983
Likes
5,369

OWC

Active Member
Joined
Apr 14, 2019
Messages
204
Likes
146
DIYers, how about the design a'la Revel Salon Ultima 2, but with Purifi transducers?
If we are talking about a non-compromise approach anything else than a 2-way monitor plus a multi-sub setup is a to much of a compromise in my books.

So having some big multi-way system just doesn't make any sense, even less so without a proper waveguide, unless your room acoustics are really really good.
Unless the woofers are purely doing the lower frequencies and are basically just a subwoofer in the same cabinet.
Although visually that would be a compromise for many people. A couple of subwoofers can be just made small and practically invisible.

  • Like
Reactions: 617

OWC

Active Member
Joined
Apr 14, 2019
Messages
204
Likes
146
Huge Open Baffle?
That's also possible, matter of taste at that point.

But going for open baffle for the lower frequencies doesn't make a whole lot of sense.

It most certainly helps, but still won't be able to get rid of all room modes.
Since they don't have a cabinet, the distortion caused by the (asymmetrical) compliance from the cabinet doesn't exist.
On the other hand, the efficiency of an open baffle is so extremely low due to the cancellation, this advantage is basically gone because of the much higher output power as well as the much higher cone excursion.

Especially compared to corner subwoofers, it's not a match in output power.

The asymmetry in a closed cabinet caused by the compliance of the cabinet, is mostly even order distortion, while an (much) higher cone excursion often results in odd order distortion.
Higher excursion also creates more inter-modulation distortion.

Last edited:

Adi777

Senior Member
Joined
Apr 14, 2022
Messages
426
Likes
244
That's also possible, matter of taste at that point.
I hope that I will be able to invite one person to listen to his large open baffles. I'll have a point of reference. You probably can't get better with OB than his speakers.


sarumbear

Master Contributor
Forum Donor
Joined
Aug 15, 2020
Messages
5,983
Likes
5,369

sarumbear

Master Contributor
Forum Donor
Joined
Aug 15, 2020
Messages
5,983
Likes
5,369
Huge Open Baffle?
I think his chart was measured on an open baffle. The drivers Qt is 0.34, as it can be seen that response is -12dB at 30Hz. You need to boost the power 8x to reach -3dB. Do you expect the distortion to stay as low as it’s shown?


sarumbear

Master Contributor
Forum Donor
Joined
Aug 15, 2020
Messages
5,983
Likes
5,369

OWC

Active Member
Joined
Apr 14, 2019
Messages
204
Likes
146

Adi777

Senior Member
Joined
Apr 14, 2022
Messages
426
Likes
244
I think his chart was measured on an open baffle. The drivers Qt is 0.34, as it can be seen that response is -12dB at 30Hz. You need to boost the power 8x to reach -3dB. Do you expect the distortion to stay as low as it’s shown?

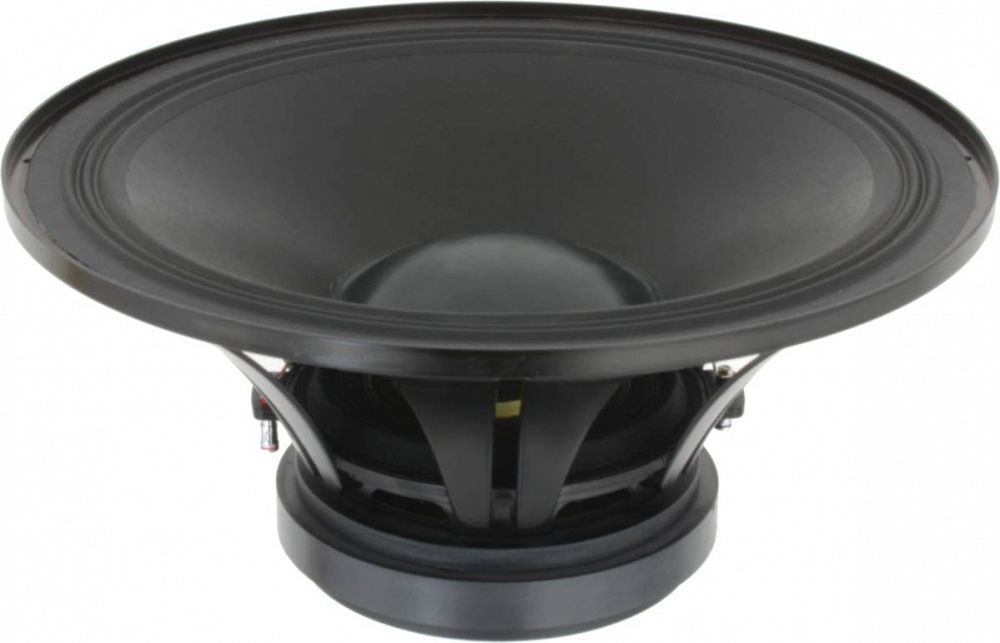

I don't have idea, because I don't have experience. His OB have 8x 18 inch AE Dipol and 8x 12 inch AE Dipol. If I good remember these OB have 14Hz with -3 or -6dB.


OWC

Active Member
Joined
Apr 14, 2019
Messages
204
Likes
146
I think his chart was measured on an open baffle. The drivers Qt is 0.34, as it can be seen that response is -12dB at 30Hz. You need to boost the power 8x to reach -3dB. Do you expect the distortion to stay as low as it’s shown?
Linkwitz has a simple calculator on his website to calculate the difference between a normal closed box vs dipole.

The output of a subwoofer against the wall will be much higher, even (much) better for a subwoofer in the corner.
We are talking about at least 6-12dB which is already half the amount of excursion or more.
(or double for a dipole).


voodooless

Master Contributor
Forum Donor
Joined
Jun 16, 2020
Messages
6,210
Likes
10,300
Location
Netherlands
And I’m Santa Claus.
You spend all your cash on your Kef wall.. so priorities I guess… It’s cheaper than the equivalent number of Purifies though, isn’t it. On the other hand, so many subs distributed in a room will probably give you very smooth low end response.


OWC

Active Member
Joined
Apr 14, 2019
Messages
204
Likes
146
I don't have idea, because I don't have experience. His OB have 8x 18 inch AE Dipol and 8x 12 inch AE Dipol. If I good remember these OB have 14Hz with -3 or -6dB.
Having a dipole that low doesn't make any technical sense at all.
Below the first room mode there are no benefits anymore, the whole room basically becomes a pressure chamber.
