"ASH-400 Project" Sylph Audio FB-100 Stereo Module with advanced PFFB

[SMen]

An advantage of working from home, is you get these important posts "hot off the press"!

Excellent @daniboun . You have avoided subjective pitfalls but stuck with the most important factors. Thank you. An obvious question is where your dual mono "Bamboo Project" fits in all of this! It is more powerful again?!



[daniboun]

An advantage of working from home, is you get these important posts "hot off the press"!

Excellent @daniboun . You have avoided subjective pitfalls but stuck with the most important factors. Thank you. An obvious question is where your dual mono "Bamboo Project" fits in all of this! It is more powerful again?!

I didn't have time to test the Dual Mono Bamboo) for good reason, someone probably bought it on impulse) Anyway, I'm moving soon I have to get rid of my equipment
I don't just have DIY projects, I'm also building a new house with a real living room to test more amps later lol

NB: teleworking pushes people to be lazy, chuuutttttttttt)



[amix]

DO NOT use power supply with split rails.

Why not?



[daniboun]

Why not?

TPA325X chips amps are in BTL mode and use a single rail supply
A good explanation here :

Best Single Rail Amps?

I'd just like to poll your opinions about what might be the better natively capable single rail power amp ICs or module designs? In terms of 'better' I leave that up to you to explain! :D It's far easier to find single rail pre-built SMPS PSUs, which is why I'm asking. I appreciate the lack of...

www.diyaudio.com



[Pierre159]

i have to find an amp for my new pair based on mark audio maop 10.2, do you think this amp could be a good idea?
because it don't tell how it sound...



[daniboun]

i have to find an amp for my new pair based on mark audio maop 10.2, do you think this amp could be a good idea?
because it don't tell how it sound...

I did not test the Mark audio maop 10.2... seems to be a good full range speaker. )
I think you should wait for the ASR test which will appear soon. For my part, I drive my Elac FS247.4 (85db) without any problem with my ASH-400

Elac FS 247.4, a big slap in the face!

Hi amigos, After listening, I had the opportunity to purchase a pair of Elac FS 247.4. I might as well tell you that at €1000 per pair (new), I got a golden deal) And what a big slap in the face! These speakers are exceptional from the first listen. For instance : nn the complex title Grare...

www.audiosciencereview.com



[bugal]

On one of my old projects I made a custom PSU for the PA5 and tried to compare but I noticed almost no difference between the stock PA5 PSU (144w) and the one I Diyed (300w)
The only way to compare it is to get reliable measurements....

A good basis for comparison will be for me to compare the FB100 to the 3E Audio coupled with my Micro-Audio PSU)

BTW I dismantled the PA5 psu and it seems to be a LLC type

Have you got a chance to compare the 3e Audio mono or stereo module powered by Micro Audio 46V with FB100 or FB360 also powered by MicroAudio 46V?
Mainly in terms of your subjective sound quality impression (sound smoothness, bass control, soundstage, instrument separation etc.)



[daniboun]

Have you got a chance to compare the 3e Audio mono or stereo module powered by Micro Audio 46V with FB100 or FB360 also powered by MicroAudio 46V?
Mainly in terms of your subjective sound quality impression (sound smoothness, bass control, soundstage, instrument separation etc.)

No. I only have one Micro Audio 48V for my Micro Audio projet (3E Audio). So not suitable for the Sylph FB100....



[bugal]

No. I only have one Micro Audio 48V for my Micro Audio projet (3E Audio). So not suitable for the Sylph FB100....

that's right - FB100 accepts max 38V. FB360 - 52V, so Micro Audio with 46-48 V would be perfect here.
I am curious about the comparision between 3E Audio 480-1-29A mono amp and Sylph Audio FB 360 mono. Especially in terms of sound impression.
Anybody has completed such a project? I would be grateful for any input.



[daniboun]

that's right - FB100 accepts max 38V. FB360 - 52V, so Micro Audio with 46-48 V would be perfect here.
I am curious about the comparision between 3E Audio 480-1-29A mono amp and Sylph Audio FB 360 mono. Especially in terms of sound impression.
Anybody has completed such a project? I would be grateful for any input.

FB100 and FB360 are one the way to Amir )
You will be fixed asap )

We will see if they match here :



[bugal]

FB100 and FB360 are one the way to Amir )
You will be fixed asap )

We will see if they match here :

View attachment 352444

yes, I am also looking forward to seeing these reviews and results.



[daniboun]

yes, I am also looking forward to seeing these reviews and results.

In any case, what I can confirm to everyone is that the Sylph Audio and 3E Audio Modules are robust and very well designed. They are equal in quality. Sylph Audio nevertheless chose classic heat dissipation via heatsink while 3E Audio opted for a heatspreader (which I find more practical)



[SMen]

Hi amigos,

XH 2.54MM shielded cables (for inputs)

Cables :
Any good quality copper cables, from 1.5mm2 to 2mm2, shielded if possible.
I make my own cables.

Hello @daniboun , I have just a couple of 'fine print' questions regarding your list of necessary parts.

Are these the correct female connectors to attach cables both to the power inputs, and the board's output male spade connectors, which I think are 6.35mm?

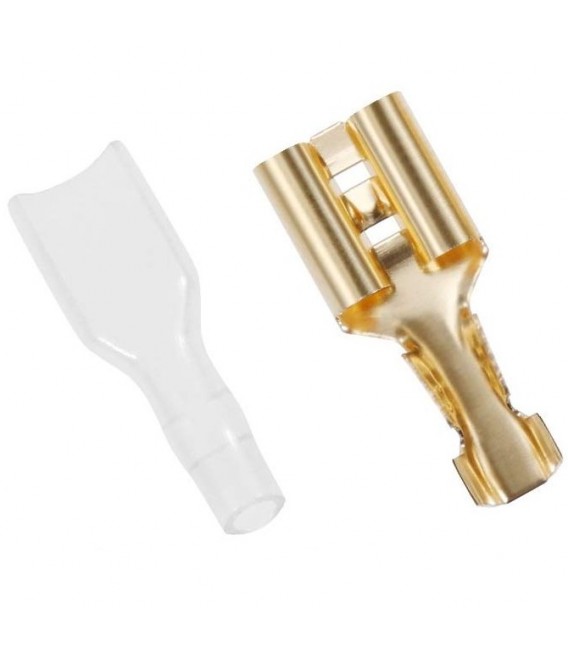

Insulated Female Blade Terminal Gold Plated 6.3mm Ø3mm (x10) - Audiophonics

These lugs accept cables up to 3mm and allow you to simply connect your speakers. In addition, they are gold plated to ensure good conductivity and resistance to oxidation.

www.audiophonics.fr

If not can you recommend connectors.

And I think that I am correct that the Sylph comes with the 2x XH 2.54mm connectors, but not the cable.
Audiophonics seem to be out of stock of your recommended cable. I've asked them these questions but they are yet to reply.
Many thanks for your suggestions.



[pjug]

Hi amigos,

I'm coming back to the forefront with a new project.

Great to read these projects. Do you know of any Class-D PFFB modules that are not BTL, using something like + and - 35V? I think some UcD are pretty inexpensive but I wonder if there are other budget ones besides Hypex?



[daniboun]

Great to read these projects. Do you know of any Class-D PFFB modules that are not BTL, using something like + and - 35V? I think some UcD are pretty inexpensive but I wonder if there are other budget ones besides Hypex?

No idea here....
Let's say that I consider more the performance / quality / price approach. And the 3E Audio and Sylph Audio modules fulfill this task well)



[Roland68]

Great to read these projects. Do you know of any Class-D PFFB modules that are not BTL, using something like + and - 35V? I think some UcD are pretty inexpensive but I wonder if there are other budget ones besides Hypex?

The amplifier IC's (TPA325x), the basic concept/design including the PFFB implementation are a design by TI, which was exploited to its full potential by Sylph Audio and 3e Audio, among others. This also includes BTL and PBTL as well as the supply with only a positive supply voltage.
It is not easily transferable to other concepts/designs and would have nothing to do with it.



[daniboun]

Hello @daniboun , I have just a couple of 'fine print' questions regarding your list of necessary parts.

Are these the correct female connectors to attach cables both to the power inputs, and the board's output male spade connectors, which I think are 6.35mm?

Insulated Female Blade Terminal Gold Plated 6.3mm Ø3mm (x10) - Audiophonics

These lugs accept cables up to 3mm and allow you to simply connect your speakers. In addition, they are gold plated to ensure good conductivity and resistance to oxidation.

www.audiophonics.fr

If not can you recommend connectors.

And I think that I am correct that the Sylph comes with the 2x XH 2.54mm connectors, but not the cable.
Audiophonics seem to be out of stock of your recommended cable. I've asked them these questions but they are yet to reply.
Many thanks for your suggestions.

The Faston connectors are 4.8mm. They are provided with the modules but without the cables.
The XH 2.54mm come with the modules.

A few tips here :

"Bamboo Project" : Dual Mono 3E Audio 480-1-29A Amplifier

Hi amigos, Following the ASR review of the 3E Audio 480-1-29A Module, I decided to roll up my sleeves and show you that with a little elbow grease, you can create a very beautiful amplifier based on these nice 3E Audio modules. I called this project, "Bamboo"> the pictures will speak for...

www.audiosciencereview.com



[daniboun]

@SylphAudio > could you please share the Cosmos measurements here when it is online ?



[somebodyelse]

The amplifier IC's (TPA325x), the basic concept/design including the PFFB implementation are a design by TI

Hypex were using post-filter feedback in the UcD amps well before TI's patent and app note. I don't remember there being much unusual in TI's app note compared to what you'd usually do to ensure stability with feedback. I could be missing something - it's been a long time since I've done that myself. On that basis you could potentially do something similar with other amps like IR's IRAUDAMP example designs - the ones I've looked at are dual rail, don't have PFFB and do have load sensitivity.



[Roland68]

Hypex were using post-filter feedback in the UcD amps well before TI's patent and app note. I don't remember there being much unusual in TI's app note compared to what you'd usually do to ensure stability with feedback. I could be missing something - it's been a long time since I've done that myself. On that basis you could potentially do something similar with other amps like IR's IRAUDAMP example designs - the ones I've looked at are dual rail, don't have PFFB and do have load sensitivity.

You are taking my answer a little out of context, you have probably misunderstood me and I am probably the wrong recipient.
My answer was related to @pjug question and only concerned TI's specific PFFB design/implementation for the TPA325x family, nothing else.
Hypex had already excluded @pjug itself in its question.

Of course, there are many amplifiers that use a PFFB design and have been doing so for a very long time. But I don't know of any corresponding available modules.
In this regard, it would be great if you could name a few modules with the properties desired by @pjug .
