O-Noorus D1 - TPA3255 PFFB Stereo Amplifier - Front Display, Tone Control (with bypass) and Remote

[Guddu]

i'm seriously questioning whether pffb at this level with most common sensitivitely and load speakers is going to make that much of a difference

Problem is everyone wants PFFB even if it’s needed or not, it’s a great confusion for developers as well.

however i think it'll come to a point where pffb can be added for very little cost so why not have it

Absolutely!!!
If manufacturer isn’t milking on keyword “PFFB” then no reason for not going for it.
If nothing, it will keep the PFFB itching away.

also, we need some testing at the 48v 5a level

Absolutely, and I am going to use 48v 5a or 10a for my tests.
D1 has 63v filter capacitors, and so 48-50v should not be an issue.



[surroundman]

I have just got the O-Noorus D1 amplifier yesterday, and I am transitioning my setup from Fosi v3 mono (PFFB) to O-Noorus D1 (PFFB) as I am writing this and the first impression is totally positive for me.

Please, test the Sub-out and pre-out if they work properly with the volume control. I will buy one as soon as they release the blue version. This amp, for what it promises, is in my opinion THE best value amp, miles ahead of every Fosi or any other competitor's products.



[jooc]

Please, test the Sub-out and pre-out if they work properly with the volume control. I will buy one as soon as they release the blue version. This amp, for what it promises, is in my opinion THE best value amp, miles ahead of every Fosi or any other competitor's products.

Has someone measured sinad, etc? I don't see any actual reviews out there yet.



[Guddu]

Please, test the Sub-out and pre-out if they work properly with the volume control. I will buy one as soon as they release the blue version. This amp, for what it promises, is in my opinion THE best value amp, miles ahead of every Fosi or any other competitor's products.

Sure thing, I will post all the details and even can send you some video recordings if you wish.
If there is any specific test as well that you would like to see then let me know, except instrumental measurements.



[Guddu]

Has someone measured sinad, etc? I don't see any actual reviews out there yet.

There hasn’t been any such measurements done yet, however it’s been mentioned in the thread that a sample has been sent to Amir.



[Guddu]

O-Noorus D1 [TPA3255 PFFB] Stereo Amplifier - User Impressions | Owner's Thread

Dear FMs, I am intending to post User Impressions & Observations here in this User Impressions | Owner's Thread. pls note that Amir's measurements & review of this amplifier is in queue and awaited. I created a thread on O-Noorus D1 which captures details like features, internal pics, quick...

audiosciencereview.com



[YesChickenNuggets]

Imagine something like Elac Reference DBR62 with built in multiple-input SU-1 level DAC and PFFB class-D amplification built in, for $700 shipped, or same built-in dac/pffb amp stack in the Sony SSCS5s for $250 shipped. Audiophilia for the masses.

I think integrated products are good, but in practical application they're useless without Strong-DSP to correct room response.

So if we're talking all in one, measurement mic and dsp must be included. For example, most subwoofers regardless of price are useless trash without DSP.



[Ewedeking]

I'm a newbie. I've owned a BLUE D3 for a couple of months now. Source in is USB +90%. I've used 48v 5a and other psu of lower voltage. No issues except the 48v gets pretty hot and you get plenty of volume with lower voltage and less heat (36v seems ideal). Driving a pair of KEF LS50 (older non-meta) with a JBL sub (A100P). I can't wait to see the review of the D1 and the D3 (hopefully) but I can share that the D3 more than hits the mark for me.



[gasolin75]

Thanks that's for US, for Sweden I get this:
"Sorry, this item's currently unavailable in your location."

If now one has answered you question

D1 and D3 (only D3 is stock)

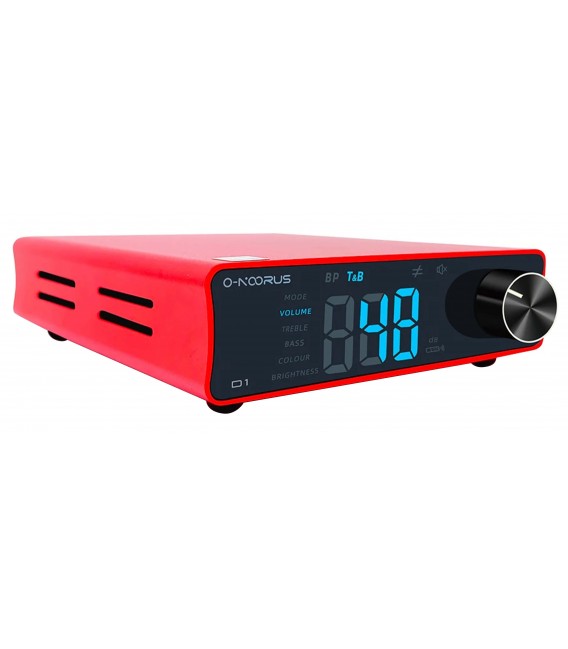

O-NOORUS D1 Class D Amplifier TPA3255 PFFB

The O-Noorus D1 amplifier is based on a PFFB architecture, a TPA3255 amplifier chip and two NE5532 AOPs for up to 2x 250W @ 4 ohm power.

www.audiophonics.fr

O-NOORUS D3 Class D Amplifier TPA3255 Bluetooth 5.0 2x130W 4 Ohm Red - Audiophonics

With its D3 class D amplifier, O-Noorus offers a compact, powerful amplifier with the essentials. The D3 features a TPA 3255 amplifier chip and an output power of around 2x130W @ 4Ω.

www.audiophonics.fr



[gasolin75]

we need some testing at the 48v 5a level

Heat ? No vents like Fosi Audio and AIYIMA



[Guddu]

Heat ? No vents like Fosi Audio and AIYIMA

Both D1 and D3 have vents on sides and bottom, please see the pictures I have added.



[Ewedeking]

From the back of my D3 it appears they intend to use the same case/part for the D1 D2 and D3



[gasolin75]

Both D1 and D3 have vents on sides and bottom, please see the pictures I have added.

Daam i totally missed it

Is it enough ?



[Guddu]

Daam i totally missed it

Is it enough ?

I think so, unless pushed massively hard for its caliber.
Metal heatsink is screwed to the bottom of the case, so case itself becomes responsible for cooling the chip.
Vents are there for the rest.



[grogi.giant]

i'm seriously questioning whether pffb at this level with most common sensitivitely and load speakers is going to make that much of a difference

With most it does not matter much. But with some it is immediately noticeable.

however i think it'll come to a point where pffb can be added for very little cost so why not have it

It always was.



[MCH]

however i think it'll come to a point where pffb can be added for very little cost so why not have it

Actually, PFFB was initially regarded as a way to reduce cost, as you could achieve the same performance with regular, cheaper components (most specifically output inductors):

See for instance how Aiyima A70 matches and improves noise and distortion of TI TPA3255 evaluation board, that has top notch components and layout. Save of course for the different gain, voltage and maybe measurement methodology.
TI:

Aiyima:



[gasolin75]

o-noorus question , is the volume reversed or is the picture reversed (mirror image)



[Alexander Lin]

If now one has answered you question

D1 and D3 (only D3 is stock)

O-NOORUS D1 Class D Amplifier TPA3255 PFFB

The O-Noorus D1 amplifier is based on a PFFB architecture, a TPA3255 amplifier chip and two NE5532 AOPs for up to 2x 250W @ 4 ohm power.

www.audiophonics.fr

O-NOORUS D3 Class D Amplifier TPA3255 Bluetooth 5.0 2x130W 4 Ohm Red - Audiophonics

With its D3 class D amplifier, O-Noorus offers a compact, powerful amplifier with the essentials. The D3 features a TPA 3255 amplifier chip and an output power of around 2x130W @ 4Ω.

www.audiophonics.fr

O-noorus Audio Official Store - Amazing products with exclusive discounts on AliExpress

Discover the wide range of from AliExpress Top Seller O-noorus Audio Official Store.Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.

o-noorus.aliexpress.com



[Alexander Lin]

o-noorus question , is the volume reversed or is the picture reversed (mirror image)

View attachment 367504

The circuit board is inserted backwards, so it is different from the normal one, but it rotates clockwise.



[grogi.giant]

o-noorus question , is the volume reversed or is the picture reversed (mirror image)

View attachment 367504

Neither.

It is rotated by 180 degrees from what you typically see. Min is at 1 o'clock, 50% at 6 o'clock and max at 11 o'clock.

Not a big deal at all.
.
