Kali Audio IN-8v2 (Second Wave) 3-Way Studio Monitor Review

hardisj

Major Contributor
Reviewer
Joined
Jul 18, 2019
Messages
2,487
Likes
11,469
Location
North Alabama
#1
Copy/paste from my site. Review may not translate from my site so here is the link to the full review on my site:
https://www.erinsaudiocorner.com/loudspeakers/kali_in-8v2/




Kali Audio IN-8v2 (Second Wave) 3-Way Studio Monitor Review
  • Saturday, Jun 26, 2021

Foreword / YouTube Video Review
The review on this website is a brief overview and summary of the objective performance of this speaker. It is not intended to be a deep dive. Moreso, this is information for those who prefer “just the facts” and prefer to have the data without the filler.
Note: Coming Soon

For a primer on what the data means, please watch my series of videos where I provide in-depth discussion and examples of how to read the graphics presented hereon.
https://youtube.com/playlist?list=PLnIxFR_ey0b37Ex4KV2mBz-kYB7QLffR1


Information and Photos

The Kali IN-8v2 is the second generation powered 3-way Studio Monitor featuring a 4-inch coaxial midrange/tweeter and an 8-inch midwoofer.
MSRP for the single speaker is approximately $399 USD and $800 USD for a pair.

The back features a bank of dip switches for boundary settings (discussed later) and basic level adjustments. There is a volume knob and (3) input options: XLR, TRS and RCA phono.






CTA-2034 (SPINORAMA) and Accompanying Data
All data collected using Klippel’s Near-Field Scanner. The Near-Field-Scanner 3D (NFS) offers a fully automated acoustic measurement of direct sound radiated from the source under test. The radiated sound is determined in any desired distance and angle in the 3D space outside the scanning surface. Directivity, sound power, SPL response and many more key figures are obtained for any kind of loudspeaker and audio system in near field applications (e.g. studio monitors, mobile devices) as well as far field applications (e.g. professional audio systems). Utilizing a minimum of measurement points, a comprehensive data set is generated containing the loudspeaker’s high resolution, free field sound radiation in the near and far field. For a detailed explanation of how the NFS works and the science behind it, please watch the below discussion with designer Christian Bellmann:


The reference plane in this test is at the tweeter. Volume set to ‘0’ with XLR input. The dip switches were all set to ‘0’ for the free field setting.

Measurements are provided in a format in accordance with the Standard Method of Measurement for In-Home Loudspeakers (ANSI/CTA-2034-A R-2020). For more information, please see this link.



CTA-2034 / SPINORAMA:


Early Reflections Breakout:


Estimated In-Room Response:

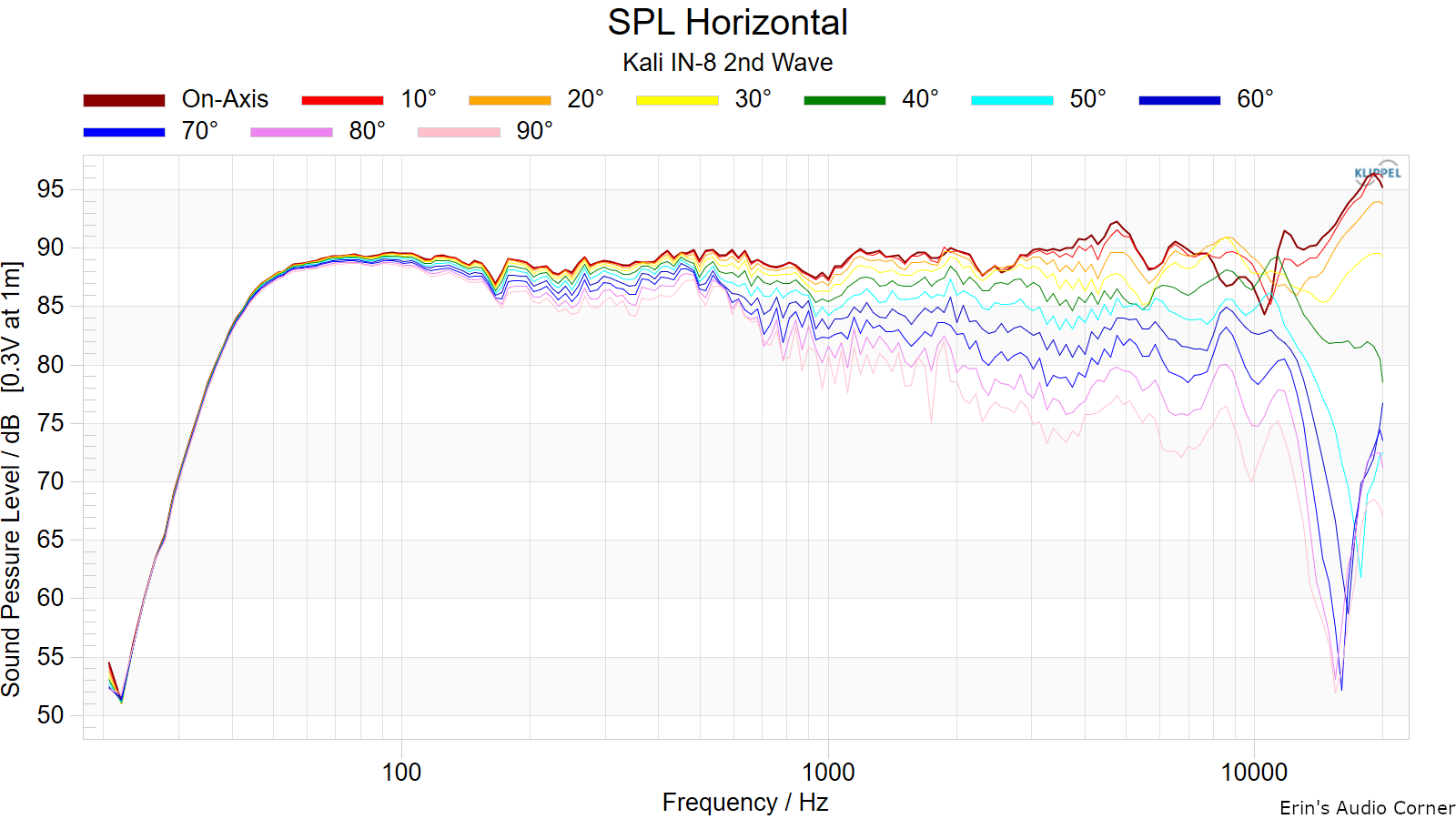

Horizontal Frequency Response (0° to ±90°):

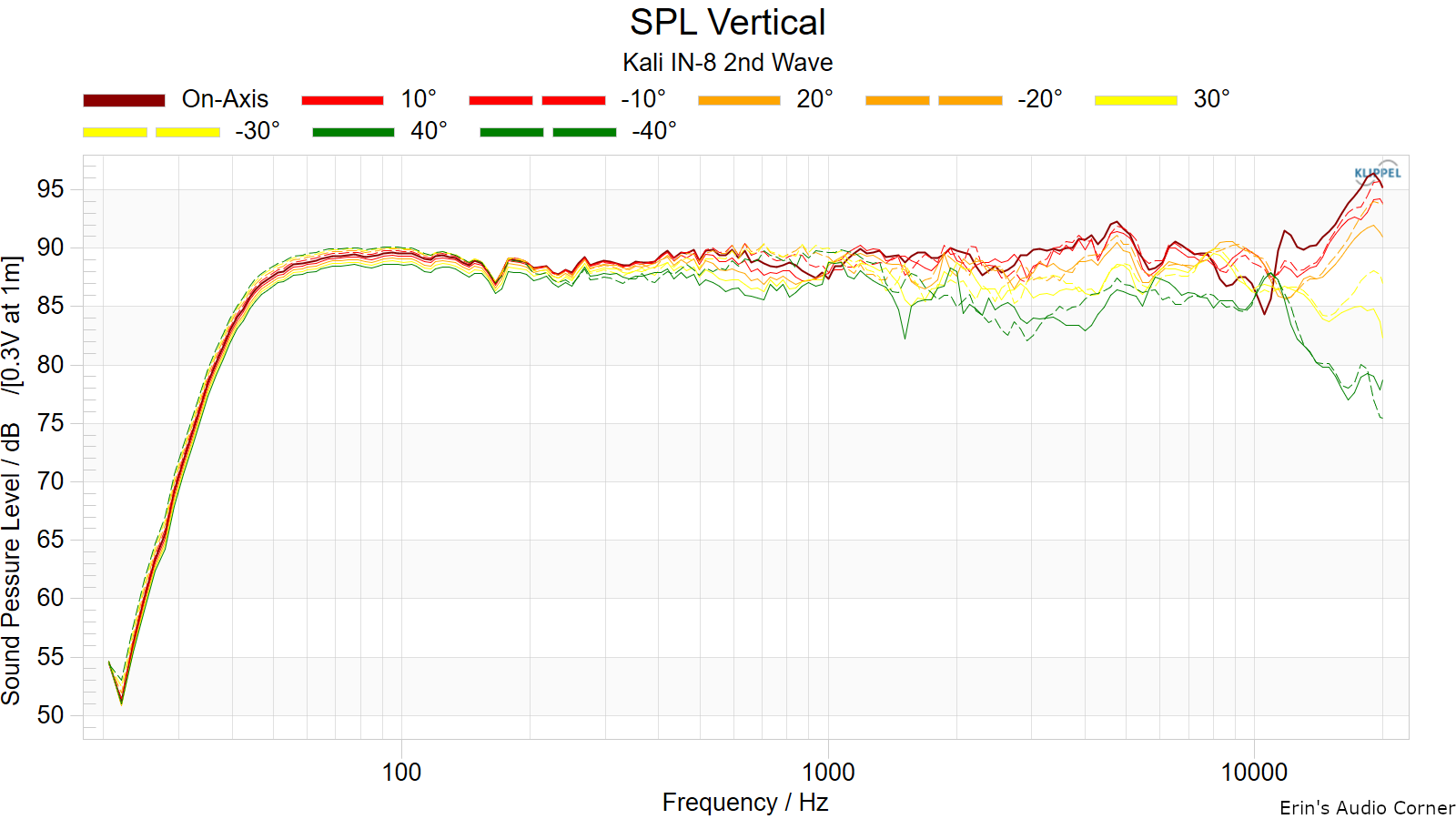

Vertical Frequency Response (0° to ±40°):

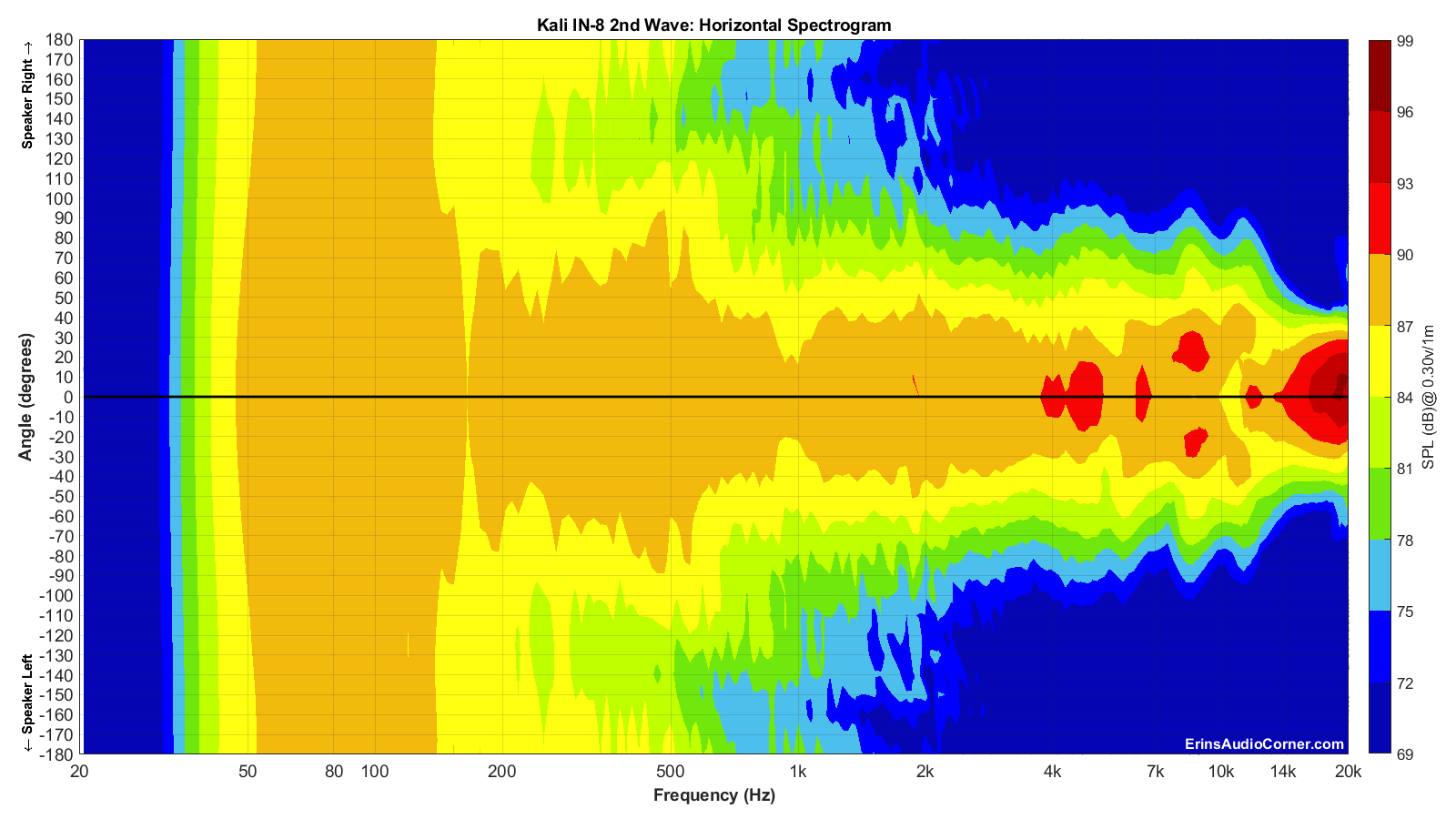

Horizontal Contour Plot (not normalized):

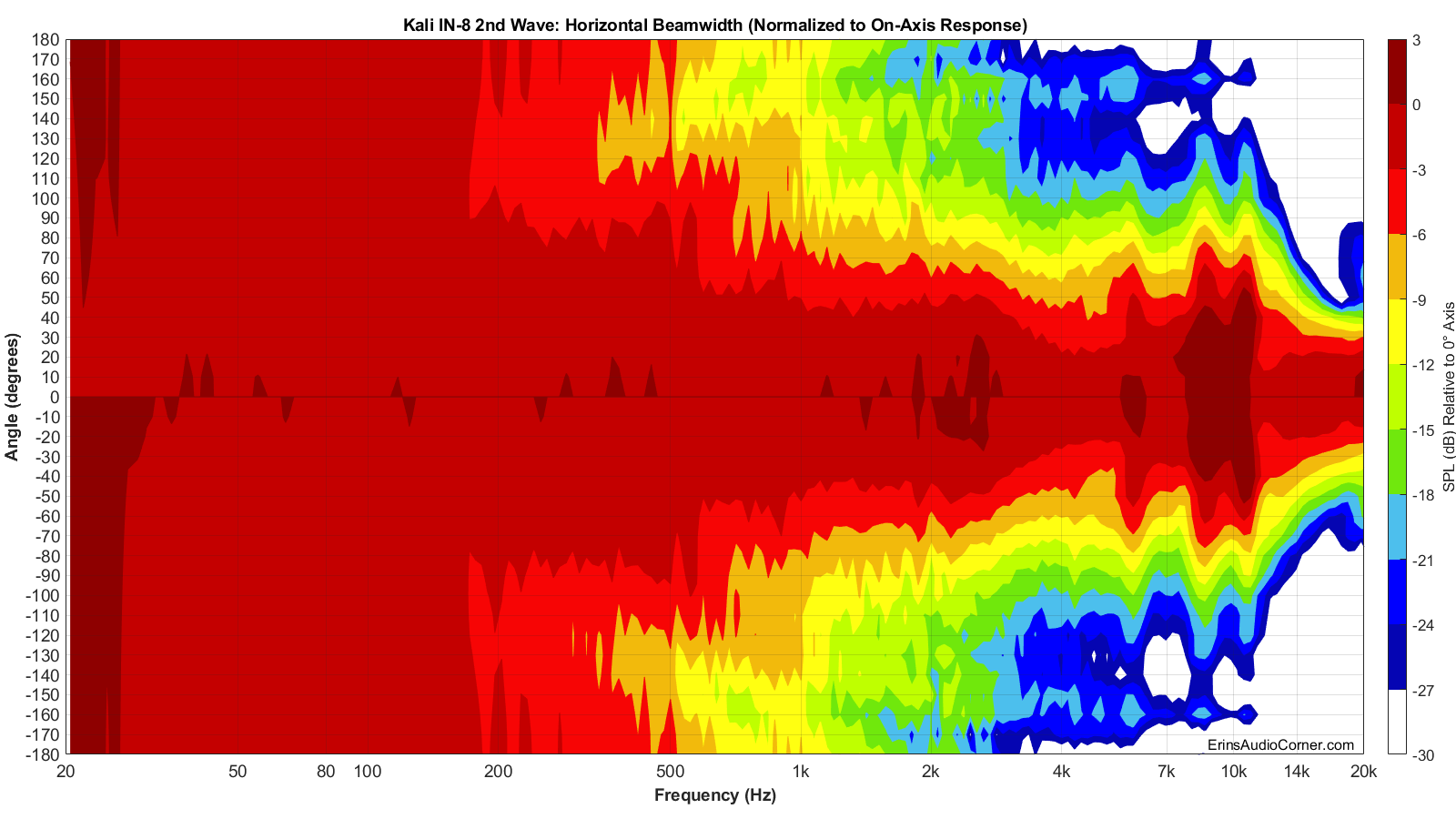

Horizontal Contour Plot (normalized):

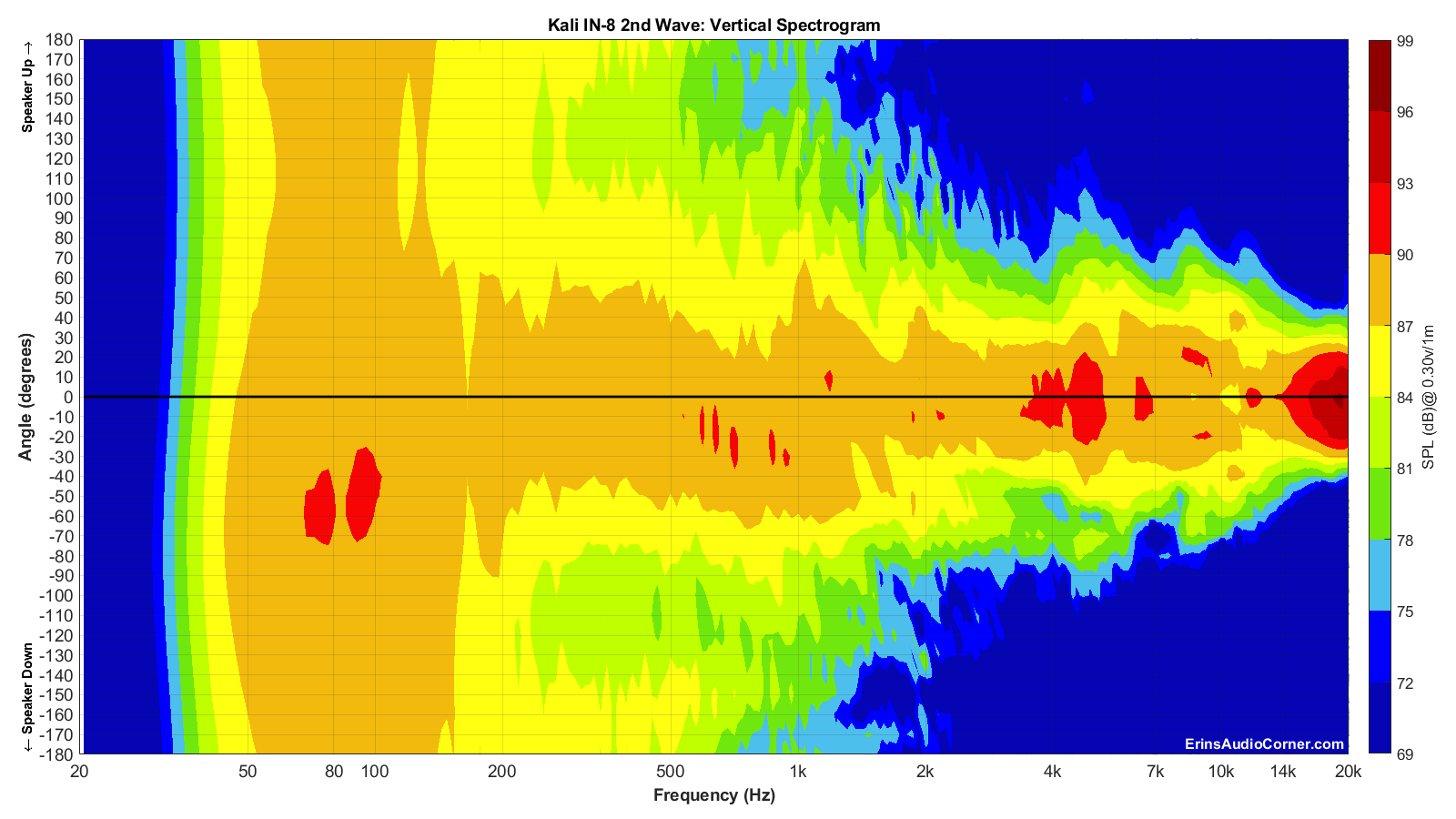

Vertical Contour Plot (not normalized):

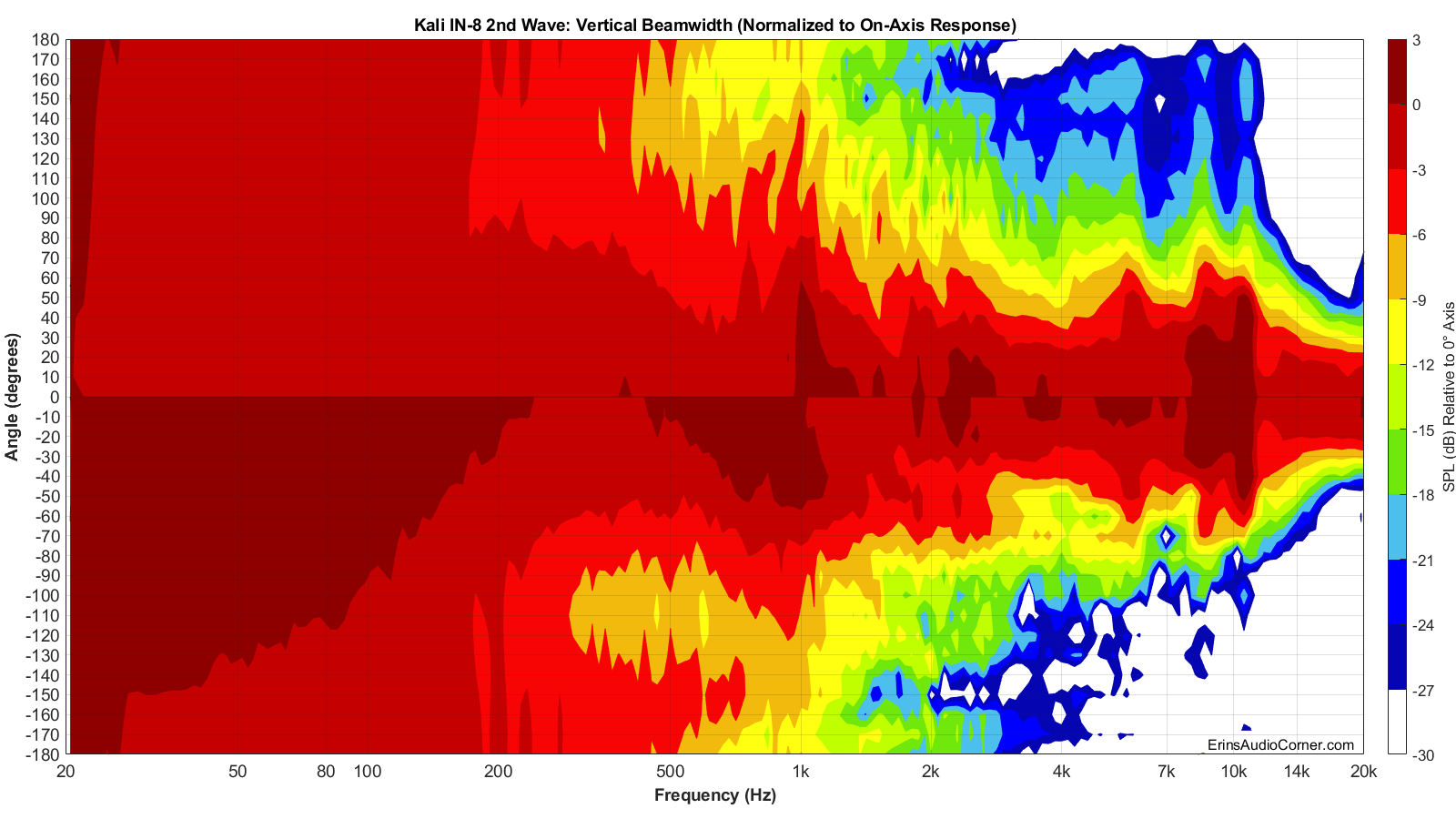

Vertical Contour Plot (normalized):




Additional Measurements

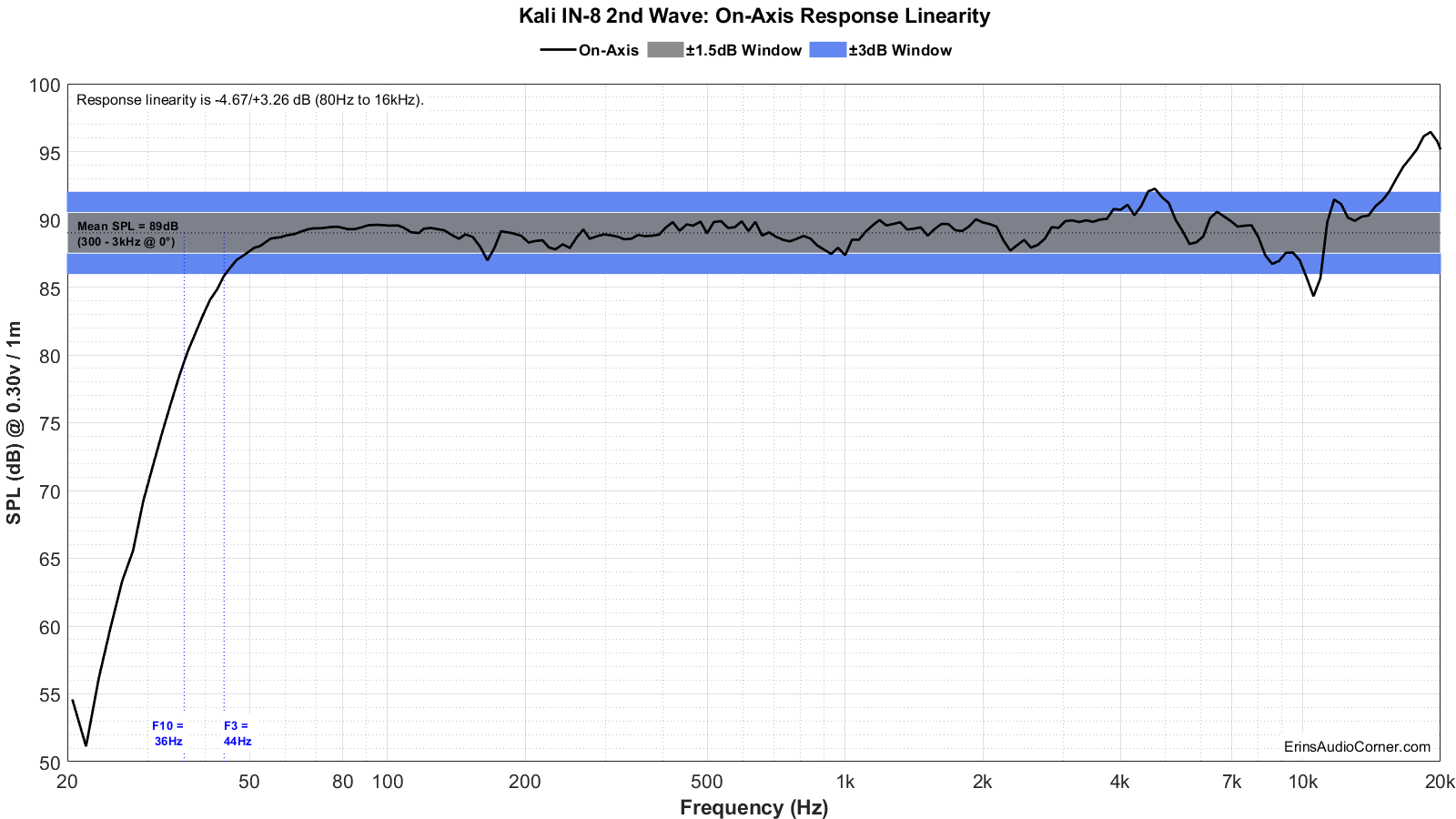

On-Axis Response Linearity

“Globe” Plots
These plots are generated from exporting the Klippel data to text files. I then process that data with my own MATLAB script to provide what you see. These are not part of any software packages and are unique to my tests.

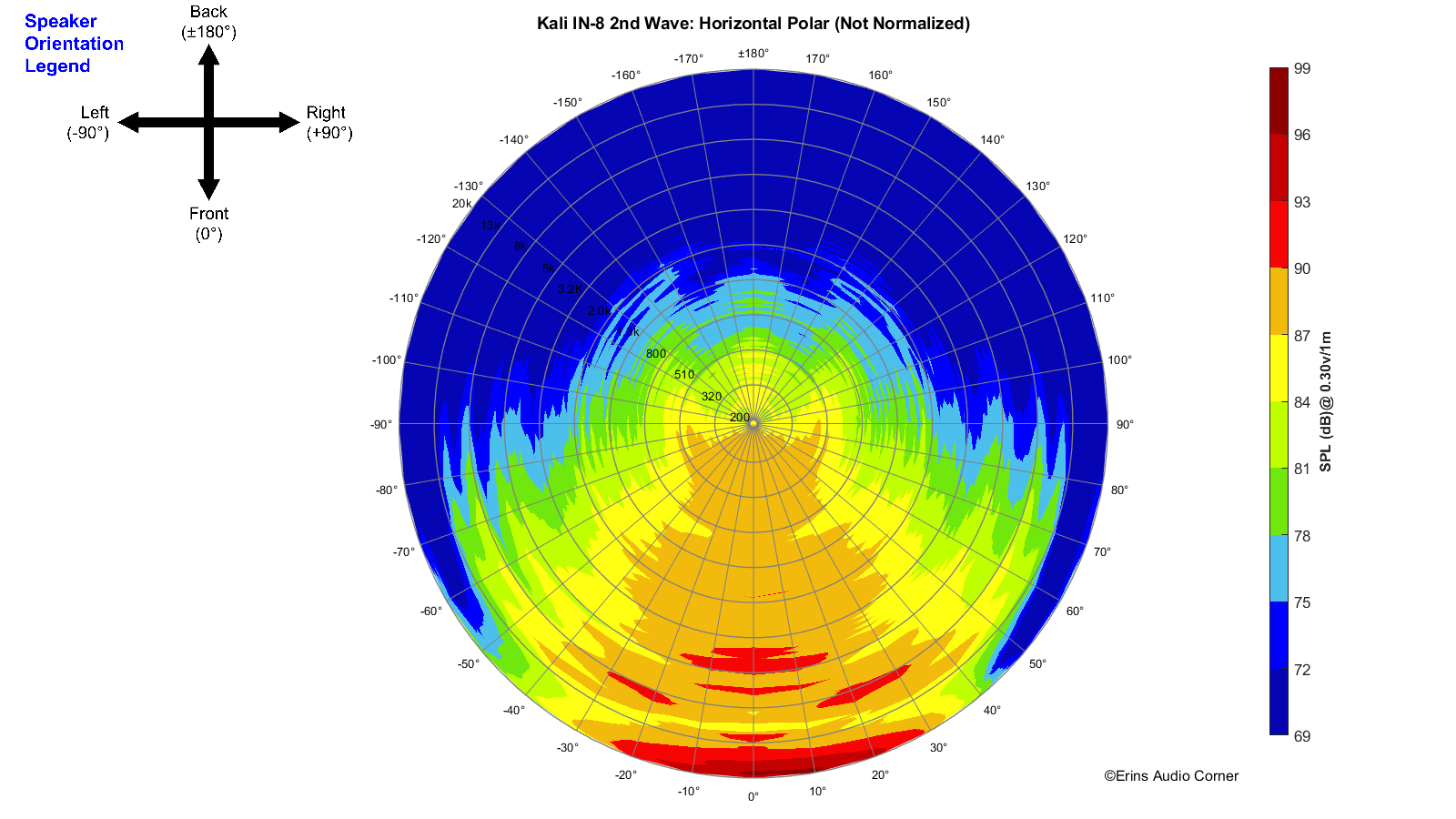

Horizontal Polar (Globe) Plot:
This represents the sound field at 2 meters - above 200Hz - per the legend in the upper left.

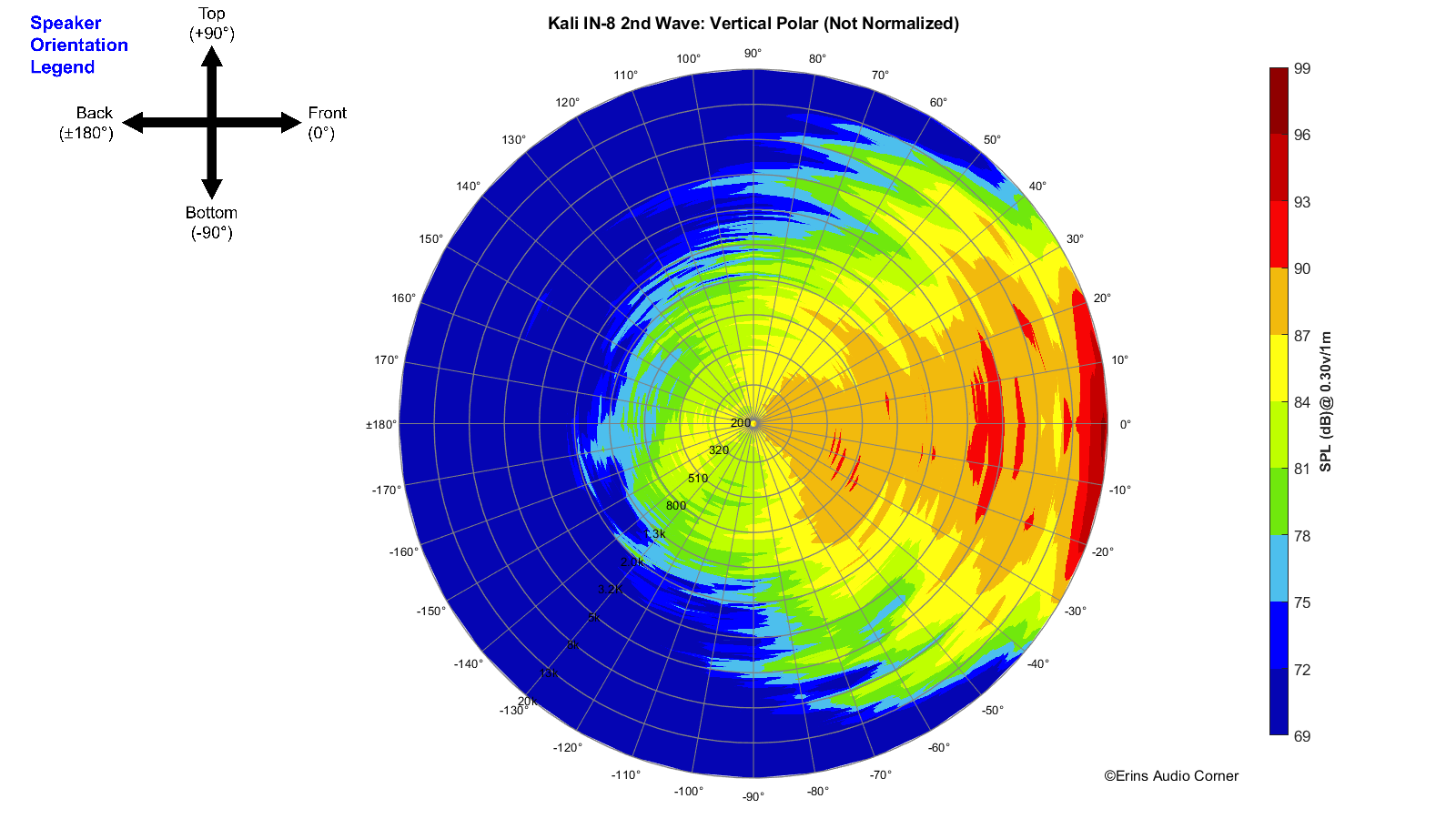

Vertical Polar (Globe) Plot:
This represents the sound field at 2 meters - above 200Hz - per the legend in the upper left.



Harmonic Distortion

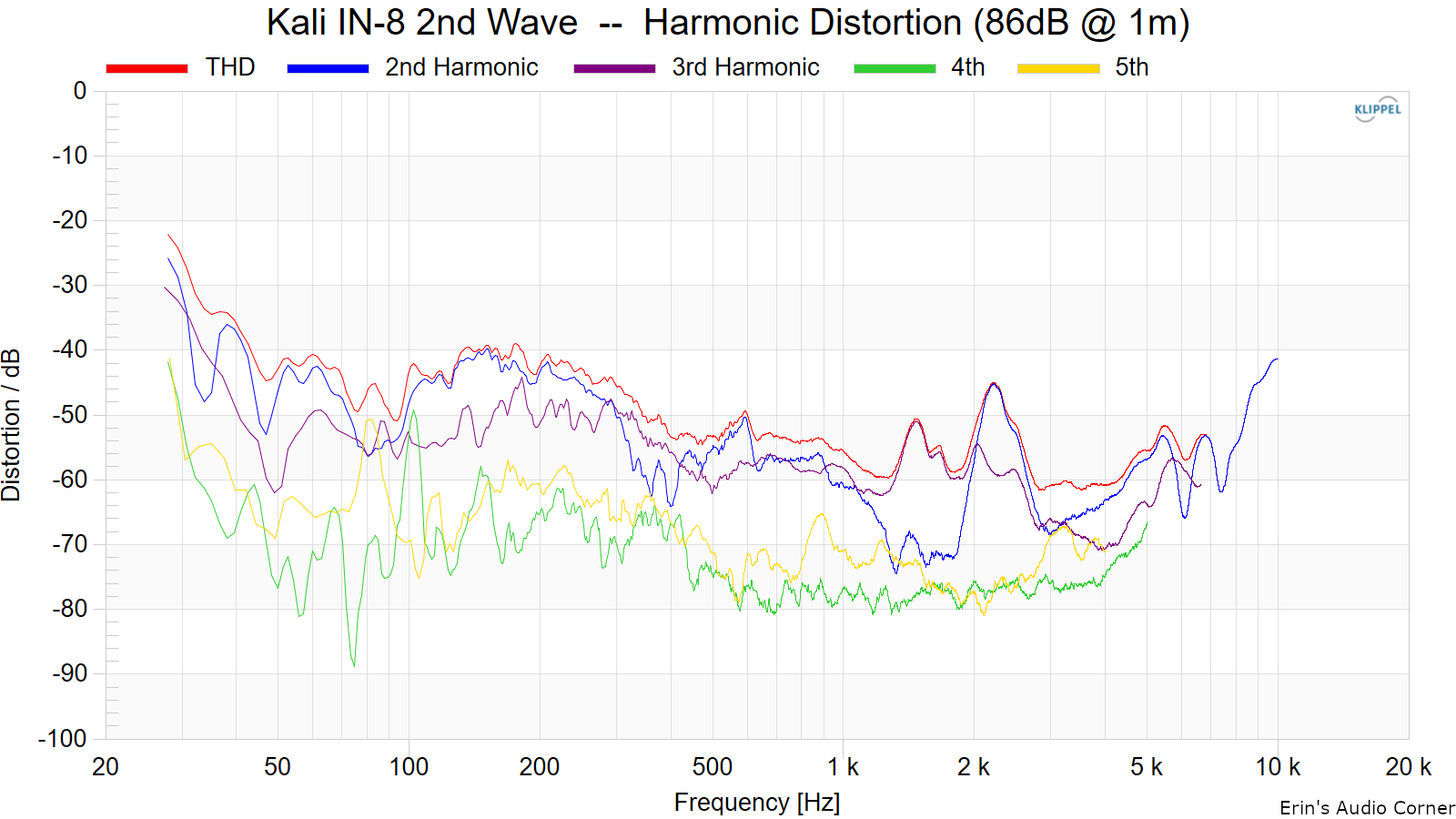

Harmonic Distortion at 86dB @ 1m:

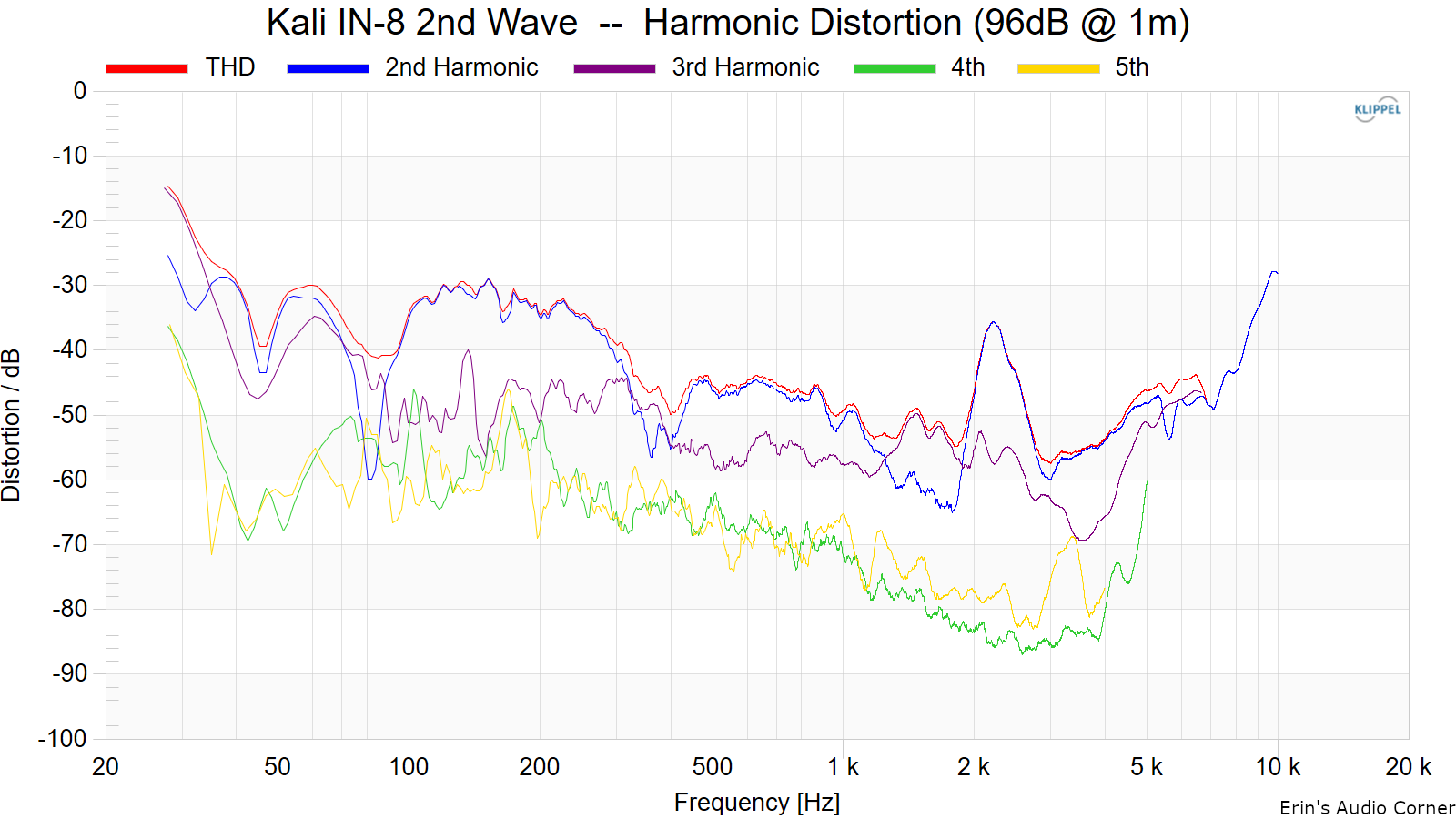

Harmonic Distortion at 96dB @ 1m:


Dynamic Range (Instantaneous Compression Test)
The below graphic indicates just how much SPL is lost (compression) or gained (enhancement; usually due to distortion) when the speaker is played at higher output volumes instantly via a 2.7 second logarithmic sine sweep referenced to 76dB at 1 meter. The signals are played consecutively without any additional stimulus applied. Then normalized against the 76dB result.
The tests are conducted in this fashion:
  1. 76dB at 1 meter (baseline; black)
  2. 86dB at 1 meter (red)
  3. 96dB at 1 meter (blue)
  4. 102dB at 1 meter (purple)
The purpose of this test is to illustrate how much (if at all) the output changes as a speaker’s components temperature increases (i.e., voice coils, crossover components) instantaneously.

Based on my results above, it is obvious the output is limited (via internal DSP) somewhere above the 96dB @ 1m output level.


Long Term Compression Tests
The below graphics indicate how much SPL is lost or gained in the long-term as a speaker plays at the same output level for 2 minutes, in intervals. Each graphic represents a different SPL: 86dB and 96dB both at 1 meter.
The purpose of this test is to illustrate how much (if at all) the output changes as a speaker’s components temperature increases (i.e., voice coils, crossover components).
The tests are conducted in this fashion:
  1. “Cold” logarithmic sine sweep (no stimulus applied beforehand)
  2. Multitone stimulus played at desired SPL/distance for 2 minutes; intended to represent music signal
  3. Interim logarithmic sine sweep (no stimulus applied beforehand) (Red in graphic)
  4. Multitone stimulus played at desired SPL/distance for 2 minutes; intended to represent music signal
  5. Final logarithmic sine sweep (no stimulus applied beforehand) (Blue in graphic)
The red and blue lines represent changes in the output compared to the initial “cold” test.

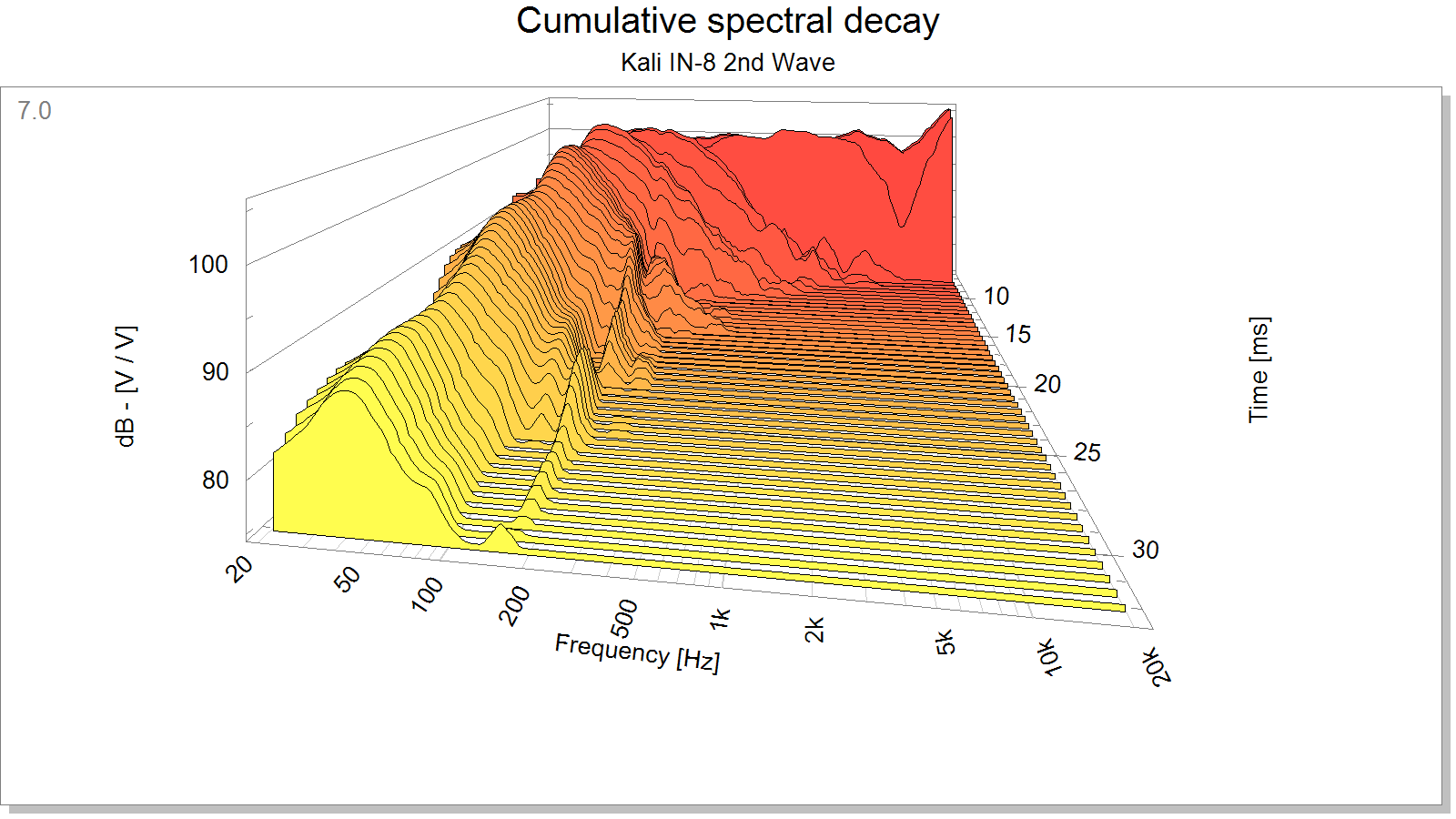

Cumulative Spectral Decay (CSD)

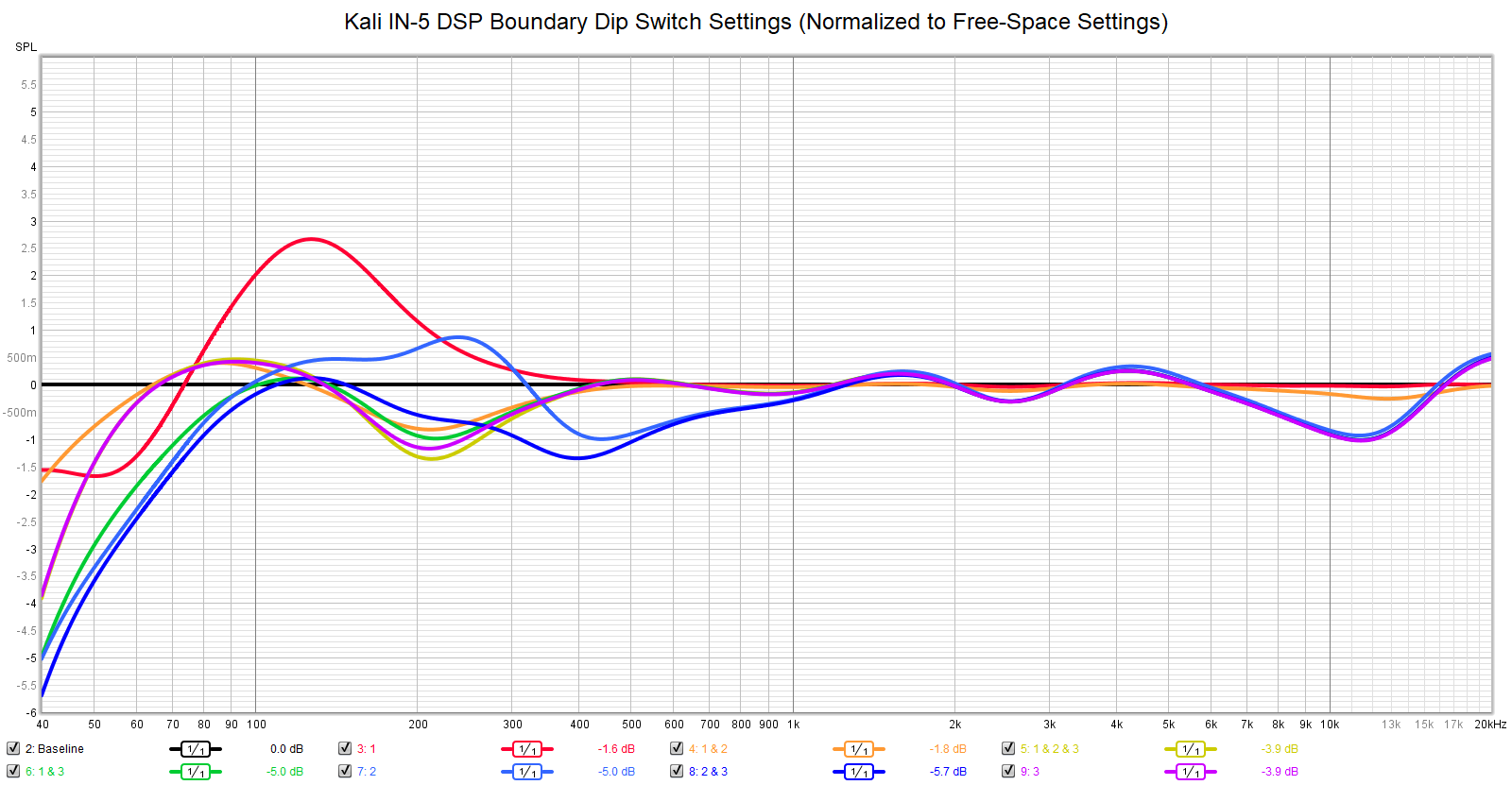

Boundary Settings
I tested this with the IN-5 and am providing it again here. I expect some bit of change from this model but likely not much (and possibly, not at all).
These speakers come with a set of pre-configured boundary settings that can be enabled easily via the dip switches on the back. Below is a close shot of the dip switches.


The dip switch combinations displayed above are labeled and plotted in the graphic below.



Comparison Against the Kali IN-8v1
  • Blue = IN-8v1
  • Black = IN-8v2

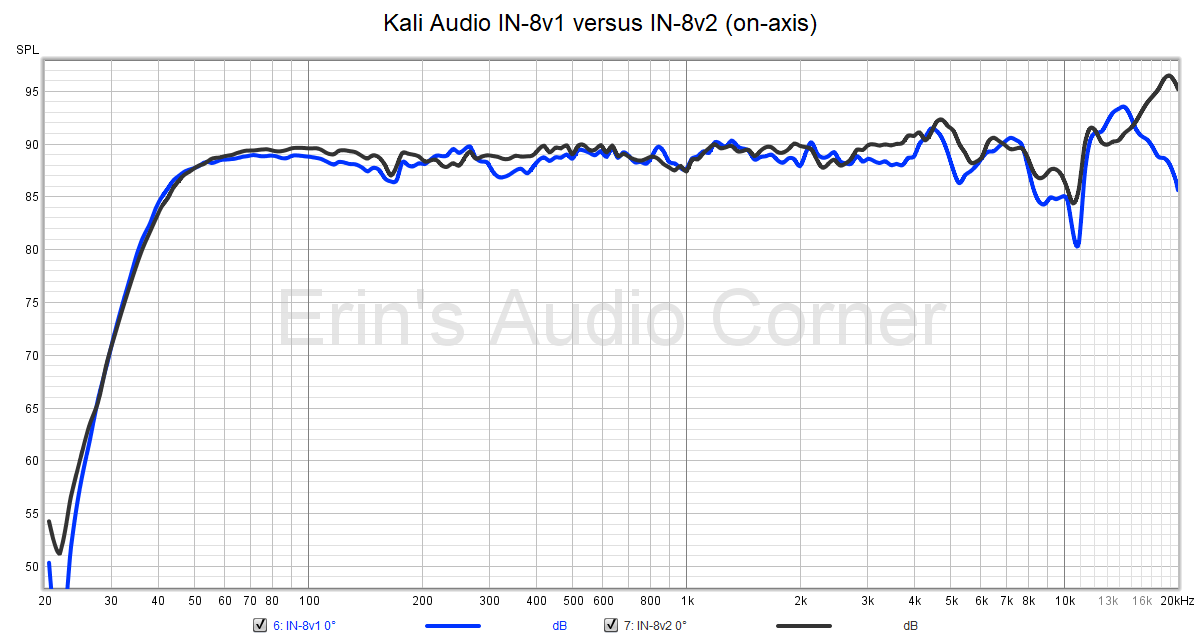

On-Axis Response:

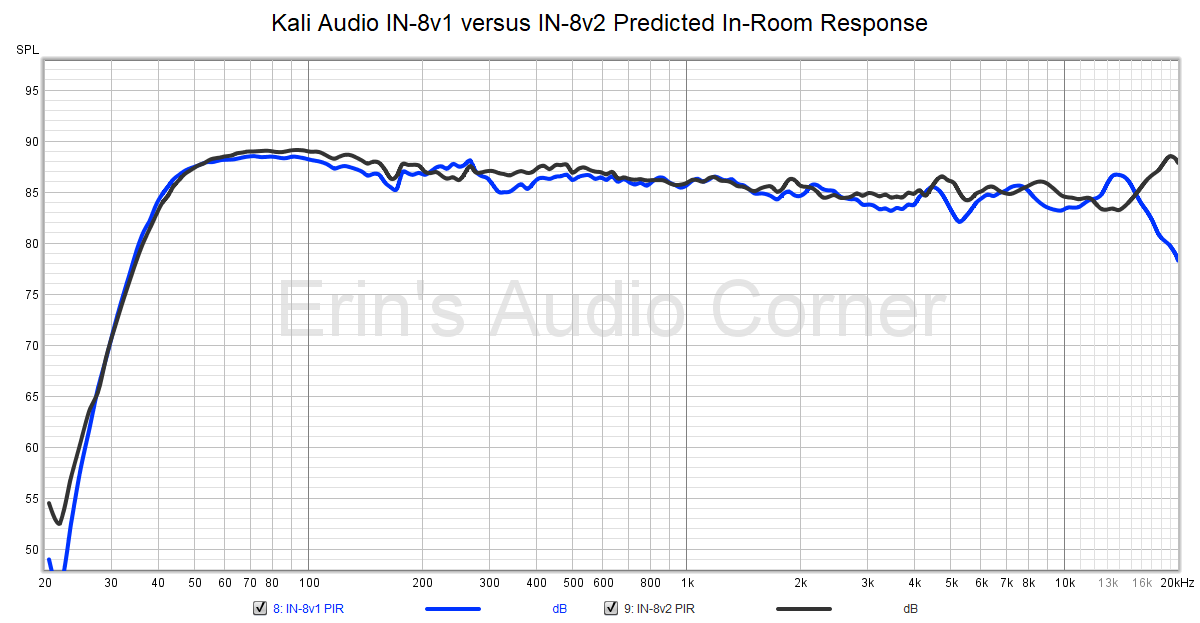

Estimated In-Room Response:


Parting / Random Thoughts
If you want to see the music I use for evaluating speakers subjectively, see my Spotify playlist.
  • Subjective listening was primarily at 1.5 meters but varied from 1 to 3 meters. Subjective listening was conducted at 80-95dB at this distance. Higher volumes were done simply to test the output capability in case one wants to try to sit further away.
  • The front port means you have more ability to move these speakers in to the prime spot for your needs. And thanks to the dip switches you have more ability to place the speakers where you need; whether free standing, near a wall or on a console.
  • The on-axis response isn’t flat but that’s the nature of coincident drivers. You’ll need to be off-axis a bit. Kali recommends 10°. My data jives with this, though, I would also recommend trying them off-axis by about 20°. Your mileage may vary. Just do not make the mistake of EQ’ing the on-axis response as this only alters the character of the sound in a negative way.
  • There is zero mechanical noise from these speakers (pops, over-excursion, vent noise) even at higher volumes. However, these are intended to be used as nearfield monitors in the 1-2 meter range. Going past this will naturally mean you’ll need more volume and if you are listening at absurd levels, you will certainly run in to the built-in limiter throttling the output as I showed in my linearity test.
  • There were only a couple of instances where I felt improvement was needed. One example was namely in the 4-5kHz region where - with some music (Lido Shuffle by Boz Skaggs, for example - the sound may jump out at you a bit, having a bit of “bite”. Using my EQ, I padded this down about 2dB and it really made a noticeable improvement. I think 1-2dB cut at 4.5kHz with even a graphic equalizer would make this a more pleasing speaker to most. More than 2dB takes the “edge” off instruments which dulls the sound.
  • Another area that occasionally stood out to me was in the 100-200Hz where some lower vocals tended to sound a bit “hot”. It was a rare occurrence but noticeable, nonetheless. I took the speaker back out to the garage and measured it for CSD (provided previously). The CSD indicates a lingering resonance at roughly 160Hz. It is interesting to note there is a dip in the SPINORAMA data at this frequency but yet a peak in the dynamic compression test. Hmph.
  • The bass is really nice and extends down to 50Hz easily. There are no bass boosts or issues in the bass region that call attention to themselves. Just neutral response that digs relatively deep.
  • Hiss: Practically nonexistent. This is a very noticeable improvement over the IN-8v1.
  • As for SPL levels, these are marketed as a near/mid-field speaker. My data shows the limiter kicking in somewhere above 96dB @ 1m. I had the output up to about 100dB at 1 meter to stress test with some Linkin Park and there were no mechanical issues that I could hear. I’d say that you could probably use these in the midfield in the lower 90’s pretty well but above that would be pushing it. Realistically, you shouldn’t be mixing music (or listening) above the 85dB range for long periods anyway. I do not know that I would recommend these for high volume listening more than 3 meters but for most volume levels and/or closer distances, a pair of these should be more than enough to satisfy your needs.

These are excellent speakers on a whole, to my ears. They are, in my opinion, an excellent value at the MSRP of only $800/pair. It is a great mixing/monitoring speaker and would do well in home audio applications (but be mindful of the output as the linearity changes at high output levels thanks to the built-in limiter). Frankly, I don’t know how Kali is able to produce such a nice speaker for such a reasonable price. I have no problem recommending the Kali IN-8 Second Wave.

In case you are wondering, no, Kali did not send me these speakers to review. They came from a viewer.


Support / Contribute
If you like what you see here and want to help me keep it going, please consider donating via the PayPal Contribute button below. https://www.erinsaudiocorner.com/contribute/

Last edited:

Matias

Major Contributor
Forum Donor
Joined
Jan 1, 2019
Messages
2,522
Likes
4,064
Location
São Paulo, Brazil
#3
Looks like a great speaker and an excellent value. Congrats, Kali! And thanks, Erin.


McFly

Addicted to Fun and Learning
Joined
Mar 12, 2019
Messages
561
Likes
886
Location
NZ
#4
Agreed. Exceptional value for a studio monitor. What the heck is that tweeter doin up at 10k on though? Having his own party, lucky its mostly likely inaudible.

Edit: Looks like a trait of the coaxial driver tweeter being in a little tunnel

Joined
Nov 18, 2020
Messages
321
Likes
419
Location
USA
#5
Kali may market the IN-5 as a near-field monitor but they clearly state in the user's manual that the IN-8 is "ideal for near-to-mid-field applications":

The IN-5 and IN-8 are designed to have a continuous output of 85 dB at 2.2 and 3.5 meters, respectively, with 20 dB of dynamic headroom. This makes the IN-5 ideal for most near-field monitoring applications, and the IN-8 ideal for near-to-mid-field applications.

https://static1.squarespace.com/sta...-Most-Recent-Latest-Users-Manual-May-2021.pdf

@hardisj, it isn't entirely clear from your review if you agree with or dispute Kali's claim that the IN-8 can produce continuous output of 85 dB with 20 dB of dynamic headroom (for 105 dB peaks) at up to 3.5 meters.

Last edited:
OP
hardisj

hardisj

Major Contributor
Reviewer
Joined
Jul 18, 2019
Messages
2,487
Likes
11,469
Location
North Alabama
Thread Starter #7
Looks excellent! Thank you for your reviews @hardisj. Seems your'e a bit like me and sometimes review in batches?
Kind of. I think it's more that I just sit down and write up the results in batches. I reviewed some of these speakers last week. Just trying to get the data out now.

Joined
May 30, 2021
Messages
16
Likes
17
#10
Thanks for your review.
From your analysis, these are very respectable results at this price range, and really not too much to complain about in every aspect.
Truly a value leader.
The 160Hz artifact is interesting, could be an artifact from the new electronics?


pierre

Addicted to Fun and Learning
Forum Donor
Joined
Jul 1, 2017
Messages
591
Likes
1,256
Location
Switzerland
#11
Pref score would be 5.3 (w/sub 7.2).

Since the speaker is pretty good, EQ is not that useful. With the generated following EQ, score will for up to 6.0. EQ is mostly trying to fix small oscillations (High Q, low gain) that are not very audible and may change from one speaker to another. So I would advise no EQ for this one.

Code:
EQ for Kali IN-8v2 computed from ErinsAudioCorner data
Preference Score 5.3 with EQ 6.0
Generated from http://github.com/pierreaubert/spinorama/generate_peqs.py v0.8
Dated: 2021-06-28-05:36:11

Preamp: -0.9 dB

Filter  1: ON PK Fc  5945 Hz Gain -2.71 dB Q 0.48
Filter  2: ON PK Fc  5670 Hz Gain +2.55 dB Q 8.92
Filter  3: ON PK Fc   505 Hz Gain -0.96 dB Q 3.00
Filter  4: ON PK Fc   944 Hz Gain +1.36 dB Q 9.36
Filter  5: ON PK Fc  1910 Hz Gain -1.02 dB Q 12.00
Filter  6: ON PK Fc 10762 Hz Gain +1.94 dB Q 12.00
Filter  7: ON PK Fc  9004 Hz Gain -0.68 dB Q 12.00
Filter  8: ON PK Fc  4804 Hz Gain -0.92 dB Q 12.00
Filter  9: ON PK Fc  1239 Hz Gain -0.92 dB Q 6.61
Filter 10: ON PK Fc  2597 Hz Gain +0.86 dB Q 3.53
Filter 11: ON PK Fc  7257 Hz Gain +0.67 dB Q 11.91
Filter 12: ON PK Fc  2096 Hz Gain -0.51 dB Q 12.00
Filter 13: ON PK Fc  1636 Hz Gain -0.33 dB Q 12.00
Filter 14: ON PK Fc   333 Hz Gain +0.45 dB Q 12.00
Filter 15: ON PK Fc  4289 Hz Gain +0.96 dB Q 12.00
Filter 16: ON PK Fc  6439 Hz Gain -0.33 dB Q 12.00
Filter 17: ON PK Fc  4633 Hz Gain -0.50 dB Q 12.00
Filter 18: ON PK Fc  1401 Hz Gain -0.26 dB Q 12.00
Filter 19: ON PK Fc  1169 Hz Gain -0.25 dB Q 12.00
Filter 20: ON PK Fc   417 Hz Gain -0.50 dB Q 12.00
Here are Erin's data + EQ:


Last edited:

pierre

Addicted to Fun and Learning
Forum Donor
Joined
Jul 1, 2017
Messages
591
Likes
1,256
Location
Switzerland
#14
Last edited:

daftcombo

Major Contributor
Forum Donor
Joined
Feb 5, 2019
Messages
3,383
Likes
3,333
#16
Thanks a lot Erin! Two great reviews in a few hours.

This part is not good news:
Another area that occasionally stood out to me was in the 100-200Hz where some lower vocals tended to sound a bit “hot”. It was a rare occurrence but noticeable, nonetheless. I took the speaker back out to the garage and measured it for CSD (provided previously). The CSD indicates a lingering resonance at roughly 160Hz. It is interesting to note there is a dip in the SPINORAMA data at this frequency but yet a peak in the dynamic compression test. Hmph.

OP
hardisj

hardisj

Major Contributor
Reviewer
Joined
Jul 18, 2019
Messages
2,487
Likes
11,469
Location
North Alabama
Thread Starter #17
Thanks a lot Erin! Two great reviews in a few hours.
Your welcome. FWIW, I actually posted (4) reviews. Bose Bluetooth speaker comparison, apple homepod mini, this one and the ELAC UBR62. :)


This part is not good news:
It really isn't bad. I mean, out of a 10-scale of noticeability, for me it's like a 3. Which means for pretty much the rest of the world it would be a -5. Because, I swear, I always seem to hear these lower frequency resonances and people say "I don't hear it". *shrug*


daftcombo

Major Contributor
Forum Donor
Joined
Feb 5, 2019
Messages
3,383
Likes
3,333
#18
It really isn't bad. I mean, out of a 10-scale of noticeability, for me it's like a 3. Which means for pretty much the rest of the world it would be a -5. Because, I swear, I always seem to hear these lower frequency resonances and people say "I don't hear it". *shrug*
I sold my pair of 305p mkII after seing your review because, to me, there was a problem in the 100-200Hz area and you confirmed it.

So, I might be too sensible there too. And when you hear something, it is impossible to un-hear it.

Did you notice something similar with the IN-5?

OP
hardisj

hardisj

Major Contributor
Reviewer
Joined
Jul 18, 2019
Messages
2,487
Likes
11,469
Location
North Alabama
Thread Starter #19
I sold my pair of 305p mkII after seing your review because, to me, there was a problem in the 100-200Hz area and you confirmed it.

So, I might be too sensible there too. And when you hear something, it is impossible to un-hear it.

Did you notice something similar with the IN-5?

I didn't hear it with the IN-5.

The funny thing about hearing the resonance in this speaker was it was the last song I was shuffling through and I turned around to the computer right when I heard it. I thought "what was that", and listened to it again at that point. Heard it again. Went through a few more tracks to listen on purpose and only a couple showed it. I mean, it was really barely noticeable. But when I plotted the CSD I could see what I was hearing. I didn't try to EQ it... maybe you can. I would be surprised if more than 90% of listeners ever heard it. But like you said, once you do, it's impossible to ignore. Luckily it happens rarely. Nowhere near as bad as the JBL 305P mk2 did, so I can still recommend it. And I would still own the speaker if it were in my wheelhouse/need.


Honken

Active Member
Joined
Mar 10, 2020
Messages
204
Likes
272
Location
Scania
#20
Thanks for the review, this might be what finally pushes me purchase them. I've been eyeing them and the UBR62 for a while now - if only to test what coaxial speakers would sound like in my room and well, of the two this looks more attractive performance wise.

It's unfortunate that that they can't play louder, but perhaps when crossed to a sub the limited tweeter output isn't much of an issue in practice?
