Onkyo TX-RZ50 Review (Home Theater AVR)

Rate this product:

  • 1. Poor (headless panther)

    Votes: 86 35.5%
  • 2. Not terrible (postman panther)

    Votes: 97 40.1%
  • 3. Fine (happy panther)

    Votes: 45 18.6%
  • 4. Great (golfing panther)

    Votes: 14 5.8%

  • Total voters
    242

amirm

Founder/Admin
Staff Member
CFO (Chief Fun Officer)
Joined
Feb 13, 2016
Messages
39,148
Likes
174,996
Location
Seattle Area
This is a review and detailed measurements of the Onkyo TX-RZ50 9.2 8K THX Certified AV Receiver. It was purchased new by a member and drop shipped to me for testing. It costs US $1,399.
Onkyo TX-RZ50 Review Surround Sound Home Theater Processor Dolby.jpg

Looks like all AVR companies are trying to break the mold of just dual rotary controls to something different. While I appreciate the additional buttons and knobs here, they are impossible to see in the dark as far as labels. Here is the back panel:

Onkyo TX-RZ50 Review Back Panel 8k 4K Surround Sound Home Theater Processor Dolby.jpg

I appreciated the quick start-up and the high resolution of the on-screen display. It was also nice of it to tell me at the end of setup that there was a new firmware. What I didn't appreciate was it not recognizing my hardwired Ethernet cable requiring a second try even though I had it plugged it a while back. Update was slow which I could tolerate but not finishing with "Update Complete" (or something like it) and then sitting there non-functional! You had to power cycle it to get it to work.

The distinguishing aspect of this AVR is adoption of Dirac by a mass market company like Onkyo in their AVR. Dirac room EQ should perform far better than simpler scheme in the AVR (although I have not tested either in this instance). There is a nice app to control it all as well so you don't need a computer if you don't want to have one (and can use AVR's own mic).

Note: the follow set of measurements are expanded from my normal set which is already quite extensive for AVRs. If you are new to these reviews, don't be taken back. Most of them are for the diehard measurement folks in the forum. :) I will summarize everything in the conclusion section.

Onkyo TX-RZ50 DAC Measurements
As usual I start with the important bit which is how well the AVR converts digital audio samples to analog. Pure mode was selected for all the measurements (see later in the review on effect of this setting). Let's start with S/PDIF:

Onkyo TX-RZ50 Measurements SDPIF Home Theater Processor Dolby.png


As usual I set the volume control such that we get 2 volt output which required setting it to 84.5. Unit displays "Reference" at 82 by the way but at that level, you won't be able to drive all amplifiers to their full power rating. Let's now switch to HDMI:


Onkyo TX-RZ50 Measurements HDMI Home Theater Processor Dolby.png


General performance is the same but now we have symmetrical spikes around our main tone which indicates low frequency jitter component. This is unfortunate. Putting SINAD which is the relative sum of noise and distortion in context we get slightly above average rating:

Best AVR DAC Review.png


Since the unit can output more than 2 volts, let's see the full range of output vs performance:

Onkyo TX-RZ50 Measurements HDMI THD+N vs Level Home Theater Processor Dolby.png

Good to see you have headroom up to 3.5 volt if you need it to drive a low gain amplifier.

Measuring dynamic range we get:
Onkyo TX-RZ50 Measurements HDMI Dynamic Range Home Theater Processor Dolby.png


Multitone test shows jitter components we saw in the dashboard which I ignored for my distortion-free range computation:
Onkyo TX-RZ50 Measurements HDMI Multitone Home Theater Processor Dolby.png


Oddly when I ran my specific jitter test, it was S/PDIF which fell behind HDMI:

Onkyo TX-RZ50 Measurements HDMI Jitter Home Theater Processor Dolby.png


Objectively neither performance is proper but from audibility point of view, spikes are low enough as to not matter.

Linearity was "good enough" for the class:

Onkyo TX-RZ50 Measurements HDMI Linearity Home Theater Processor Dolby.png


I was pleasantly surprised to see a choice of filters although you only have a choice of two (and "auto" which seems to set to Sharp):

Onkyo TX-RZ50 Measurements HDMI Filter Home Theater Processor Dolby.png


Notice the typical roll off in the audible band with slow filter so my choice would be the sharp one. The filter choice naturally makes a difference in our THD+N versus frequency:

Onkyo TX-RZ50 Measurements HDMI THD+N vs Frequency Home Theater Processor Dolby.png


As you see the slow filter does better but I think that is because it is attenuating the in-band response, reducing the noise and power of harmonics. Either way though, this is not anything to write home about.

While we are here, let's see the effect of Pure mode:

Onkyo TX-RZ50 Measurements HDMI Pure vs Non-Pure Home Theater Processor Dolby.png


Odd to see that low frequency rise in distortion.

Base Management and Pure Mode Investigation
These AVRs are opaque when it comes to what they do when they activate their digital processing and accompanying resampling. So I decided to investigate with frequency response measurement using 192 kHz sampling. This rate is usually outside of unit's internal processing rate so if there is some, we will see its effect. Let's see what happens when we turn Pure mode on and off:

Onkyo TX-RZ50 Measurements HDMI DAC Frequency Response Home Theater Processor Dolby.png


It is clear that turning ON the Pure mode disables all internal resampling giving us almost full bandwidth of 96 kHz which we would expect. Turn Pure mode off and response gets truncated sharply. My guess is that internal sample rate is 44.1 or likely 48 kHz.

I then configured an 80 Hz high-pass filter for the fronts and measured its effect:

Onkyo TX-RZ50 Measurements HDMI Bass Management Home Theater Processor Dolby.png


As soon as you enable bass management, resampling is forced on you (blue curve). This is a shame as bass processing should be doable at higher sample rate. I guess the pipeline is all or nothing when it comes to processing. Fortunately you have the option of using Pure mode but that defeats bass management so no bookshelf speaker may apply. You have to use full range speakers.

Notice that this run in Pure mode (red and green) has a spike. This would come and go depending on settings of the frequency response sweep (green spike). It may be a bug or ringing of the resampling filter. Onkyo should investigate and fix this. Fortunately it is at 60 kHz so not an audible concern but maybe it pushes some external amp into oscillation.

Onkyo TX-RZ50 Amplifier Measurements
My goal here is to figure out how good the internal amplifier is relative to an external one. This is hard to do as we have to tease out the transparency level of various ways of feeding the amplifier. Let's start with analog input by adjusting our gain to be 29 dB:

Onkyo TX-RZ50 Measurements Aanlog In Pure Home Theater Processor Dolby.png


If you don't use the Pure mode -- which is probably how most of you use it -- you will lose performance:

Onkyo TX-RZ50 Measurements Aanlog In Non-Pure Home Theater Processor Dolby.png


Sadly that is in the form of rising noise floor. Going with the better of the two, the ranking is not great and well below competition:


Best AVR Amplifier Review.png


Some of you have been looking at using external DACs as a way to improve performance of these AV Products. There, you would be feeding the amplifier up to 2 volts in unbalanced mode so I decided to test that condition. To get to the same 5 watt output, I cranked the volume down until I achieved that output:


Onkyo TX-RZ50 Measurements Aanlog In Pure 2 Volt In Home Theater Processor Dolby.png


Noise floor goes down enough to buy us 3 dB more SINAD. Let's do the same with HDMI input, i.e. using internal DAC:


Onkyo TX-RZ50 Measurements HDMI In Pure Home Theater Processor Dolby.png


So you could do better with external DAC but it is likely not worth the hassle as the amp itself doesn't have much more to give.

Crosstalk was below average:
Onkyo TX-RZ50 Measurements Aanlog In Pure Crosstalk Home Theater Processor Dolby.png


In Pure mode, frequency response is extended and nice:
Onkyo TX-RZ50 Measurements Aanlog In Pure Frequency Response Home Theater Processor Dolby.png


And here is our multitone test:

Onkyo TX-RZ50 Measurements Aanlog In Pure Multitone Home Theater Processor Dolby.png


Disappointing.

Onkyo TX-RZ50 Power Amplifier Testing
This testing cost me anther hour of sleep (went to bed near 4:00 am!). I started with measuring 4 ohm power as I usually do and got ridiculously low level of output before clipping. I checked all the settings, set the amp to 6 vs 4 ohm and back, power save mode off, etc. but nothing would fix it. On a hunch, I disconnected the power cable, waited a bit and powered the unit back on. I got full power twice but then it limited:


Onkyo TX-RZ50 Measurements Aanlog In Pure Power 4 ohm After Restart Three Runs ohm Home Theate...png


Clearly there is some monitoring going on internally causing the amplifier to go into ECO/power limiting mode. With 8 ohm load, I didn't see this problem:
Onkyo TX-RZ50 Measurements Aanlog In Pure Power 8 ohm Home Theater Processor Dolby.png


Given that vast majority of speakers today are 4 ohm or even lower, this is a serious problem. I could understand it if the amp was cooking but it was quite cool running with the upper fan off. Traditionally this mode would be triggered if you set the amplifier to 4 ohm mode but per above, this did not have an effect here.

Given this problem I could not run my max and peak power. But did run my frequency sweeps post a power cable removal:
Onkyo TX-RZ50 Measurements Aanlog In Pure Power 4 ohm vs frequency Home Theater Processor Dolby.png


Notice how it pulled power back half way through the test. I am hoping this is microprocessor controlled so can be fixed with a firmware upgrade. This is a showstopper bug as far as I am concerned.

Conclusions
The inclusion of proper Room EQ in mid-priced AVRs is major news indeed. Alas, my job here is to characterize the performance of the platform itself and the news there is not good. The amplifier has serious power limiting "feature" and even without it, it is not competitive with other products out there. Company can and should do better than this. I am confident a clean up pass with measurements can produce a better product. For too long review sites have done such a cursory job here as to allow these practices to continue. Hopefully that era is behind us. I know a number of companies are taking this domain seriously like the companies did in 1970s. So if Onkyo doesn't get with the program, it will fall behind.

The morass of pipeline processing also needs documentation and this is a message for the entire industry. Don't leave the customer in the dark and lead to dissatisfaction when they read an analysis like mine. Up the processing capability and make it a feature to perform all the functions at the native sample rate of the content. I think people will pay a few hundred dollars more to get this.

Anyway, I can't recommend the Onkyo TX-RZ50. If they fix the power handling issue, they may then get a marginal recommendation from me.

-----------
As always, questions, comments, recommendations, etc. are welcome.

Any donations are much appreciated using: https://www.audiosciencereview.com/forum/index.php?threads/how-to-support-audio-science-review.8150/


Xulonn

Major Contributor
Forum Donor
Joined
Jun 27, 2018
Messages
1,738
Likes
5,685
Location
Boquete, Chiriqui, Panama
Perhaps they should forget the "legacy" component video input and pay a bit more attention to the power-limiting functions...:rolleyes:


peng

Major Contributor
Forum Donor
Joined
May 12, 2019
Messages
3,004
Likes
2,512
Amir, thank you for another AVR review. Do you have a good RCA to XLR cable now to try and test the combo of AVR pre out + your external XLR input only power amp? It would really be a good test because a lot of us (not me) do use our AVRs that way.

OP
amirm

amirm

Founder/Admin
Staff Member
CFO (Chief Fun Officer)
Joined
Feb 13, 2016
Messages
39,148
Likes
174,996
Location
Seattle Area
Do you have a good RCA to XLR cable now to try and test the combo of AVR pre out + your external XLR input only power amp?
I don't think I ever built one. Is there one off-the-shelf?


TallDan

Member
Joined
Jan 14, 2022
Messages
13
Likes
24
Well, this is disappointing. I didn’t expect world class performance, but was hoping for something a little more competitive. Combined with some minor problems I’ve had, I may look into returning mine.

@amirm Did you have any contact with onkyo on this? I’m be curious what response they would have.


Prana Ferox

Senior Member
Joined
Feb 6, 2020
Messages
452
Likes
891
Location
NoVA, USA
This was looking tolerable for me until I got to the power limiting.

One reason vendors got away from the (unreadable here anyway) input-specific buttons on the front panel is the folks still using these analog inputs are almost certainly relabeling them anyway. How many people are buying a $1400 amp and plugging a separate CD player and DVD in? Or running analog sound back from the TV and separate cable box?

For that matter, how many customers are plugging in AM and FM antennae in TYOOL 2022? At least the component ins let you still run a Nintendo Wii.


valerianf

Senior Member
Joined
Dec 15, 2019
Messages
431
Likes
251
Location
Los Angeles
The output power stage of the RZ50 is a deception.
Clearly Onkyo needs to rework it to get a better S/N ratio and to increase the power at low load.
Planning to get a RZ50, I will wait for another one (RZ60?).


mhardy6647

Master Contributor
Joined
Dec 12, 2019
Messages
6,350
Likes
12,976
I don't think I ever built one. Is there one off-the-shelf?

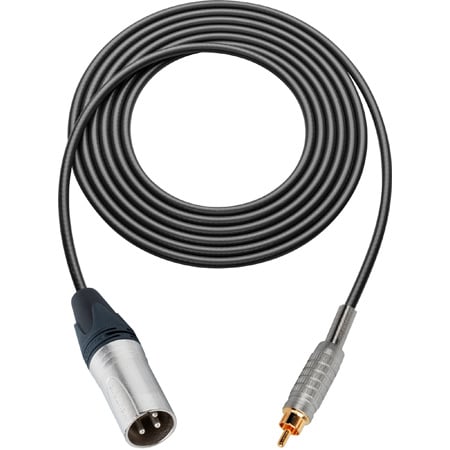

I have bought and used these to hook some pretty disparate components together when COVID-19 forced us to Zoom (only) services at our church back in 2020. I thought they were just dandy. I presume they are also available as RCA female to XLR male, as well.



dlaloum

Major Contributor
Joined
Oct 4, 2021
Messages
1,373
Likes
886
Disappointing - however I am not overly concerned with the power amplifier issues, as I was planning on running external amps, due to my speakers being quite a difficult load....
The issues with Jitter are a bit disappointing - and there it cannot easily be remedied externally.

Still going to give it a try though - I think Dirac might be a game changer. (I have ordered the Integra DRX 3.4... should be same pre, with fewer channels, and lower power amps)

And if unhappy with the results - I will trade in for something like the Denon X3700/4700 -


capt.s

Member
Joined
Jan 23, 2020
Messages
70
Likes
49
As soon as you enable bass management, resampling is forced on you (blue curve). This is a shame as bass processing should be doable at higher sample rate. I guess the pipeline is all or nothing when it comes to processing. Fortunately you have the option of using Pure mode but that defeats bass management so no bookshelf speaker may apply. You have to use full range speakers.
I'm so glad you tested for this..... and it's disappointing! I have a Denon AVR-X4400H in a mixed use system, and for 2 channel listening, I use Dirac Live/Processor on the PC and send 192kHz to the AVR in Pure Direct Mode to full range speakers. I understand that processor intensive room correction warrants a resample to 48kHz but it'd be nice to utilize bass management for 2 channel+sub without the resolution hair cut. I've asked Sound United and they insist it doesn't but I'd be surprised. It'd be great to see you do this test on one of their products. Do you have any in the pipeline?


edechamps

Addicted to Fun and Learning
Forum Donor
Joined
Nov 21, 2018
Messages
856
Likes
3,246
Location
London, United Kingdom
View attachment 186186

As soon as you enable bass management, resampling is forced on you (blue curve). This is a shame as bass processing should be doable at higher sample rate. I guess the pipeline is all or nothing when it comes to processing. Fortunately you have the option of using Pure mode but that defeats bass management so no bookshelf speaker may apply. You have to use full range speakers.

I'm baffled that you'd suggest that avoiding resampling to 44.1/48 kHz is so important that it warrants foregoing bass management and only using full range speakers. The choice between using a crossover, vs. full range speakers, is quite fundamental, has tons of implications on audio system design, and as such can result in extremely audible differences. In contrast, the kind of resampling you're worried about here is practically impossible to hear (unless the resampler is badly broken). The idea that someone would suddenly decide to completely rethink their entire approach and go for a completely different set of speakers just to bypass some resampler seems a bit ridiculous to me. I'm going to assume I misunderstood and this is just poor wording?

I mean… if I was stuck with this AVR, and bookshelf speakers, then my reaction to this resampler thing would be "oh well, that's not great, but it's not like this is going to make much difference" (assuming I even cared about >48 kHz audio, which I don't). My reaction surely wouldn't be "oh shit there's a resampler! better buy a new AVR or get full range speakers!". That would be ludicrous.

Last edited:

testp

Active Member
Joined
Jul 22, 2020
Messages
297
Likes
151
another so-so AVR..
it's too tall as well, Panthers can't rock-out when home-alone..
