What is you preferred horizontal directivity of a speaker?

What is your preferred horizontal directivity of a speaker?


  • Total voters
    34

Bjorn

Major Contributor
Audio Company
Forum Donor
Joined
Feb 22, 2017
Messages
1,286
Likes
2,562
Location
Norway
For those of you have an opinion about this. What horizontal directivity/dispersion do you prefer? Only a uniform/constant directivity over a broad frequency area is taking into consideration here.


Soniclife

Major Contributor
Forum Donor
Joined
Apr 13, 2017
Messages
4,499
Likes
5,417
Location
UK
Can you add a don't know? That's where I am, and I think it's something I need to better understand. I also need to work out over what frequency range I want this dispersion.

OP
Bjorn

Bjorn

Major Contributor
Audio Company
Forum Donor
Joined
Feb 22, 2017
Messages
1,286
Likes
2,562
Location
Norway
Can you add a don't know? That's where I am, and I think it's something I need to better understand. I also need to work out over what frequency range I want this dispersion.
Added.

I'm aware that most probably don't know what they prefer. Sort of the same thing with acoustics treatment for those who treat their rooms. Most simply don't know the diference between different types of treatment since they haven't experienced it and certainly not been able to AB test.


tuga

Major Contributor
Joined
Feb 5, 2020
Messages
3,984
Likes
4,281
Location
Oxford, England
Can you add a don't know? That's where I am, and I think it's something I need to better understand. I also need to work out over what frequency range I want this dispersion.

Personal preference requires experimenting and most of us have little experience with narrow directivity speakers.

Apart from the D&D and Linkwitz's LX521, only a few ESLs, 4/5-way horns and maybe some open-baffle designs can maintain constant narrow directivity all the way down to the bass:

Dutch & Dutch 8C (wave-guided cardioid narrow baffle box with rear woofers)


Kef Blade 2 (wave-guided coax narrow baffle box with side woofers)

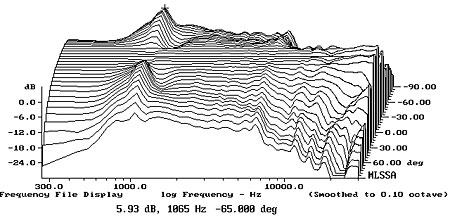

Jamo R907 (open baffle)

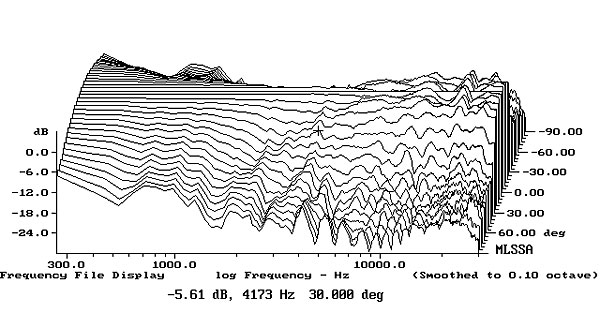

MartinLogan Montis (planar dipole above 300Hz)


Avantgarde Uno Nano (horns above 350Hz)


source: https://www.stereophile.com/

Last edited:

thewas

Master Contributor
Forum Donor
Joined
Jan 15, 2020
Messages
6,741
Likes
16,175
For me it depends on the room acoustics and listening distance, my older listening room was more damped and too narrow directivity loudspeakers would sound too dark with linear direct sound, in my current one it's the opposite, too wide directivity loudspeakers sound too bright with linear direct sound. Also EQing them to a different tonality is just a not great compromise as it doesn't sound the same good to me as a loudspeaker with linear direct sound that gets my desired tonality through its directivity.


RayDunzl

Grand Contributor
Central Scrutinizer
Joined
Mar 9, 2016
Messages
13,198
Likes
16,981
Location
Riverview FL
I have Martin Logan/Krell for music and movies - narrow dispersion.

And JBL 3 series adjacent to the mains for general noisemaking - wide dispersion.

That makes me the current outlier:



tuga

Major Contributor
Joined
Feb 5, 2020
Messages
3,984
Likes
4,281
Location
Oxford, England
I have Martin Logan/Krell for music and movies - narrow dispersion.

And JBL 3 series adjacent to the mains for general noisemaking - wide dispersion.

That makes me the current outlier:

View attachment 66402

I think that you are definitely in the ≤ 90° camp.


MattHooper

Master Contributor
Forum Donor
Joined
Jan 27, 2019
Messages
7,194
Likes
11,808
I don't know exactly.

But I can say I prefer a speaker whose sound changes as little as possible, both vertically and horizontally, as I move off axis.

It sounds generally more "natural" to me and when there are obvious shifts in sound with minimal head movement, it tends to bug me.
I also sometimes sit upright, sometimes slouch, sometimes slide down the sofa in to almost lying position, so a speaker that sounds consistent vertically works better for me. (I remember having meadowlark speakers, first order/time coherent, which sounded nice in the sweet spot but there was an interference pattern between the drivers due, I believe, to the crossover design, such that raising my head, or standing up, produced a weird hollow-sounding suck out, and I didn't like noticing that).


Sancus

Major Contributor
Forum Donor
Joined
Nov 30, 2018
Messages
2,923
Likes
7,616
Location
Canada
I think this is an interesting question, and I also think my preference is probably somewhat different depending on the number of channels and room acoustics. But it's hard to say for sure as I'd have to (preferably blind) try out several different configurations and that's very impractical to do.


phoenixdogfan

Major Contributor
Forum Donor
Joined
Nov 6, 2018
Messages
3,294
Likes
5,070
Location
Nashville
My personal opinion, and that's all it is (based on pure speculation, I will admit) sees it as possibly desirable to have wider directivity speaker in larger rooms for stereo reproduction, b/c the added ambiance of side wall reflections will make for a wider soundstage.

For multichannel, and especially for movies, I feel the ambiance is expicitly made part of the soundtrack and is played by the surrounds. Any additional ambiance provided by the first reflections especially from sidewall, will, I believe, in this case just muddy, obfuscate the effects already placed in the soundtrack IMHO. Narrower directivity which will minimize room effects are what I believe are desired in this instance.

Likewise, smaller rooms and also of course studio monitoring situations where wider directivity speakers will provide so much reflected sound as to drown out what's on the recording would seem to me inadvisable.

OP
Bjorn

Bjorn

Major Contributor
Audio Company
Forum Donor
Joined
Feb 22, 2017
Messages
1,286
Likes
2,562
Location
Norway
I don't know exactly.

But I can say I prefer a speaker whose sound changes as little as possible, both vertically and horizontally, as I move off axis.

It sounds generally more "natural" to me and when there are obvious shifts in sound with minimal head movement, it tends to bug me.
I also sometimes sit upright, sometimes slouch, sometimes slide down the sofa in to almost lying position, so a speaker that sounds consistent vertically works better for me. (I remember having meadowlark speakers, first order/time coherent, which sounded nice in the sweet spot but there was an interference pattern between the drivers due, I believe, to the crossover design, such that raising my head, or standing up, produced a weird hollow-sounding suck out, and I didn't like noticing that).
This has to do with the uniformity of the directivity and not the specific beamwidth.

A speaker with a constant directivity is always preferred. Very few speakers are able to maintain a uniform dispersion over a wide frequency area horizontally and vertically. Not really sure that many have actually heard a speaker with true constant directivity in both planes as it's extremely rare.
