"Bamboo Project" : Dual Mono 3E Audio 480-1-29A Amplifier
Thanks!
OP
daniboun
Major Contributor
- Thread Starter
- #52
Hi
Thanks. Both mono and stereo modules are pretty close. The ASR measurements confirm that the mono module is a bit more powerful but if you dont need power : making your own project with a stereo module will be cheaper )
I am in the process of making a new project that I will share soon
Hi
Thanks. Both mono and stereo modules are pretty close. The ASR measurements confirm that the mono module is a bit more powerful but if you dont need power : making your own project with a stereo module will be cheaper )
I am in the process of making a new project that I will share soon
I'm anxious to see you're new project!
@daniboun
Forgive my ignorance, about the following question.
If I do this project with the amp modules in separate boxes and one big PSU in a 3rd box, powering both amps, technically we still have a Dual Mono design?
My consern is to achieve the lowest possible Crosstalk.
I know that the best (concerning Crosstalk) is to have 2 PSUs and 2 modules as Monoblocks. But it's more expensive.
Should the common ground in the 3 box solution, limit my effort for the best Crosstalk? (or even worse create ground loops?)
Forgive my ignorance, about the following question.
If I do this project with the amp modules in separate boxes and one big PSU in a 3rd box, powering both amps, technically we still have a Dual Mono design?
My consern is to achieve the lowest possible Crosstalk.
I know that the best (concerning Crosstalk) is to have 2 PSUs and 2 modules as Monoblocks. But it's more expensive.
Should the common ground in the 3 box solution, limit my effort for the best Crosstalk? (or even worse create ground loops?)
OP
daniboun
Major Contributor
- Thread Starter
- #55
In the literal sense of the term, amps in which each module has its own PSU are considered dual mono. I don't think if you use a single psu to power both modules it will impact crosstalk or even overall performance. Just keep in mind that with a single rail power supply the power will be halved. Opt for at least a 500W power supply. The limit of the TPA3255 chip is set at 14A.
Personally I would avoid the three-box design but that’s just my opinion)
What I couldn't find in the specs of the module is, if it needs a symmetrical voltage ( +V 0 -V ) in order to work. I do believe so...
And of course you need a stronger PSU to run both modules.
Thank you very much.
Happy new year!
If you look at where the number 4 is, that is the section - between 3 and 4- that goes through the hole. On the bottom side, there is a little extra square, This is normally a little tooth that fits to the dent of the hole so that the pole doesn't turn around freely, what could jam or even make the inner cable break = You need to do the hole as indicated.
Last edited:
OP
daniboun
Major Contributor
- Thread Starter
- #60
BTW if you are looking for reliable binding posts I love these ones

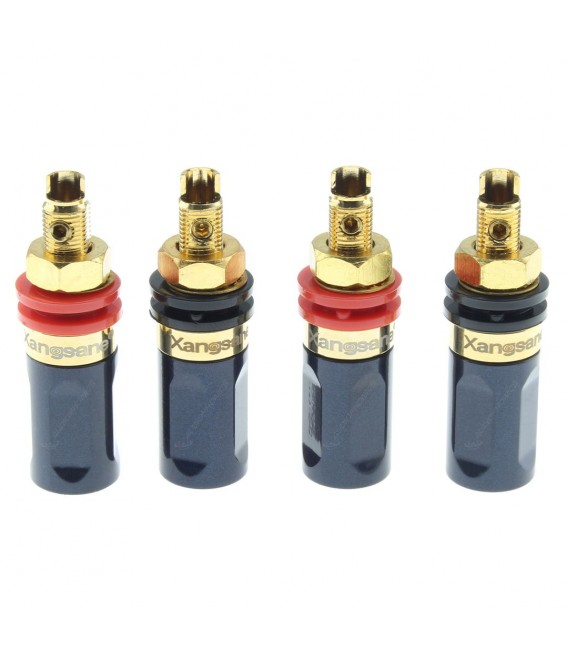

XANGSANE XS-6001AU SHORT Speaker Terminals Gold-Plated Pure Copper (Set x4) - Audiophonics
Xangsane's XS-6001AU SHORT loudspeaker terminals are ideal for mounting on enclosures and/or speakers. They feature gold-plated pure copper contacts.
