"The Bronco" DIY Studio Monitor

ThatSoundsGood

Active Member
Forum Donor
Joined
Aug 12, 2022
Messages
178
Likes
143

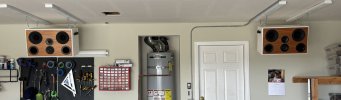

This project started with a friend who wanted me to make studio monitors for him. He loved the mid-range (no surprise due to the FIR filters) but the low end ran out of gas too soon so he didn't end up wanting to keep them. So, I painted them white and flew them in my garage. These things sound really good with the Hypex FA253 amplifier and FIR filters in place. The Drivers are Scanspeak Revelator 18W/8531G-00, Scanspeak 12MU mid range, and Satori TW29DN (4ohm). Crossover slopes are mostly 48db and 36 db an octave FIR (around 250Hz and 1800Hz). Phase is mostly flat and frequency response is pretty good. F3 around 40Hz with dual 2" ports.


Attachments

  • Bronco Ground Plane.jpg
    Bronco Ground Plane.jpg
    99.3 KB · Views: 241
  • Bronco Impulse.jpg
    Bronco Impulse.jpg
    88.5 KB · Views: 195
  • Bronco in room average.jpg
    Bronco in room average.jpg
    91.8 KB · Views: 185
  • Bronco Off-Axis.jpg
    Bronco Off-Axis.jpg
    124.8 KB · Views: 186
  • Bronco On-Axis.jpg
    Bronco On-Axis.jpg
    106.7 KB · Views: 189
  • IMG_0071.JPG
    251 KB · Views: 190
  • IMG_0267.JPG
    349 KB · Views: 236
  • IMG_0285.JPG
    282.3 KB · Views: 281
  • IMG_0286.JPG
    287.8 KB · Views: 295
  • IMG_0287.JPG
    106.7 KB · Views: 288

Reddoc

Member
Joined
Feb 22, 2023
Messages
63
Likes
80
That's a serious pair of garage speakers you've got there!
I like the front veneer- very pretty, and the contrast with the sides helps.
Enjoy!

OP
ThatSoundsGood

ThatSoundsGood

Active Member
Forum Donor
Joined
Aug 12, 2022
Messages
178
Likes
143
Some serious bracing there, good to see.
The walls are 1 and 3/8" thick. 3/4" plywood, 1/8" mass loaded vinyl then 1/2" MDF. Bracing is 3/4" MDF. They weigh over 80 pounds each. Ha!


alex-z

Addicted to Fun and Learning
Joined
Feb 19, 2021
Messages
924
Likes
1,721
Location
Canada
Awesome build. I am sort of shocked your friend didn't just integrate a subwoofer, studio monitors which can play below 40Hz at high SPL are unicorns.

OP
ThatSoundsGood

ThatSoundsGood

Active Member
Forum Donor
Joined
Aug 12, 2022
Messages
178
Likes
143
Awesome build. I am sort of shocked your friend didn't just integrate a subwoofer, studio monitors which can play below 40Hz at high SPL are unicorns.
We talked about another build. Ultimately, these were just the wrong speakers for the space and I agreed with everything that he was saying. I needed a design with woofers that handle more power and have less low end. I could have faked it a bit with these by using a high pass filter and some EQ, but that's just the wrong approach. I might move forward with some pro type woofers in a more powerful box. We will see. Nothing lost for me as it was an amazing project. Plus, I get to listen to these in my garage now and they are amazing.
