JBL 4312SE Studio Monitor Revealed at CES 2017

watchnerd

Grand Contributor
Joined
Dec 8, 2016
Messages
12,449
Likes
10,408
Location
Seattle Area, USA


http://www.avsforum.com/jbl-4312se-studio-monitor-revealed-at-ces-2017/
http://www.jblsynthesis.com/productdetail/id_4312se.html
http://www.jblsynthesis.com/productdetail/id_4312se.html

SYSTEM TYPE: 3-way Bass-reflex Monitor
LOW FREQUENCY TRANSDUCER: 12-inch (300mm) Aqua-Plas®-coated Pure Pulp cone woofer (1200FE-8)
MID FREQUENCY TRANSDUCER: 5-inch (125mm) Polymer-coated Pure Pulp cone midrange (105H-1)
HIGH FREQUENCY TRANSDUCER: 1-inch (25mm) Magnesium/Aluminum Alloy dome tweeter with waveguide (054ALMg-1)
RECOMMENDED AMPLIFIER POWER: 10-200 Watts RMS
FREQUENCY RESPONSE (-6DB): 44Hz - 40kHz
SENSITIVITY (2.83V@1M): 90dB
NOMINAL IMPEDANCE: 6 Ohm
CROSSOVER FREQUENCIES: 640Hz, 5kHz
ENCLOSURE TYPE: Bass-reflex via Front-firing Port
INPUTS: Five-way Binding Posts
FINISHES: Black Woodgrain with Black Cloth Grille
DIMENSIONS (H X W X D): 23 1/2" x 14-1/4" x 12" (597mm x 362mm x 305mm)
WEIGHT: 55.5 lb (25.2 kg) each


RayDunzl

Grand Contributor
Central Scrutinizer
Joined
Mar 9, 2016
Messages
13,198
Likes
16,981
Location
Riverview FL
Do they come in left/right pairs?


RayDunzl

Grand Contributor
Central Scrutinizer
Joined
Mar 9, 2016
Messages
13,198
Likes
16,981
Location
Riverview FL
Sometimes I see pairs that make me go WTF. These, no, I suppose.

I'm not sure I'd be a fan of the horizontal mid-tweeter layout, though. Seems wrong.




FrantzM

Major Contributor
Forum Donor
Joined
Mar 12, 2016
Messages
4,337
Likes
7,729
Sometimes I see pairs that make me go WTF. These, no, I suppose.

I'm not sure I'd be a fan of the horizontal mid-tweeter layout, though. Seems wrong.




Same here :) ... Interested though in the 4429 ..
JBL needs to put some order in their lineup. They're all over the place.. Recently "discovered" there was a 4306 monitor ... Don't know if it is from the Pro, Synthesis or just JBL lines :confused:


RayDunzl

Grand Contributor
Central Scrutinizer
Joined
Mar 9, 2016
Messages
13,198
Likes
16,981
Location
Riverview FL
OP
watchnerd

watchnerd

Grand Contributor
Joined
Dec 8, 2016
Messages
12,449
Likes
10,408
Location
Seattle Area, USA
Sometimes I see pairs that make me go WTF. These, no, I suppose.

I'm not sure I'd be a fan of the horizontal mid-tweeter layout, though. Seems wrong.

Might make more sense in a studio with it laying on its side on the monitor bridge, which would give the tweeter and mid a vertical arrangement.

OP
watchnerd

watchnerd

Grand Contributor
Joined
Dec 8, 2016
Messages
12,449
Likes
10,408
Location
Seattle Area, USA
Same here :) ... Interested though in the 4429 ..
JBL needs to put some order in their lineup. They're all over the place.. Recently "discovered" there was a 4306 monitor ... Don't know if it is from the Pro, Synthesis or just JBL lines :confused:

I thought the 4306 was a Japan only model.


RayDunzl

Grand Contributor
Central Scrutinizer
Joined
Mar 9, 2016
Messages
13,198
Likes
16,981
Location
Riverview FL

RayDunzl

Grand Contributor
Central Scrutinizer
Joined
Mar 9, 2016
Messages
13,198
Likes
16,981
Location
Riverview FL
OP
watchnerd

watchnerd

Grand Contributor
Joined
Dec 8, 2016
Messages
12,449
Likes
10,408
Location
Seattle Area, USA
It may be a Japanese model, but in these days of modern times it's only a click away...

Yeah, I know. I was tempted to get one a while ago just based on the looks.

But the specs are pretty ho-hum:

format 2-way bookshelf type
Used unit
LF
200mm diameter pure pulp cone woofer
HF
25mm diameter aluminum - magnesium alloy diaphragm compression driver + high density horn
Impedance 6 Ω
Allowable input 150 W (music)
Output sound pressure level 89 dB (2.83 V / 1 m)
Frequency characteristic 50 Hz to 40 kHz (-6 dB)
Crossover frequency 3.2 kHz
Dimensions (W × H × D) 278 × 460 × 300 mm
weight 12.0 kg


Dynamix

Addicted to Fun and Learning
Joined
Mar 29, 2016
Messages
593
Likes
212
Location
Nörway

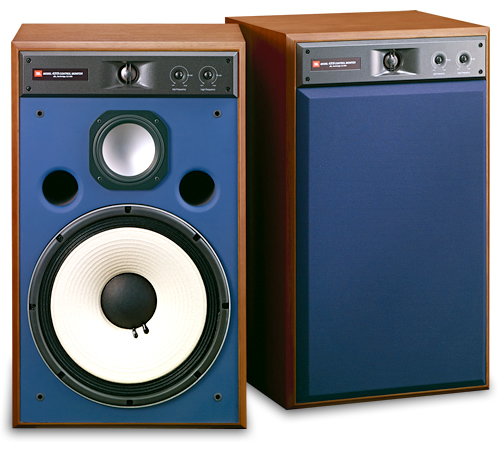

I think I can get by with my 4319's...



Dynamix

Addicted to Fun and Learning
Joined
Mar 29, 2016
Messages
593
Likes
212
Location
Nörway
Are you kidding me?

Those things suck. You should sell them.

To help you move on to something better, I'd be willing to take them off your hands as an act of charity. ;)

Yeah, they sound like utter crap. Feckin' junk. :D
