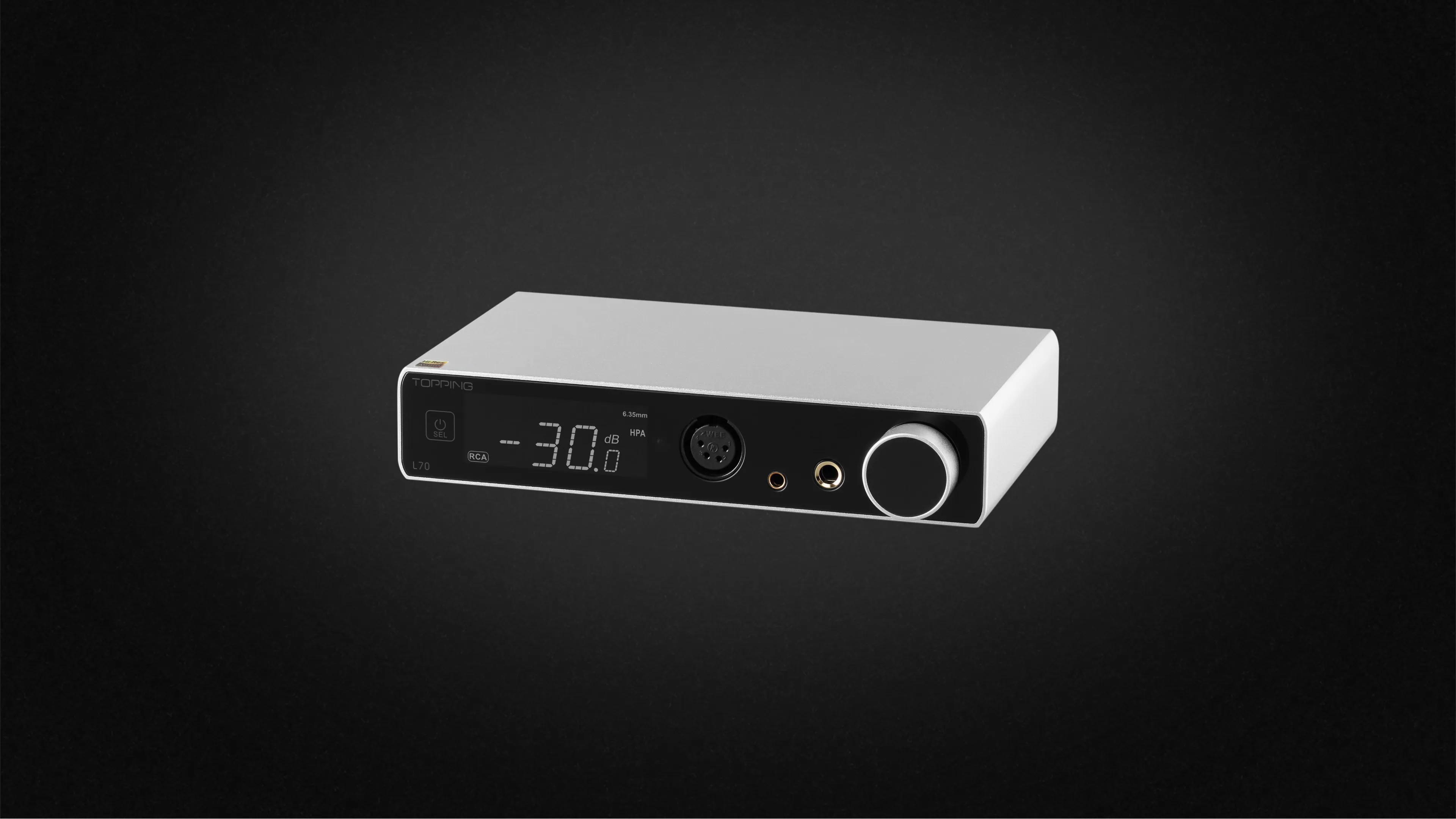

Correct.L70 can amplify input voltage up to 6dB for the case BAL IN/BAL OUT and Gain = L. If the input is 5Vrms, the output can provide 10Vrms maximal. Is it correct?
Both methods use the same circuit, without additional output drivers.It seems L70 HPA and Preamp specs are almost identical except output impedance. Is it possible both use the same circuit plus an additional output driver?
Amir's measurements are XLR->XLR as well was XLR->1/4"All measurements on page 1 is XLR IN/OUT?
Topping spec for RCA->XLR is actually a smidge better than XLR->XLR, because internally the volume control is single-ended so RCA input has fewer components in the chain which cuts down on noise and distortion a bit when compared to XLR in.kinda looking for RCA IN/XLR OUT. topping spec on power seemingly look identical
I think you're making several misconceptions here.Is the high gain +12db noise penalty on the XLR in/out 300ohm audible?
Depends entirely on your headphone's sensitivity, your hearing ability, and the noise floor of your listening environment.Is the high gain +12db noise penalty on the XLR in/out 300ohm audible?
I'll be using the R70XA. For convenience and more power i have a balanced xlr cable on the way for more power so I can have more headroom to play with. I doubt it will be perceptible but am just curious.I think you're making several misconceptions here.
1. Do you actually own 300-ohm headphones that require so much power that you have to turn on the high gain?Ehrlich gesagt bezweifle ich das sehr, aber ich könnte mich irren.
2. In any audio chain that generates such high gain, regardless of where it occurs, you'll always also have a corresponding increase in noise, irrespective of the device used.
3. And this is probably the biggest misunderstanding: Is amplifying the noise really not a problem if your headphones have such low efficiency that they require this high gain. Because the signal-to-noise ratio doesn't change much compared to low gain and more sensitive headphones.
It would make more sense if you described the error and exactly what happened.One of my amps died, and I’m trying to bring it back to life. I think I’ve finally managed to locate the faulty component. Here are some photos for you guys to take a look at.
At the time I posted the photos, these were only assumptions. The unit showed absolutely no signs of life. The standby LED was not lit, and the PC could not detect it for firmware flashing. It was completely bricked.It would make more sense if you described the error and exactly what happened.
Thank you for describing this in such detail.At the time I posted the photos, these were only assumptions. The unit showed absolutely no signs of life. The standby LED was not lit, and the PC could not detect it for firmware flashing. It was completely bricked.
One of the ±12 V supply rails was missing at the regulators. The entire rail was shorted to ground.
It turned out that one of the 0402 capacitors (10uF) in the 3.3 V circuit had failed short. As a result, the 3.3 V supply was not reaching the controller, which is why the whole device was completely dead.
I replaced the regulator S2WI (ME6211C33M5G-N) and the capacitors (0402 10V 10uF), and the unit is working again.
What you suggest sounds reasonable, but everything has its price. It's not only using better quality parts that cost only slightly more, but also doing the legwork to figure out exactly where these parts should be used. Hindsight is 20/20, and that often requires warranty support because if something fails beyond warranty, the factory doesn't find out because nobody sends it back. Topping got its reputation by building gear that measures among the best, yet at very low prices. TANSTAAFL - costs must be cut somewhere. That happens to be in long-term durability and support.... They are using SMD resistors that are too cheap/inferior and too small in size; these can fail prematurely and, in 99% of cases, result in a short circuit upon failure.
This does not happen—or happens extremely rarely—with higher-quality, larger components or through-hole parts.
The amount saved per unit is ridiculously small—just a few cents, and definitely less than €1/$1 per unit in production costs.
In my personal opinion, a manufacturer as well-known as Topping is today ought to take responsibility for such poor decisions and cover all repair costs—including shipping—for at least five years after purchase.
...
Perhaps @TOPPING and @JohnYang1997 will reconsider and take responsibility in the future for the errors occurring within their company that lead to the completely unnecessary failure of their devices.
Perhaps I didn't make this clear enough, but the issue concerns a problem that has been known for at least a decade across all sectors utilizing SMD components.What you suggest sounds reasonable, but everything has its price. It's not only using better quality parts that cost only slightly more, but also doing the legwork to figure out exactly where these parts should be used. Hindsight is 20/20, and that often requires warranty support because if something fails beyond warranty, the factory doesn't find out because nobody sends it back. Topping got its reputation by building gear that measures among the best, yet at very low prices. TANSTAAFL - costs must be cut somewhere. That happens to be in long-term durability and support.
This is not to disparage Topping, but only to point out that performance, build quality, longevity, support and price is a trade-off. Every customer and brand balances them in its own way.
