Review and measurements of MacBook Air (2024) headphone output

[mcdn]

This is a review and measurements of the MacBook Air 2024 headphone output. It was prompted by a request from @DrSpan, as the little Mac has a very strong reputation as a headphone source. Here it is, measuring itself:

Since 2021 Apple has supported impedance detection on the headphone outputs of its laptops, meaning low impedance headphones get more current, while high impedance headphones get more voltage. When you plug in the headphones the MacBook checks the impedance, and sets the output voltage to 1.25V if it's less than 150ohms or 3V if it's up to 1kOhms/. Above that it assumes you're using it as line interface and sets the voltage to 1V. It only does this check when you physically plug in the jack, which caught me out a couple of times in testing!

So the first question is does the impedance sensing work? It absolutely does, and the voltages are superbly accurate at 1.00V (4.7kOhms) and 1.25V (30ohms), dropping a tiny bit from spec to 2.97V at 300ohms.

The second question people have is how much power it can actually deliver? I won't make you wait, it delivers exactly to spec into 300ohms at 29mW, so essentially no voltage drop. Into 30ohms I got 48mW against an ideal of 52mW, and into 15ohms the gap widened a bit more with 85mW against an ideal of 104mW.

OK, let's do some graphs! The measurements were taken with a Cosmos ADCiso and a resistive dummy load. The ADC was running at 96kHz/24bits, with the laptop outputting 44.1kHz/float32, which is the default. The laptop was connected to external power via a thunderbolt hub. The headphone output itself is a 3.5mm TRS jack, i.e. unbalanced stereo.

Here's the best SINAD I could get, which was at 0dBFS output into 30ohms, delivering a SINAD of 97.9dB:

Frequency response is ruler flat to 16KHz, then drops about 6dB by 20KHz. If you change the output sample rate in "Audio MIDI setup" then you get the same result, e.g. the drop starts around 44kHz when using a 96kHz sample rate. The good news is the filter is steep and clean with no rise in noise after. It does look quite tailored, but I didn't get into impulse tests:

Here's THD+N vas power at 15, 30 and 300ohms:

And here's CCIF IMD (19 and 20kHz tones) at 30 and 300ohms:

The multitone distortion is very clean - I've overlayed all three impedances but they are pretty much the same:

Crosstalk was about -50dB. This was measured by driving one output at 0dB while measuring the other, so they share about 1m of cable before being split out for measurement:

At 50mV into 30ohms (with the Cosmos Scaler boosting the signal to about 1V into the ADC) I was able to get a SINAD of 89.1dB, which is less than the 95dB L7 Audio Lab measured but I think their measurement may be A weighted, and they have an APx555:

In conclusion definitely 5 quokkas from me! There's simply no reason to use an external headphone amp with any MacBook made since 2021 unless you have demanding headphones. It's not nearly as good for power as a good desktop headphone amp, but it is better than popular interfaces such as the Scarlett 2i2.



[staticV3]

Thanks a lot for measuring!

Quick note: some of your Ohm numbers don't make sense currently

Spoiler: Example

1.00V (4.7kOhms) and 1.25V (300ohms), dropping a tiny bit from spec to 2.97V at 30ohms.

and don't match the description in the graphs themselves.

Also, that 50mV graph seems very suspect. Actual performance is likely much higher there.



[Andreas007]

From technical point of view I expect nothing less from Apple.
They certainly have some of the best engineers and it is good to see that they are allowed to deliver.



[mcdn]

Thanks a lot for measuring!

Quick note: some of your Ohm numbers don't make sense currently

"Spoiler" tags seem to break quoting, but the bit you quoted was "1.00V (4.7kOhms) and 1.25V (300ohms), dropping a tiny bit from spec to 2.97V at 30ohms.", which is the measured RMS voltage outputs at 0dBFS at each of those impedances, which match Apple's spec [edited to note, I missed the obvious typo where I swapped the 30 and 300 in that sentence. It's fixed in the review now]

Also, that 50mV graph seems very suspect. Actual performance is likely much higher there.

I dunno, a 30dB drop in SINAD when reducing output from 3V to 50mV seems reasonable to me? Remember the dBFS scale here is the 20V or so of the Cosmos ADC, not the 3V of the Macbook's output



[staticV3]

1.00V (4.7kOhms) and 1.25V (300ohms), dropping a tiny bit from spec to 2.97V at 30ohms.", which is the measured RMS voltage outputs at 0dBFS at each of those impedances, which match Apple's spec

Apple's spec is up to 1.25V <150Ω and 3.0V at 150-1000Ω.

2.97V at 30ohms is certainly not correct.

It also does not match the description in the graph itself, which says 300ohm which is likely the correct number:

Here's the best SINAD I could get, which was at -6dBFS output into 30ohms, delivering a SINAD of 94.8dB:



[mcdn]

@staticV3 thank you for sense checking this, it is quite possible I've made mistakes



[mcdn]

Apple's spec is up to 1.25V <150Ω and 3.0V at 150-1000Ω.

2.97V at 30ohms is certainly not correct.

It also does not match the description in the graph itself, which says 300ohm which is likely the correct number:

Doh! That's just a typo when I was editing the sentence. Fixing it now, thanks!



[staticV3]

I dunno, a 30dB drop in SINAD when reducing output from 3V to 50mV seems reasonable to me? Remember the dBFS scale here is the 20V or so of the Cosmos ADC, not the 3V of the Macbook's output

Ahh there's the first issue. When trying to measure a 50mV signal with the Cosmos set to 20V sensitivity, the Cosmos' self-noise dominates the result so you're not actually measuring the DUT's own SNR.

See L7's measurements where he got 95dB @50mV, which is the measurement limit of even the APx555 so the MacBook itself can do more.

With both the Cosmos ADC and APx555, an additional LNA (e.g. Cosmos APU) would be required to accurately measure the MacBook at such low levels.



[mcdn]

Ahh there's the first issue. When trying to measure a 50mV signal with the Cosmos set to 20V sensitivity, the Cosmos' self-noise dominates the result so you're not actually measuring the DUT's own SNR.

See L7's measurements where he got 95dB @50mV, which is the measurement limit of the APx555 so the MacBook itself can do even more.

That's possibly true, but would only account for 16dB of difference at most? I took the scaler out of the loop because I was getting too much environmental noise through it, but I can try again tomorrow.



[staticV3]

That's possibly true, but would only account for 16dB of difference at most?

The MacBook likely has 50mV SNR around 100dB. Your measurements show 66dB.

That is a massive 34dB discrepancy.

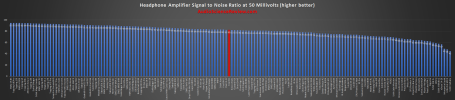

In Amir's ranking, that would be the difference between first place and nearly last place:
