Hello
@IVX.
Thank you very much for your clarifications.
The image with a sinusoidal with 1% THD is very eloquent and highly useful. As you can see, my current oscilloscope does not have the resolution of your application and my sound card does not support so much power, getting saturated much sooner. I would like to have some other alternative to use with REW, but I have to test if any of my DACs can act as a line input capable of being used with REW.
Going back to #9030D, the first thing I want to tell you is that the resistors used are 33 Ohms (3W), in the last posted image you can see its measure with the multimeter. I put it back so you can see it.

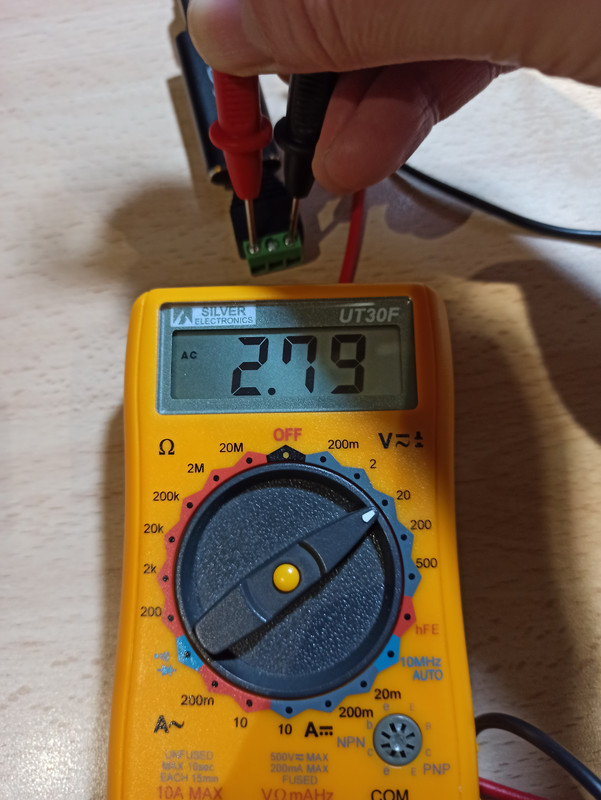

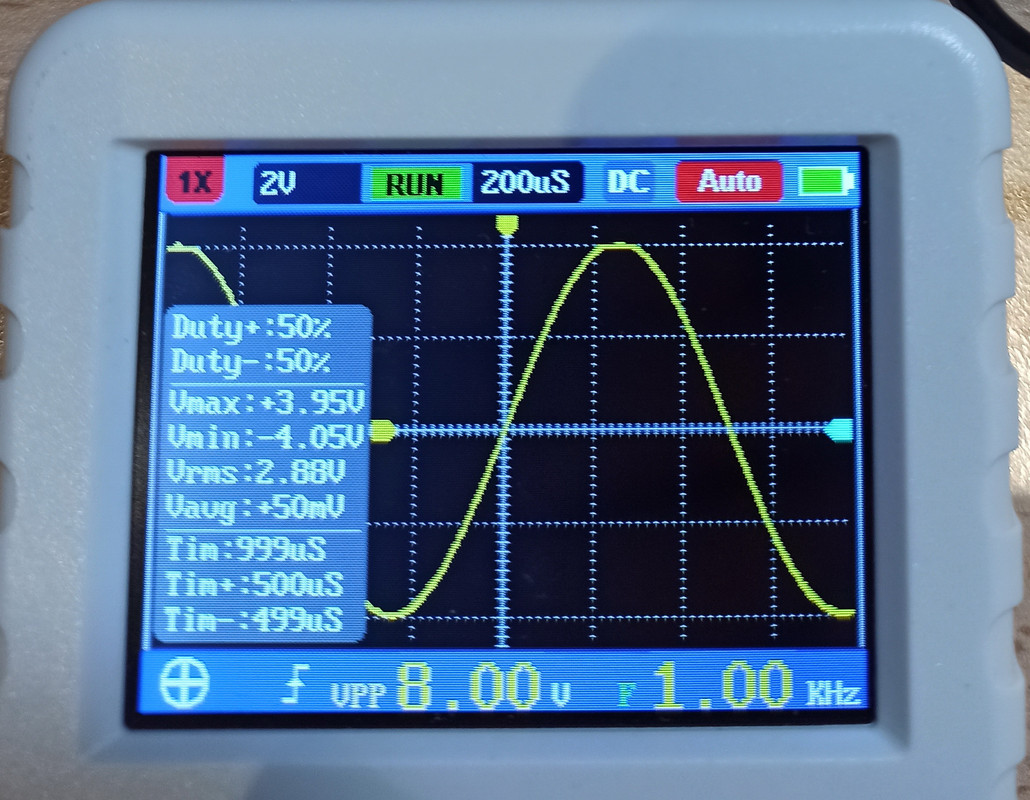

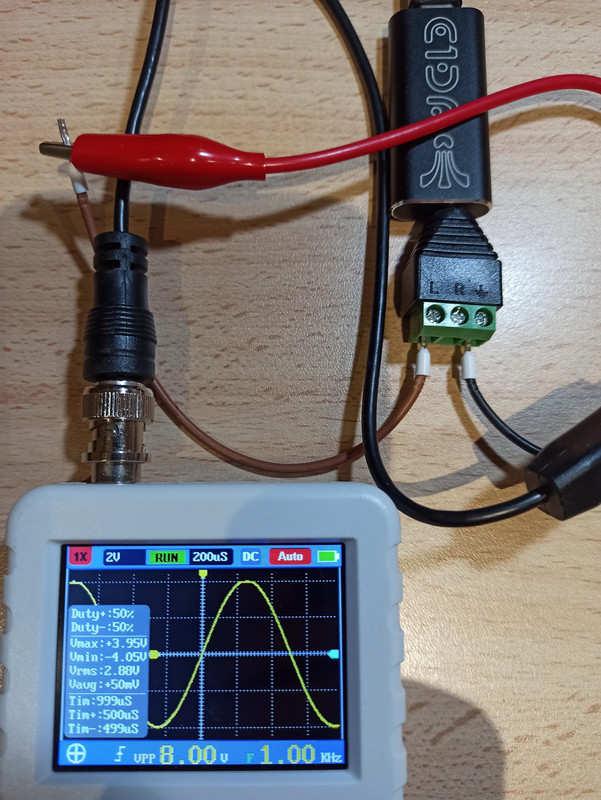

Now I hang the measurements made with No Load, both with the oscilloscope, and with the multimeter. For the multimeter measurement, I have used pure sine waves from 1kHz to 100Hz, because I know that the multimeter does not measure in alternate, beyond this figure. The measurement taken is stable in this range from 100Hz to 1kHz.
You can see that the signal is clearly clean.

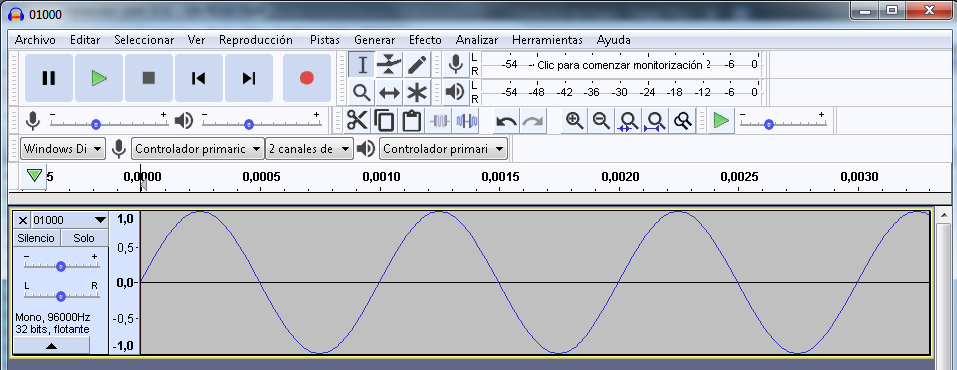

Another important fact is that I use Audacity to create the pure sinusoidal tones of amplitude 1 in mono, 96kHz FLAC.
Finally, I cannot measure the USB output of my PC, but having tested it on USB 2.0 ports, as in USB 3.0 without differences, I think you can understand that the voltage is 5V.
