Pyle PT8000CH Multichannel Amplifier Teardown

OP
amirm

amirm

Founder/Admin
Staff Member
CFO (Chief Fun Officer)
Joined
Feb 13, 2016
Messages
44,368
Likes
234,384
Location
Seattle Area
I know it was in the review thread, but I really like the PowerCube info. Don't know if you plan on continuing to use it, but it is informative in some cases.
@amirm
Thanks. I need to still figure out how to fix the tool aspect of it. For amps like this that don't go into protection, it works well. For a bunch of others that shut down early in the sequence, the whole thing becomes frustrating and not useful. So part of deciding to purchase it depends on whether I have the time to develop the necessary control software.


alex-z

Addicted to Fun and Learning
Joined
Feb 19, 2021
Messages
910
Likes
1,684
Location
Canada
Unusually good build quality given the price.

Cooling for the inner components like capacitors and buffer stages is a slight concern, but adding another fan and some plastic ducting would be extremely cheap and simple.


JktHifi

Senior Member
Joined
Mar 9, 2023
Messages
387
Likes
195
It seems there are 2 stereo amps each one of them generate 4 channels from L+, R+, L-, R- speaker terminal. Then each speaker terminal become 1 channel. Finally, distortion in everywhere.

Last edited:

voodooless

Grand Contributor
Forum Donor
Joined
Jun 16, 2020
Messages
10,223
Likes
17,799
Location
Netherlands
This looks very AVR like: single sided PCB, though hole components, wire bridges, cheap components. AVRs generally use even lower quality PCBs though.

It still amazes me that through whole assembly can be cheaper than surface mount.


BR52

Addicted to Fun and Learning
Joined
Apr 3, 2021
Messages
570
Likes
491
Location
Germany
This looks very AVR like: single sided PCB, though hole components, wire bridges, cheap components. AVRs generally use even lower quality PCBs though.

It still amazes me that through whole assembly can be cheaper than surface mount.
Wrong! Is double sided thru hohle. Single side populated.

Last edited:

voodooless

Grand Contributor
Forum Donor
Joined
Jun 16, 2020
Messages
10,223
Likes
17,799
Location
Netherlands
Wrong! Is double sided thru hohle. Single side populated.
This is clearly a single-sided PCB. What else are the wire bridges for?

So has Denon X8500H:

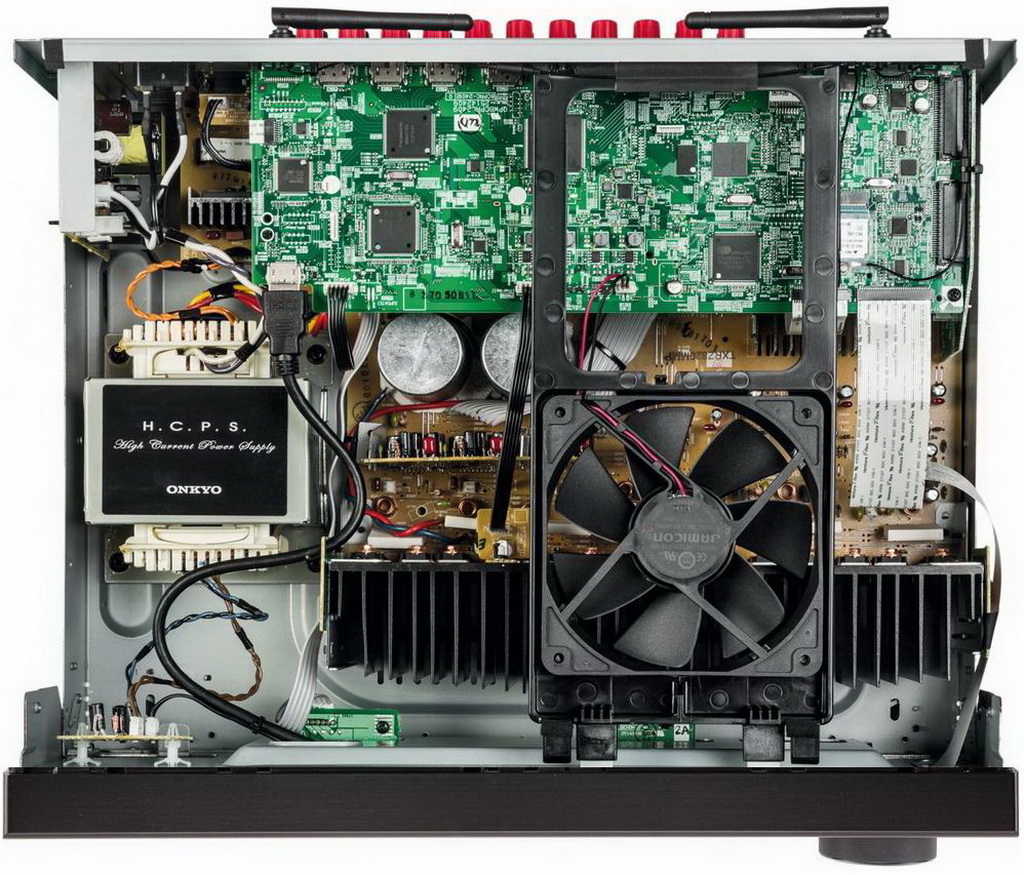

And most other AVRs, like from Onkyo:


I'm sure you'll be able to find exceptions...

Last edited:

BR52

Addicted to Fun and Learning
Joined
Apr 3, 2021
Messages
570
Likes
491
Location
Germany
Looks like you are an expert. ;) Did you ever design a PCB? Specially a double-sided?
I stay with my comment. No expectations needed.
I am talking about the Pyle not the Onkyo.


BR52

Addicted to Fun and Learning
Joined
Apr 3, 2021
Messages
570
Likes
491
Location
Germany
Yes, plenty

So, where is the upper copper layer then on any of these?
It's the Pyle thread here! and your pic's of other brands posted after my initial post.
But you are the expert and........

Last edited:

Sokel

Master Contributor
Joined
Sep 8, 2021
Messages
5,840
Likes
5,766
Thing is that it's built and price makes some other "bargains" seem way too expensive for the real estate and the materials used,even if the no-name quality of some components lower the price.
Heatshinks,trafos ans case alone are enough to shame the rest in the price range.


sarumbear

Master Contributor
Forum Donor
Joined
Aug 15, 2020
Messages
7,604
Likes
7,313
Location
UK
Hard to see how tall the heatsinks are, but if they're going from top to bottom, the air sucked in through the fans will have to come out either the top or the bottom, since the fans are pressed right against them.
Why not from the side vents which are spread at almost the same area as the fan covers. Obviously less area than the full fan opening but still there is a lot of vent area still. Besides, the maximum heat to be dispersed is defined by the IEC power connector, which is about 1000W (240V x 15A * 30%). That is not a huge amount.


BR52

Addicted to Fun and Learning
Joined
Apr 3, 2021
Messages
570
Likes
491
Location
Germany
I know what you said… The point is I don’t agree and ask you to back up your claim. How hard can that be? Why be upset about it? If I’m wrong, so be it. I don’t see a problem with that. People are wrong sometimes, that includes me.
Ok freedom. My I was too harsh, sorry.
Please have a lock to the Pyle board, you can see the copper traces on top and vias going to the back side, additionally you can see the high current paths with wire between the transistors. Sometimes it is also necessary to use a wire to jump over some traces in double-sided boards. But the vias are the indicator for double-sided
.


voodooless

Grand Contributor
Forum Donor
Joined
Jun 16, 2020
Messages
10,223
Likes
17,799
Location
Netherlands
Ok freedom. My I was too harsh, sorry.
No worries. Just glad we calmed down :)
Please have a lock to the Pyle board, you can see the copper traces on top and vias going to the back side
Can you point those out?
additionally you can see the high current paths with wire between the transistors. Sometimes it is also necessary to use a wire to jump over some traces in double-sided boards. But the vias are the indicator for double-sided

These? They are all with rear-sided copper. You just see it through the cheap PCB material because it's semi-transparent. On a dual-sided board, there would be no need for these wire bridges because you could use the top side.

Last edited:

sarumbear

Master Contributor
Forum Donor
Joined
Aug 15, 2020
Messages
7,604
Likes
7,313
Location
UK
Please have a lock to the Pyle board, you can see the copper traces on top
Are they copper traces? I do not see anything soldered to any of those traces. Can you?


voodooless

Grand Contributor
Forum Donor
Joined
Jun 16, 2020
Messages
10,223
Likes
17,799
Location
Netherlands
Are they copper traces? I do not see anything soldered to any of those traces. Can you?
Besides, none of the holes are actually filled with solder: meaning they are not metalized. You would only metalize the holes if you were to use a multi-layered PCB.


JayGilb

Major Contributor
Joined
Jul 22, 2021
Messages
1,371
Likes
2,307
Location
West-Central Wisconsin
Besides, none of the holes are actually filled with solder: meaning they are not metalized. You would only metalize the holes if you were to use a multi-layered PCB.
It looks a transparent pcb material and the bottom traces are visible through it. It the vias were plated, solder would be drawn up during flow soldering and should be visible from the top layer.


sarumbear

Master Contributor
Forum Donor
Joined
Aug 15, 2020
Messages
7,604
Likes
7,313
Location
UK
It looks a transparent pcb material and the bottom traces are visible through it. It the vias were plated, solder would be drawn up during flow soldering and should be visible from the top layer.
But why all component pins avoid those yellow traces?


fpitas

Master Contributor
Forum Donor
Joined
Jul 7, 2022
Messages
9,885
Likes
14,191
Location
Northern Virginia, USA
This looks very AVR like: single sided PCB, though hole components, wire bridges, cheap components. AVRs generally use even lower quality PCBs though.

It still amazes me that through whole assembly can be cheaper than surface mount.
If you have automated part insertion machinery, it doesn't have to be expensive. And in this case the miniaturization of SMT would be of little use.
