Process of Making High End Stereo Speaker. Wonderful Sound Engineer of Korea

lewdish

Member
Joined
May 29, 2021
Messages
88
Likes
34
Looks like Markaudio CHR-120 woofers, just a bit cut up and a Dayton Air Motion Transformer with some funny stuff at the back. That's about € 140 worth of drivers, sold for about € 2000 a pair.
If you look in the video its a modified full range CHR-70 which is like a $30 driver


thewas

Master Contributor
Forum Donor
Joined
Jan 15, 2020
Messages
5,214
Likes
11,623
Typical "high end", expensive materials and processing but doubtful engineering like for example a waveguide which with this shape most probably won't measure well.

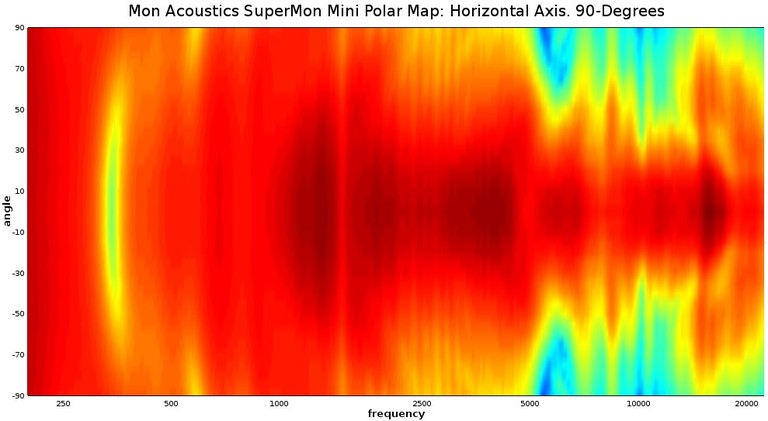

The measurement confirmation of the problems:

image_large2

"Second, I would completely redo the waveguide on the tweeter. I would make it a lot shallower in order to simplify the tweeter’s dispersion and make it a lot less jumbled."

Source: https://www.audioholics.com/bookshelf-speaker-reviews/supermon-mini/conclusion
