O-Noorus D4 Pro - TPA3255 PFFB Balanced Amplifier with DAC, HDMI ARC/Sub-Out/LPF/HPF

Guddu

Guddu

Major Contributor
Joined
Feb 10, 2020
Messages
2,011
Likes
2,094
Here is new additional from O-Noorus...............

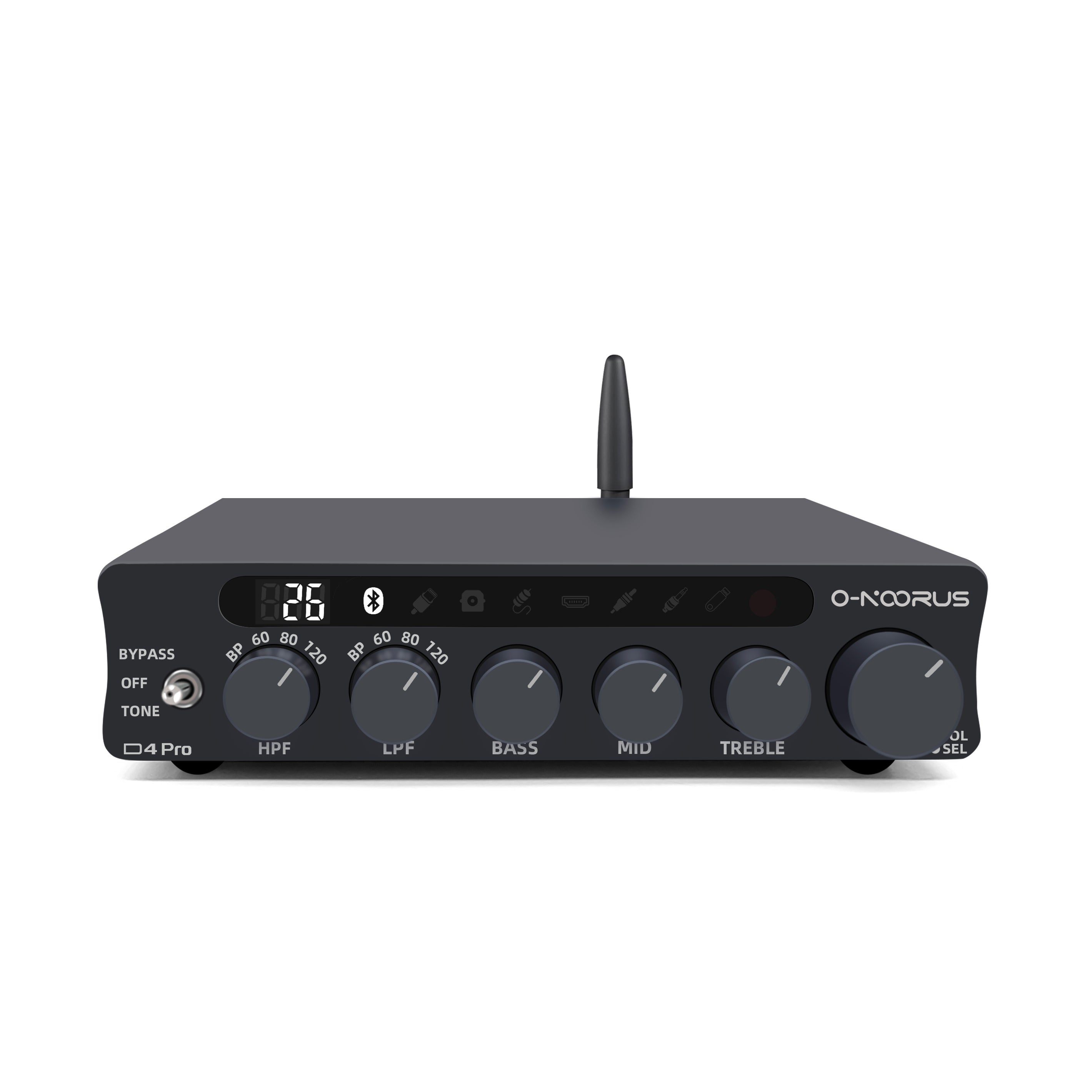

O-NOORUS D4 PRO TPA3255 PFFB stereo HPF LPF Amplifier with Balance HDMI ARC Bluetooth USB Optical Coaxial RCA input, 3-Band stereo EQ tone and bypass






www.o-noorus.com

O-NOORUS D4 PRO TPA3255 PFFB stereo HPF LPF Amplifier with Balance HDM

Specifications：Model: D4 PROTHD: ≤ 0.004% @1KHz 5WSNR: ≥ 93dB @1KHz 5W SNR: ≥ 106dB @1KHz 120W SINAD: 90dB @1KHz 5WInput Mode: Balance/RCA/HDMI ARC / BLUETOOTH/ USB /Optical/ Coaxial Power Supply: 36V5A/48V5A/NO POWERWorking Voltage: 24V~ 48VTerminating Impedance: 2-8ΩFrequency Range...
www.o-noorus.com www.o-noorus.com


Specifications：
Model: D4 PRO
THD: ≤ 0.004% @1KHz 5W
SNR: ≥ 93dB @1KHz 5W SNR: ≥ 106dB @1KHz 120W
SINAD: 90dB @1KHz 5W
Input Mode: Balance/RCA/HDMI ARC / BLUETOOTH/ USB /Optical/ Coaxial
Power Supply: 36V5A/48V5A/NO POWER
Working Voltage: 24V~ 48V
Terminating Impedance: 2-8Ω
Frequency Range: 20Hz - 20kHz
Output Mode: Passive speakers/Active subwoofer

Package Include:
O-NOORUS D4 PRO Amplifier*1
48V5A/48V10A/NO POWER(Optional)
User Manual*1

Mini amplifier, Multiple inputs, Custom Tone, Big Power, Low Distortion

--TPA3255+PFFB technology, full-frequency low distortion, driving audiophile-grade speakers.

--Full-scenario interconnection: HDMI ARC synchronizes TV volume, Bluetooth 5.3/optical fiber/coaxial /RCA/USB multi-input, creating 2.1 channels.

Customizable Sound

--Free customization of tone｜Interchangeable op amp 3-band EQ tone ±12dB adjustment, precise adjustment of vocals/low frequency.

--BASS, MID, TREBLE for 100Hz, 1000Hz, 10000Hz frequency bands respectively independent adjustment (±12dB)

Main output with high-pass filter and bypass​

60Hz high-pass filter parameters：

5th order Butterworth; 60Hz passband; Stopband: Fs: 45Hz, Asb: -12.00 dB

80Hz high-pass filter parameters：

5th order Butterworth; 80Hz passband; Stopband: Fs: 60 Hz, Asb: -12.00 dB

120Hz high-pass filter parameters：

5th order Butterworth; 120Hz passband; Stopband: Fs: 90 Hz, Asb: -12.00 dB





Congrats & All the Best @Alexander Lin

Dangit. I'd already been having trouble deciding between picking up the ampapa D1 or the onoorus D3pro.
And now there's a D4 pro which.... seems to have all the D3pro features, but with a few extra controls on top. Less of a 'screen' than the D1 or D3pro but I was already thinking that after the novelty wore off I'd probably have the screens turned down to minimum brightness (or off) anyway.

Dangit. I may just buy one of these and hope it's good.

@Guddu @Alexander Lin
Hello, O-noorus website is missing a lot of information and also the manual download for understanding better the ux experience .
Do you know the max power (48v-10A) @4 Ohm ? 200w each channel ? Do yo know if we can adjust right/left power output for each channel ? Is Rca input also output (like D3 pro) ? Does usb c deliver 5v output ? is Hdmi ARC also CEC ? Does D4 pro is sharing some similar functionality as D3 pro ? Best regards to o-noorus dreamteam.

Been looking at this for a while now because I like the physical knobs and the integrated DAC circuitry.
If anyone know a similar device please let me know.

Back to the D4 Pro. O-noorus tells me via E-mail that the specs, test data and general information on this unit is going to go live (edit: On their site of course) sometime on Saturday.
So... Waiting patiently for that.

I've gotten word from the rep on their official AliExpress store that the release has been delayed, as they are looking to add e-ARC support to the HDMI port. The D4 Pro is listed as out of stock for now.

Was super excited for this launch and was going to be an instant purchase for me, but eARC support would be pretty great to have. I'm fine with waiting a bit longer for that (hopefully not too long...)

Anyone got an ETA on the new release date?

LLKMuffin said:
I've gotten word from the rep on their official AliExpress store that the release has been delayed, as they are looking to add e-ARC support to the HDMI port. The D4 Pro is listed as out of stock for now.

Was super excited for this launch and was going to be an instant purchase for me, but eARC support would be pretty great to have. I'm fine with waiting a bit longer for that (hopefully not too long...)

Anyone got an ETA on the new release date?
Click to expand...
I purchased it from the official website. After sending an email, I was told that shipping would take place on February 15th. However, I would have preferred it if this information had also been stated on the website

Nickname2516 said:
I purchased it from the official website. After sending an email, I was told that shipping would take place on February 15th. However, I would have preferred it if this information had also been stated on the website
Click to expand...
I also purchased (two units) from the official website (on Feb 16). Also after sending an email, I received a response on Mar 3 that it would be released on Mar 12.

Did you ever receive yours?

Ok, thanks. Sounds like I'm rolling the dice. Did you cancel before or after their stated Feb 15th ship date?

I notice that Ali Express states they have 7 units in stock, albeit at a MUCH higher price.

Thanks.

I'll report back any updates I receive.

To continue the conversation about the D4 Pro - This is the only device I have found that will do what I need in a single box at a decent price:
  • USB Input for audio from PC
  • HPF for speakers
  • Subwoofer pre-out
  • Enough watts to push my smallish near field setups at a decent volume with some headroom.
If I cannot get my hands on the D4 Pro very soon, my backup plan is running a $100 Topping DX1 (USB Audio) into a $80 Deuk A5 (HPF + sub pre-out) which would be the same price as this $180 D4 pro (after adding the 48V power supply on their website). AliExpress shows it will arrive in a week or two, but $280 is overkill for me when the DX1 + A5 solution exists.

@Alexander Lin or any current owners ...

I'm having trouble finding the physical dimensions of this unit ... can anyone share measurements from an actual D4 Pro?

Thank you!

oldloder said:
@Alexander Lin or any current owners ...

I'm having trouble finding the physical dimensions of this unit ... can anyone share measurements from an actual D4 Pro?

Thank you!
Click to expand...
www.o-noorus.com

O-NOORUS D4 PRO TPA3255 PFFB Stereo High-pass filter and Low-pass filt

Specifications：Model: D4 PROTHD: ≤ 0.004% @1KHz 5WSNR: ≥ 93dB @1KHz 5W SNR: ≥ 106dB @1KHz 120W SINAD: 90dB @1KHz 5WInput Mode: Balance/RCA/HDMI ARC / BLUETOOTH/ USB /Optical/ Coaxial Power Supply: 36V5A/48V5A/NO POWERWorking Voltage: 24V~ 48VTerminating Impedance: 2-8ΩFrequency Range...
www.o-noorus.com www.o-noorus.com

Dimensional diagrams have been added now; parametric diagrams will be added later.

Has anyone else published reviews/measurements of this unit? I wonder why there is not much hype around this unit with near perfect functionality. I'm using it for TV duties in a 13x13 open concept living room and it seems impressive. HDMI CEC works flawlessly and the filters allow easy integration with sub. I have used it on all 4 different speaker, speaker/sub setup I have and at decent listening levels this unit is fine driving them. I don't have measurements, but sound quality seems as good as the other 3 TPA3255 based amps I have by other manufacturers. Would be interested to see independent measurements though. @Alexander Lin , any plans of sending a sample for testing to Amirm?

kapes said:
Has anyone else published reviews/measurements of this unit? I wonder why there is not much hype around this unit with near perfect functionality. I'm using it for TV duties in a 13x13 open concept living room and it seems impressive. HDMI CEC works flawlessly and the filters allow easy integration with sub. I have used it on all 4 different speaker, speaker/sub setup I have and at decent listening levels this unit is fine driving them. I don't have measurements, but sound quality seems as good as the other 3 TPA3255 based amps I have by other manufacturers. Would be interested to see independent measurements though. @Alexander Lin , any plans of sending a sample for testing to Amirm?
Click to expand...
OK，Thank you for your attention. As requested, I will send a D4 PRO to Amirm for review. I hope this review will not be a long time coming.

I have one of these, which I bought direct from O-noorus based on the info I found here. I would agree that it's got a great feature set. It feels well built and most importantly, sounds good to my ear, but I also have no measurements to share. I use it with an old Bravia TV via ARC, a Sony X700 via coax S/PDIF for SACD (PCM at 96kHz, I think) and Bluetooth for streaming from the family's phones, feeding some Tannoy MX1s and a Wharfedale sub. It doesn't go super-loud but is loud enough to irritate my wife so probably for the best, and all seems to work as I would want, so a happy cuatomer.

Last edited:
Main output with high-pass filter and bypass
60Hz high-pass filter parameters：5th order Butterworth; 60Hz passband; Stopband: Fs: 45Hz, Asb: -12.00 dB
80Hz high-pass filter parameters：5th order Butterworth; 80Hz passband; Stopband: Fs: 60 Hz, Asb: -12.00 dB
120Hz high-pass filter parameters： 5th order Butterworth; 120Hz passband; Stopband: Fs: 90 Hz, Asb: -12.00 dB

RMS Level.png

I just received mine today, will be used in the living room of my ex-wife, will be driving these speakers + I will connect a Fosi V3 Mono to drive this sub
I will circle back in like 4 weeks' time to share my experience
