New audio analyzer from Neurochrome

[Hipocrates]

Very cool stuff from Neurochrome launching on AXPONA this year. (no affiliation)

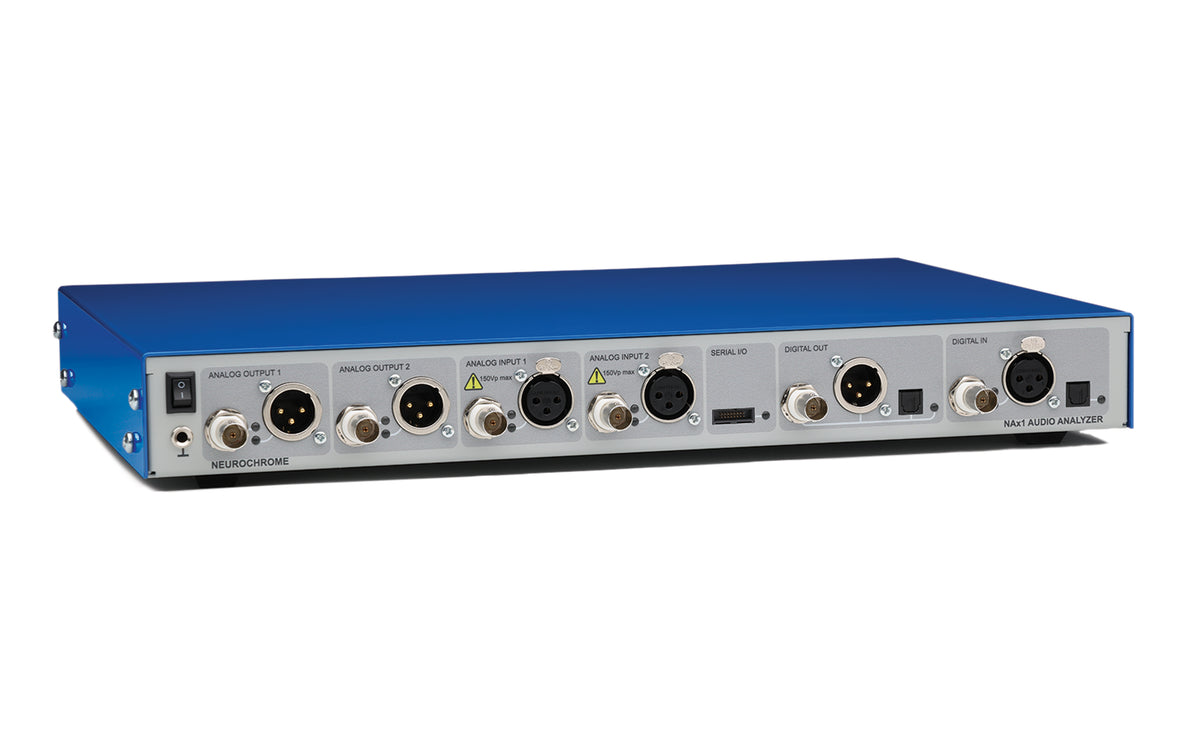

NAx1 Audio Analyzer

Measure ultra low distortion, harmonic spectrum, frequency response, crosstalk, jitter, etc. with the NAx1 Precision Audio Analyzer | Neurochrome

neurochrome.com



[Scytales]

Thanks!

The compatibility with all operating systems is the real thing!



[PristineSound]

Very cool stuff from Neurochrome launching on AXPONA this year. (no affiliation)

NAx1 Audio Analyzer

Measure ultra low distortion, harmonic spectrum, frequency response, crosstalk, jitter, etc. with the NAx1 Precision Audio Analyzer | Neurochrome

neurochrome.com

Wow, this is a high precision tool at a very very affordable price. I wonder how the software is.

I'm few years, you can find this used maybe for half price.



[tomchr]

I wonder how the software is.

We'll have some sort of custom software. Hopefully a customized version of REW. The custom software will allow for things like auto-ranging and will make using the various features of the NAx1 easier and more intuitive.

That said, you could also use it as a fancy sound card. It'll be a UAC2 device so it'll plug straight into Mac and linux. Windows will require an ASIO driver, which we'll provide. We'll also provide a control panel that'll allow you to control the NAx1 from the host computer. Then add your favourite audio analysis software - including, say, AP's APx500 FLEX - and off you go.

The NAx1 will also be controllable via REST and a command line tool. We're considering adding SCPI support as well; and will if there's enough interest.

The NAx1 will be compliance tested to make sure it meets the various standards for electrical safety, ESD, and EMC. That'll allow it to be used in many professional environments, including semiconductor testing.

Tom



[Rja4000]

Wow, this is a high precision tool at a very very affordable price. I wonder how the software is.

I'm few years, you can find this used maybe for half price.

Depends how you read the specs and what this hardware is actually doing.
If that's just an interface, I have similar noise level in mono with the RME ADI-2/4 Pro SE for half this price...



[Waveform Fidelity]

Wow, this is a high precision tool at a very very affordable price. I wonder how the software is.

I'm few years, you can find this used maybe for half price.

Seems to me very very expensive - its basically a 2 in 2 out audio device with a DSP. Pretty much the same as any loudspeaker management processor. No mention of features or software which is where the value is.



[Hipocrates]

its basically a 2 in 2 out audio device with a DSP

Can you elaborate on that?



[sernikus]

Depends how you read the specs and what this hardware is actually doing.
If that's just an interface, I have similar noise level in mono with the RME ADI-2/4 Pro SE for half this price...

Buhahahaha...good joke ...



[PristineSound]

its basically a 2 in 2 out audio device with a DSP.

What DSP?



[Waveform Fidelity]

What DSP?

DSP, MCU or FPGA for software, but after reading ^^ its actually none of this, so indeed its a simple dumb 2 in 2 out audio interface, like a Focusrite Scarlet 2i2, with PC host software.



[Hipocrates]

DSP, MCU or FPGA for software, but after reading ^^ its actually none of this, so indeed its a simple dumb 2 in 2 out audio interface, like a Focusrite Scarlet 2i2, with PC host software.

So is better to get a "dumb" interface, how extraordinary!



[PristineSound]

DSP, MCU or FPGA for software, but after reading ^^ its actually none of this, so indeed its a simple dumb 2 in 2 out audio interface, like a Focusrite Scarlet 2i2, with PC host software.

This thing is closed to -130db performance from 20Hz to 20kHz. It has a built in notch filter.

What audio interface on the market is capable of this type of performance?

You need about 10 dB better performance of the DUT to be able to measure it accurately. The RME is far from this performance and the Scarlet would be deem completely untrustworthy to do any types of audio analysis with it's overwhelmingly pathetic performance.

The only one that is capable of this level of performance is the grade 0/1 cosmos and that is only a AD converter.



[Hipocrates]

The RME is far from this performance and the Scarlet would be deem completely untrustworthy to do any types of audio analysis with it's overwhelmingly pathetic performance.

I think they are just joking, no way a science based community make such level of comments.



[PristineSound]

I think they are just joking, no way a science based community make such level of comments.

Since I have not interacted with these people before, I don't want to interpret the true meaning of their comments, but let's see if they can elaborate what they are talking about.



[Rja4000]

This thing is closed to -130db performance from 20Hz to 20kHz. It has a built in notch filter

Does it ?
Where do you find those details ?



[Rja4000]

The RME is far from this performance

Is it ?
I have one and I use it for measurements.
The specs says 120dB SNR Unweighted at 1dBu range.
In mono (averaging 2 channels), that would be around 122dB.
That's 0.69 µV.
The specs of the NAx1 says 0.65 µV.
That's 0.5dB difference.

And in reality, when I measure the input on my RME ADI-2/4 Pro SE in Mono :
SNR (AES17 unweighted 10Hz-22kHz mono) is 123dB
Or 0.61µV (and even a bit better for 20Hz-20kHz)


Now, I suppose this one is indeed doing way more than a simple interface.

It probably features a notch filter and a low noise analog preamplifier and attenuator, not to speak about multi stages DAC and/or ADC for extended dynamic range.

But I can't find this information anywhere.


EDIT:

Neurochrome Unveils NAx1 Audio Analyzer at AXPONA 2026

Visitors to AXPONA 2026 in Schaumburg, IL, are advised to allocate time to explore the latest offerings presented by Neurochrome, the company founded by Tom Christiansen. Neurochrome will be exhibiting in the Expo Hall (EX9137). In addition to its kits, amplifiers, headphone amplifiers, power...

audioxpress.com

I suppose "THD Spot Measurement Mode" is using a notch.



[KSTR]

But I can't find this information anywhere.

See the thread at DIYaudio.com where Tom and Jens shared some details.



[Rja4000]

NAx1: A high-end, full-featured audio analyzer by Neurochrome

I will be hosting the World Premiere of the Neurochrome NAx1 audio analyzer at AXPONA in Chicago April 10-12, 2026. Tickets are still available through Axpona's website: https://axpona.com/ The NAx1 is the result of the collaboration between three engineers in three countries across two...

www.diyaudio.com



[PristineSound]

Does it ?
Where do you find those details ?

Did your not click on the link on of the product on the first post?

It's on that link.



[PristineSound]

Is it ?
I have one and I use it for measurements.
The specs says 120dB SNR Unweighted at 1dBu range.
In mono (averaging 2 channels), that would be around 122dB.

According to the guys at quantasylum, you need at least 10dB more than the DUT in order to accurately test the DUT, which means you wouldn't be able to test some very high performing equipment.

I suppose "THD Spot Measurement Mode" is using a notch.

Yea, that is a notch filter.
