Need integrated amp: 100 W+ into 4 Ω, headphone amp, ≤€1 k, SINAD ≥100 dB

[ŽELJKO]

Hi everyone, this is my first post on the ASR forum!

For the past three months, I’ve been working (with the help of AI tools, but unsuccessfully) to put together a hi-fi system that suits my needs, and I’d really appreciate your input.

My setup goals:

Room size: ~20 m²

Listening levels: moderate to high

Music genres: Jazz, Jazz Fusion, Blues, Blues Rock, and Metal

Source: streaming services like Spotify, Deezer, and Qobuz

Sound preferences: I’m looking for a sound that’s immersive, dynamic, and clear, with good headroom and low distortion

Budget: I don’t have a hard limit, but I prefer to buy gradually if that means better quality. For an integrated amplifier, though, I’d like to stay under €1,000 for example.

What I’ve already purchased:

1. Wiim Ultra – music streamer
2. Teufel Ultima 40 Mk4 – passive speakers
+ ( Acer Nitro v16 and Hisense 55e8q TV)

What I’m looking for now:

An integrated amplifier with at least 100W per channel and a dedicated headphone amplifier (for late-night listening)

Headphones (considering HiFiMan Ananda or Sennheiser HD 660S2)

Possibly a separate DAC/headphone amp like the Topping DX5 II

Initial thoughts: I was considering the Yamaha A-S701, but I noticed its SINAD is significantly lower than the Wiim Ultra's, which makes me question whether it’s a good match.

Questions for the forum:

Should I go with the A-S701, or is there a better-integrated amp ( class AB or class D) in this price range that pairs well with the Wiim Ultra and my speakers?

Would it be better to separate the speaker amp and headphone amp entirely?

Any suggestions for headphones that pair well with Jazz and Metal?

Note: I tend to buy once and hold onto gear for a long time, so I’m aiming for a setup that will stay satisfying for years.
Thanks in advance for your help!



[ŽELJKO]

Nobody willing to help me?



[staticV3]

Here's what I'd do:

WiiM->RCA->3E Audio/Fosi/Topping Amp

WiiM->USB->DAC+Headphone Amp combo (e.g. DX1, DX5II, Element IV)



[JSmith]

Hi everyone, this is my first post on the ASR forum!

Hi and welcome to ASR.

Music genres: Jazz, Jazz Fusion, Blues, Blues Rock, and Metal

Not relevant to an amp.

I’m looking for a sound that’s immersive, dynamic, and clear

You just want a transparent amp... minimal noise + distortion.

Wiim Ultra – music streamer

Why not just try the new WiiM Vibelink?

WiiM Vibelink Amp Review

This is a review and detailed measurements of the WiiM Vibelink stereo class D amplifier with DAC. It was sent to me by the company and I believe will cost US $299 [original estimatews $400.]. I was relieved from the point of view of testing that is NOT a streaming product so no need to mess...

www.audiosciencereview.com

Would it be better to separate the speaker amp and headphone amp entirely?

Maybe so.


JSmith



[ŽELJKO]

Why not just try the new WiiM Vibelink?

While the product has its strengths, a common complaint among users is its noticeable lack of power.



[ŽELJKO]

Here's what I'd do:

WiiM->RCA->3E Audio/Fosi/Topping Amp

WiiM->USB->DAC+Headphone Amp combo (e.g. DX1, DX5II, Element IV)

WiiM → USB → Topping DX5 II is a solid chain—I'll take your advice and run it exactly like that.

WiiM->RCA-> Topping amp ( for the RCA route: which Topping amp is the reliable 100W pick that simply works without issues?)



[ChefBrunch]

Your speakers require significant power to perform their best, those are no small bookshelf speakers.

Many ways you can go about getting there, I would look at using the wiim ultra as the preamp itself or using a headphone amp that doubles as a preamp instead of going for a traditional receiver then you can get a more powerful power amp.

Consider the Dayton Audio A400 - https://www.parts-express.com/Dayto...lZXgcUKEzGxkEzI1Pp1G8sZiueZrgDogaApaEEALw_wcB

you could then use the pass through to a headphone amplifier like a schiit vali or fosi gr70 and utilize the volume control on the A400


Or you could go with a schitt Midgaurd or saga2 so you can jump the signal up to balanced connections for a range of power amps. Something like the Avantone CLA-200.

but I think your speakers will greatly do better with an actual power amp than a a typical integrated or receiver in these price points. .....your speakers are basically needing 200wpc+ 4ohm this is no small amount and double what the yamaha's will give you.



[JSmith]

While the product has its strengths, a common complaint among users is its noticeable lack of power.

That all depends on a specific systems requirements, speaker sensitivity etc... you mentioned "at least 100W", your speakers are 4 - 8ohm and Amir measured 134W@4R and 73W@8R on the Vibelink.

Continuous power handling (IEC - Long Term) 120 W
Sensitivity (2.83 V / 1 m) 87 dB
Frequency range 39 - 20000 Hz
Peak power capacity (IEC - Short Term) 200 W
Maximum sound pressure level 108 dB/1m
Impedance 4 - 8 Ohm

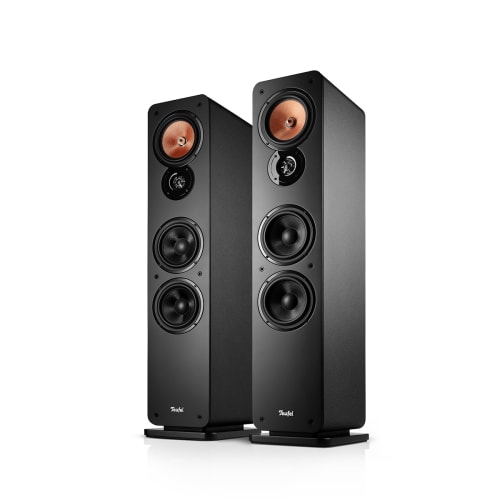

ULTIMA 40 | WINTER SALE | Teufel

ULTIMA 40 ab 369,99 € (03/01/2026): The next generation of the popular dual HIFI floorstanders for impression-making stereo sound and high dynamics in music, movies and games in rooms up to 35 m². Jetzt entdecken

lu.teufelaudio.com

The 3e Stereo has slightly less power than the Vibelink, but the monoblocks much more.

They're both power amps though, you mentioned integrated... there are many more to recommend if you are only after power amps.

your speakers are basically needing 200wpc

That's peak/max power handling... people use less power than they think generally listening to music.


JSmith



[ChefBrunch]

That all depends on a specific systems requirements, speaker sensitivity etc... you mentioned "at least 100W", your speakers are 4 - 8ohm and Amir measured 134W@4R and 73W@8R on the Vibelink.

ULTIMA 40 | WINTER SALE | Teufel

ULTIMA 40 ab 369,99 € (03/01/2026): The next generation of the popular dual HIFI floorstanders for impression-making stereo sound and high dynamics in music, movies and games in rooms up to 35 m². Jetzt entdecken

lu.teufelaudio.com

The 3e Stereo has slightly less power than the Vibelink, but the monoblocks much more.

They're both power amps though, you mentioned integrated... there are many more to recommend if you are only after power amps.

That's peak/max power handling... people use less power than they think generally listening to music.


JSmith

Yes and no,,,its not just about power used its how the amplifier uses the power dynamically....its about current delivery ability...

it will be greatly apparent how much more dynamic the speakers and sound will be on a powerfull 300wpc 4ohm capable amp than an amp that is only capable of half that power...

yes I know the but what you only need 40wpc to listen at 92db......its not excatly how it works, the sound is not the same and if you know you know but you don't know unless you try.



[voodooless]

Your speakers require significant power to perform their best, those are no small bookshelf speakers.

Not really. They are 87 dB efficient, which isn’t particularly low, not very high. Nevertheless I would say 100+ watts into 8R would be a good minimum, and already enough to reach the theoretical maximum of 108 dB/1m. Bigger speakers don’t generally need more power. In fact general the inverse is true: bigger speaker means better efficiency, so less power demand.

Why not exchange the WiiM ultra for a WiiM amp ultra?



[ChefBrunch]

Not really. They are 87 dB efficient, which isn’t particularly low, not very high. Nevertheless I would say 100+ watts into 8R would be a good minimum, and already enough to reach the theoretical maximum of 108 dB/1m. Bigger speakers don’t generally need more power. In fact general the inverse is true: bigger speaker means better efficiency, so less power demand.

Why not exchange the WiiM ultra for a WiiM amp ultra?

That's not how it works....its not about DB efficiency . or bigger speakers,..its about current delivery and maintaining it through swings from 8-4 ohms, this is why numbers on paper and amplifiers are meaningless.

there is a reason the manufacturer recommends 200wpc, this is the point when you finally reach the RMS power needed to drive them to full potential. and even better would be to have a little more on tap from 20-%-50% , but hey do you man, I'm just telling you how it actually work in real life.



[Ropeburn]

As always, "4 - 8 Ohm" in notorious German fashion means it's a nominal 4 Ohm speaker. So you can forget 8 Ohm power figures of amplifiers, focus on 4 and current delivery. Gladly, the speaker is a rather benevolent load:

Test Teufel Ultima 40: der Mega-Seller modernisiert in neuem Gewand - LowBeats

Als ich die Teufel Ultima 40 vor sieben Jahren das erste Mal in die Finger bekam, war ich bass ersta

www.lowbeats.de

Still profits from a bit of power due to only average sensitivity, but doesn't need heaps either. Rough estimation in an average European living room: 2x100W and you're set, including house parties.



[Beave]

That's not how it works....its not about DB efficiency . or bigger speakers,..its about current delivery and maintaining it through swings from 8-4 ohms, this is why numbers on paper and amplifiers are meaningless.

there is a reason the manufacturer recommends 200wpc, this is the point when you finally reach the RMS power needed to drive them to full potential. and even better would be to have a little more on tap from 20-%-50% , but hey do you man, I'm just telling you how it actually work in real life.

The combination of condescension while being wrong always cracks me up.



[ChefBrunch]

The combination of condescension while being wrong always cracks me up.

You think no difference will be heard between a 100wpc integrated and a 300wpc power amp on these speakers?

Just lol



[Ropeburn]

yes I know the but what you only need 40wpc to listen at 92db......its not excatly how it works, the sound is not the same and if you know you know but you don't know unless you try.

Yes, that's exactly how it works. I have 87dB speakers here and have used them with different amps over the years. A 2x70W "my first Sony" type, and a chunky 2x200W hybrid amp with oversized everything and huge power transformer. Up to a certain point it sounds exactly the same, and that point is very loud.



[Nopiano]

Initial thoughts: I was considering the Yamaha A-S701, but I noticed its SINAD is significantly lower than the Wiim Ultra's, which makes me question whether it’s a good match.

That’s the easiest choice. Super high SINAD is irrelevant at home, as it’s just for bench testing (and bragging rights) but the Yamaha will be quiet enough for normal usage. You benefit from a conventional design, versatile inputs and controls, classic styling, and the support of a huge Japanese brand.

Can you see one at a dealer, and even buy with a return option?

(I have bought and played with Wiim and Fosi at home, but in the wider scheme of things they’ve only been around moments. They are brilliantly novel, but have no track record. My long term kit is Marantz, Linn, Primare, Pass, Tascam, ATC, Sonus faber, and such like, all with good pedigree.)



[Bloomer]

For headphones, I'd recommend these Massdrop x Sennheiser 6XX 'phones. They're Sennheiser HD 650's at half price. I bought a pair a year ago and they sound the same as my 650's. Good deal! They will run out of these at some point, so jump quickly. They can be returned painlessly if you don't like.

Massdrop does some good (licensed) copies of expensive items at good prices. The 6XX's are identical to the 650's with a dark blue frame and marking changed to 6XX.
Good thing about Sennheiser is they sell replacement parts for their 'phones for decades. I upgraded a pair of 580's bought 25 years ago to 650's with new drivers, ear cups and headpad.

Yeah, they do sound good!

https://drop.com/buy/massdrop-sennheiser-hd6xx#signupv2

Good luck with your audio quest, you're starting a great adventure!



[voodooless]

That's not how it works....its not about DB efficiency . or bigger speakers,..its about current delivery and maintaining it through swings from 8-4 ohms, this is why numbers on paper and amplifiers are meaningless.

The amount of power needed for a given SPL is dictated by the efficiency of the speaker and the power you put in. The higher the efficiency, the less power is needed for the same SPL. How much current is needed for this will, for sure, depend on the impedance, but as long as the amp delivers the numbers, you're fine. The issue arises only when the numbers on paper turn out to be incorrect. There really is no mystery here.

The 108 dB Maximum SPL you will already reach at 100W or less, depending on room placement. A bit of overhead is fine, but I can tell you right now that these speakers will not last long when playing with real music content at the peak rating of 200W. Then again, a lower power amp driven into clipping is probably just as much of an issue.



[Ropeburn]

Let's address the elephant in the room.

OP wants good sound and has 1000 moneys to spare...

Teufel Ultima 40 aren't crap, but far from gold either. Personally I'd call them the absolute minimum for "hifi". The price (400/pair) reflects that, and for that they're actually quite good considering the concept and size.

Spending the other way around, 1000 for speakers and 400 for an amp, would be VASTLY better. I know it's a hassle returning speakers and starting to look again, but @ŽELJKO you might want to consider that. There's a lot of great speakers for 1000 and less that, honestly, will eat the Ultima 40 for breakfast in every aspect. And a lot of amps fora 400 that will do the job perfectly fine.

The total amount here (1500-2000) can easily get you a VERY nice stereo that's balanced, clear, and fucking loud all at the same time. If you take your time and invest wisely. Wiim Ultra is already a very nice source and convenient too, so that's already covered.



[ŽELJKO]

Thanks for the thoughtful replies, everyone – the thread has actually helped me boil the question down to two concrete paths.
1.
Keep the Teufel Ultima 40 Mk4 and buy a €400-€500, 150-200 W/4 Ω, SINAD-clean class-D power stage (Topping PA5 II, 3E Audio 250-2, Fosi V3 Mono, etc.).
– Cheap, measures well, plenty of head-room for these speakers, no headphone section needed because the DX5 II will already cover that.
2.
Send the Teufels back, raise the speaker budget to €900-€1 000 and mate them with a €350-€400 integrated (Yamaha A-S701 or the new WiiM Amp Ultra).
– Gives me a demonstrably better transducer, but I lose the raw power the class-D blocks offer and, with the Yamaha, I drop 15-20 dB of SINAD.

If I stay with the Teufels I know I’ll enjoy them – I’ve already heard them in a mate’s place and they’re a big step up from the Panasonic micro-system I lived with for so many years.

The “buy better speakers first” argument is absolutely valid, yet swapping boxes again means another month of couriers, repacking, and living with TV sound while I hunt for the next candidate. At 51 I’d rather start listening now and upgrade later when I’ve learnt what I actually crave in a speaker.

So, unless someone can point to an integrated under €1 k that simultaneously:

- does 150-200 W/4 Ω with good current delivery

- keeps SINAD ≥100 dB

- remains a valid choice for the time I choose to upgrade the speakers and buy the better ones

…I’ll take the first road: keep the Teufels, add a clean class-D power amp, and run the DX5 II for headphones.
If that chain still leaves me wanting in a year or two, the amp will happily drive whatever fancier speakers I audition next.

Does anyone see a hole in that plan – reliability issues with the Topping/3E/Fosi boxes, fan noise, ground-loop gremlins, anything? Real-world feedback is appreciated; paper specs only tell half the story..

I need enough clean power on tap that the music never sounds squeezed—big dynamic jumps, bass that punches without bloat, and enough headroom that I can turn it up to “live” level.

I’m told the heavier the transformer, the harder the amp can hit when the music demands it—more punch, more grip, more headroom...
