Loudspeaker isolation!
- Thread starter Purité Audio
- Start date
I wonder if Per-Arne was the first one on the market with these sylomer feet. I have the standard ones and the thicker ones as well. Needed to weigh the speakers in each corner to get correct spec.
OP
- Thread Starter
- #24
I asked for a quick an easy method of calculating which durometer Sylomer would be suitable for various wights of loudspeaker.
Lewis Metcalf of AMC kindly sent me this table,
Divide the weight of the speaker into four ( four Sylomer pads) for example a fifty kilo loudspeaker divided by four equals 12.5 kilos so Sylomer SR18 would be most appropriate
Thank you again to everyone at AMC for your expertise.
Keith
Lewis Metcalf of AMC kindly sent me this table,
Divide the weight of the speaker into four ( four Sylomer pads) for example a fifty kilo loudspeaker divided by four equals 12.5 kilos so Sylomer SR18 would be most appropriate
| Description | Format | Max load (kg) | Natural frequency (Hz) | AMC Item Code |
| Sylomer SR11 | 100 x 100 x 25mm. | 10 | 12 | 707278 |
| Sylomer SR18 | 100 x 100 x 25mm. | 16 | 12 | 707279 |
| Sylomer SR28 | 100 x 100 x 25mm. | 25 | 12 | 707280 |
| Sylomer SR42 | 100 x 100 x 25mm. | 40 | 12 | 707368 |
| Sylomer SR55 | 100 x 100 x 25mm. | 50 | 12 | 707241 |
Keith
OP
- Thread Starter
- #25

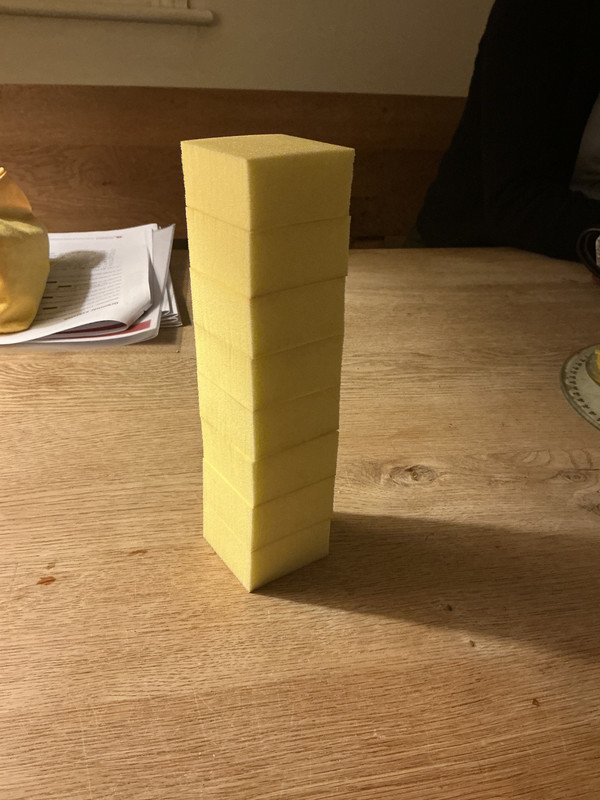

The Sylomer SR-11 tower of power!
It is quite odd, it feels as though it could be damp, though that might be because we have had 41 consecutive days of rain!
About £3.00 per block, now if I only had some speakers to place them under, wait who’s at the door?
The AsciLab A6B delivery man!
Matt Black and matt White!
Keith
It is quite odd, it feels as though it could be damp, though that might be because we have had 41 consecutive days of rain!
About £3.00 per block, now if I only had some speakers to place them under, wait who’s at the door?
The AsciLab A6B delivery man!
Matt Black and matt White!
Keith
Where did you get them from, a UK retailer or from the continent?
I did a search a little bit on Google, and all I can find is seemingly a handful of German companies who are more in the business of selling B2B than B2C.
Then there's Amazon where I found those found those
Seems like a smaller diameter with a varying hardness depending the weight of the speaker unit.
OP
- Thread Starter
- #27
I bought these from a UK retailer, but you can I believe buy directly from AMC MECANOCAUCHO.
Keith
Keith
chips666
Active Member
op maat gesneden Sylomer pads en strips
Door pads en strips op maat van een specifieke toepassing te versnijden kunnen we flexibele oplossingen aanbieden.
geluidsisolatiedokter.be
That's exactly what I'm talking about, companies where you fill a contact form instead of just being able to add items to a cart and just buy.op maat gesneden Sylomer pads en strips
Door pads en strips op maat van een specifieke toepassing te versnijden kunnen we flexibele oplossingen aanbieden.
chips666
Active Member
OP
- Thread Starter
- #31
I am sure they work, but one would have to manufacture an extreme edge case, of poorly designed loudspeaker on resonant surface, fortunately I have neither of those.
Keith
Keith
You just need a resonant surface.
