Kef R3 Bookshelf Speaker Review (Erin's Audio Corner)

hardisj

Major Contributor
Reviewer
Joined
Jul 18, 2019
Messages
2,534
Likes
11,758
Location
North Alabama
Note: I put my site in the title so this thread wouldn't get confused with Amir's test which can be found here:
https://www.audiosciencereview.com/forum/index.php?threads/kef-r3-speaker-review.12021/
Also, to get ahead of things, to address one difference between Amir's and my data: I modified my microphone boom to eliminate reflections from the mic holder which otherwise results in comb filtering above 2kHz. Discussed here.

Okay, here we go.

My full writeup can be found on my site here:
https://www.erinsaudiocorner.com/loudspeakers/kef_r3/




Kef R3 Bookshelf Speaker Review
  • Sunday, Mar 14, 2021

Foreword / YouTube Video Review
The review on this website is a brief overview and summary of the objective performance of this speaker. It is not intended to be a deep dive. Moreso, this is information for those who prefer “just the facts” and prefer to have the data without the filler.



However, for those who want more - a detailed explanation of the objective performance, and my subjective evaluation (what I heard, what I liked, etc) - please watch the below video where I go more in-depth.



Information and Photos

I have provided an introduction to this speaker on my YouTube channel and provided below.


The Kef R3 is 3-way compact bookshelf speaker. It features a 6.5-inch midwoofer and a 5-inch concentric “Uni-Q” midrange/tweeter. The R3 features a rear port and currently comes in three colors: gloss black, gloss white, and Walnut. The R3 comes with a removable grille as well.
Price per pair is approximately $2000 USD.

















CTA-2034 (SPINORAMA) and Accompanying Data
All data collected using Klippel’s Near-Field Scanner. The Near-Field-Scanner 3D (NFS) offers a fully automated acoustic measurement of direct sound radiated from the source under test. The radiated sound is determined in any desired distance and angle in the 3D space outside the scanning surface. Directivity, sound power, SPL response and many more key figures are obtained for any kind of loudspeaker and audio system in near field applications (e.g. studio monitors, mobile devices) as well as far field applications (e.g. professional audio systems). Utilizing a minimum of measurement points, a comprehensive data set is generated containing the loudspeaker’s high resolution, free field sound radiation in the near and far field.

For a detailed explanation of how the NFS works and the science behind it, please watch the below discussion with designer Christian Bellmann:

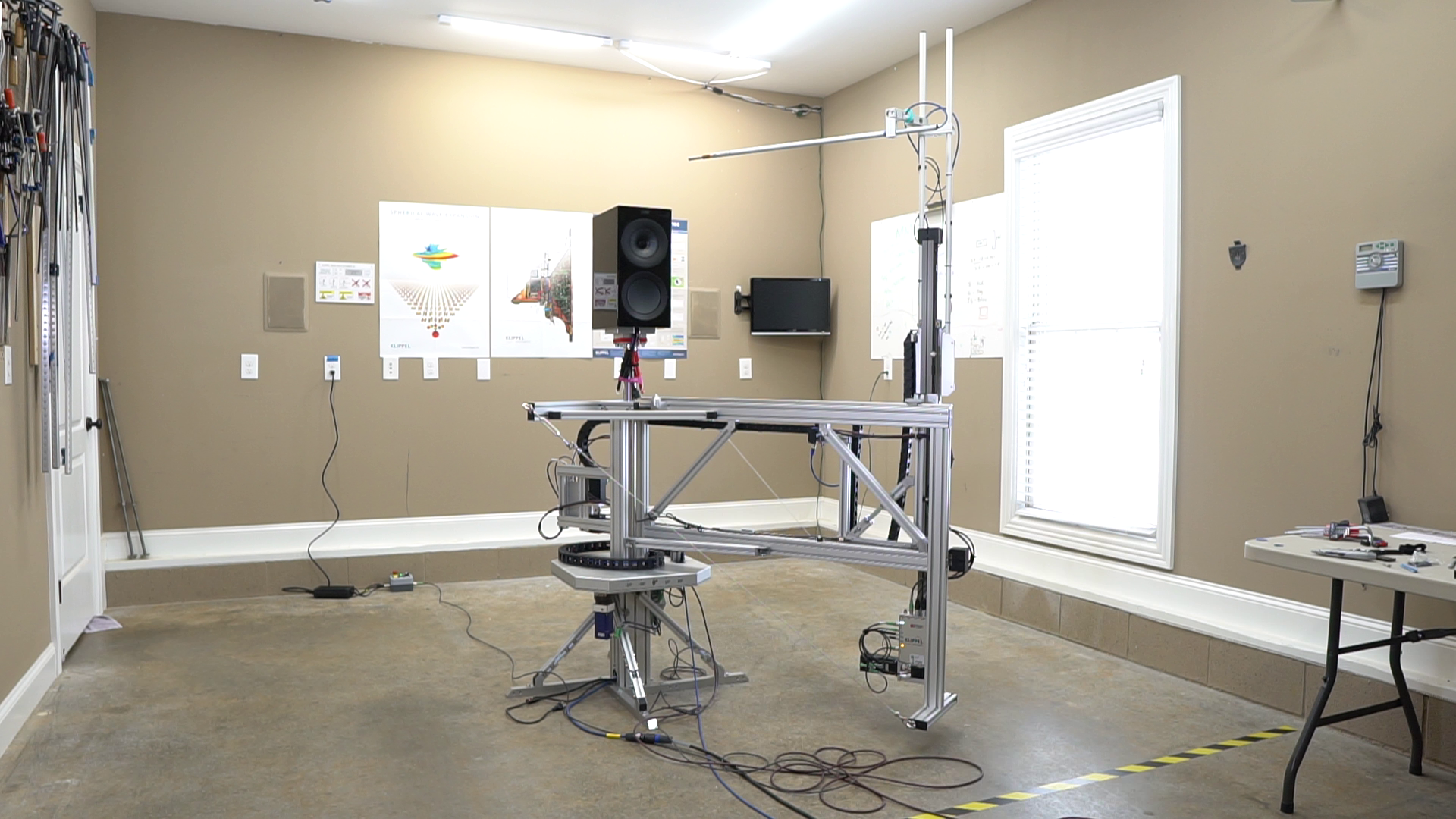

A picture of the setup in my garage:

The reference plane in this test is at the tweeter/midrange. The speaker was tested in ported configuration (the port was not sealed). All testing in this review was done without grille.

Measurements are provided in a format in accordance with the Standard Method of Measurement for In-Home Loudspeakers (ANSI/CTA-2034-A R-2020). For more information, please see this link.

CTA-2034 / SPINORAMA:


Early Reflections Breakout:


Estimated In-Room Response:

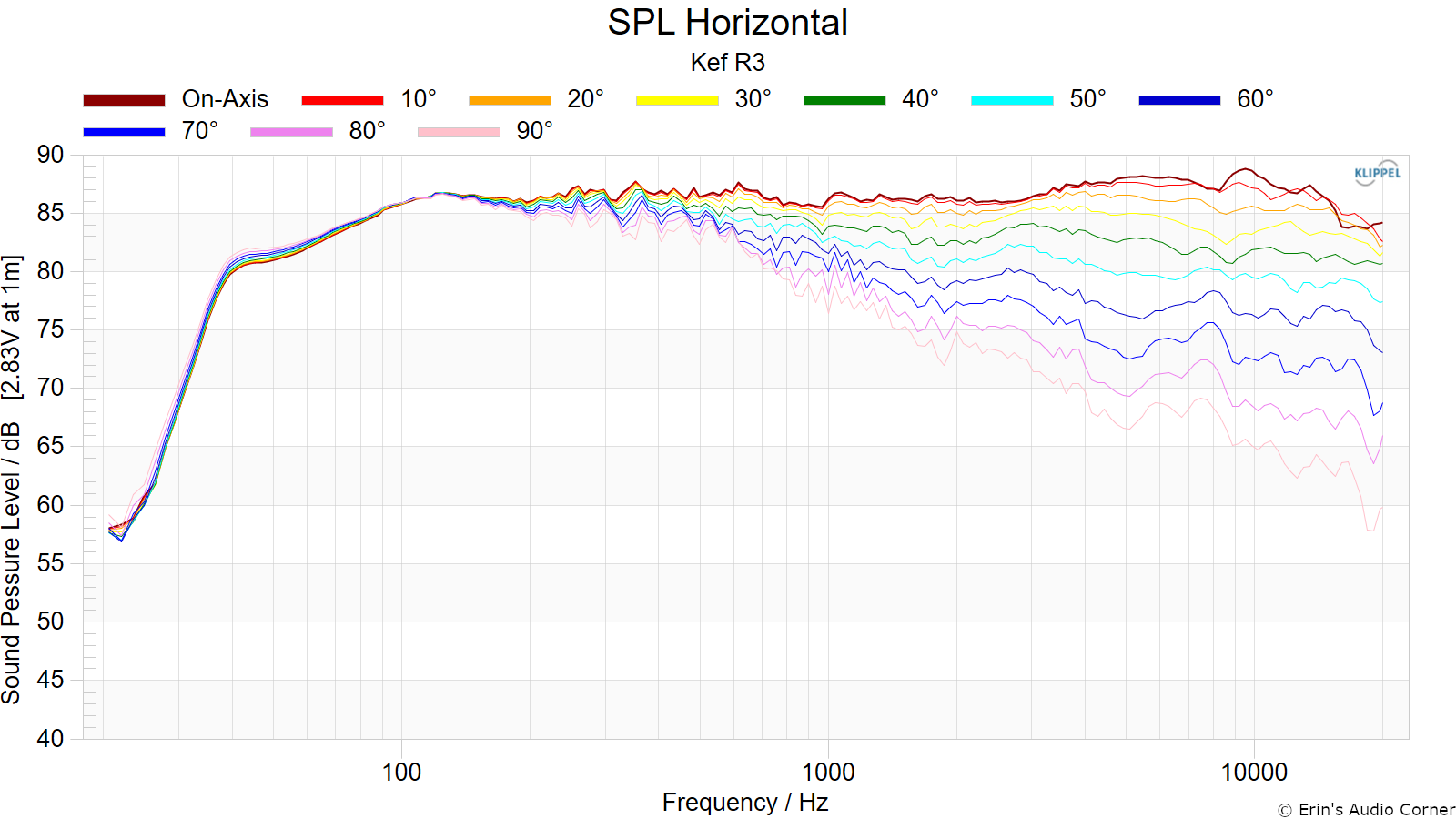

Horizontal Frequency Response (0° to ±90°):

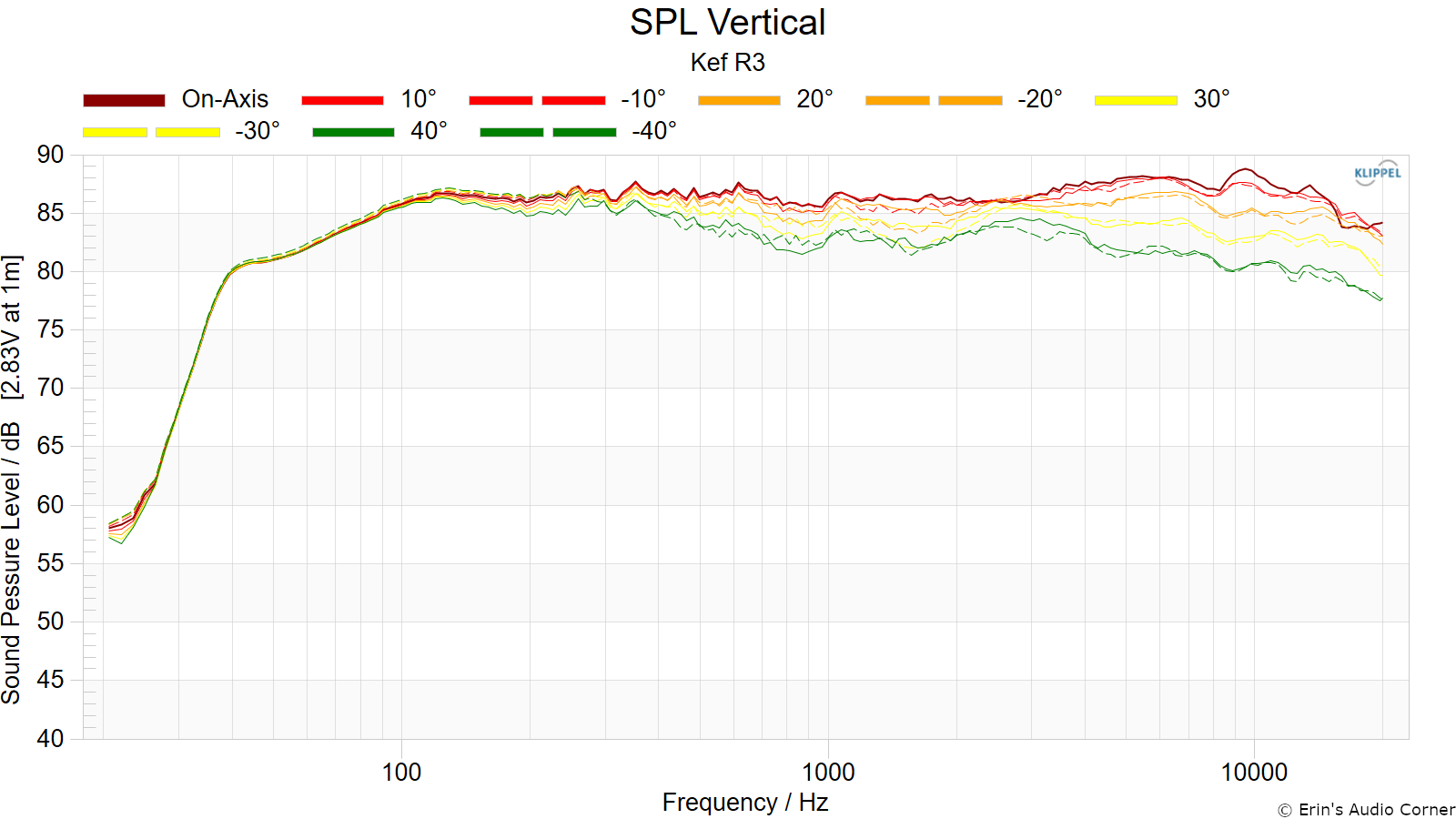

Vertical Frequency Response (0° to ±40°):


Horizontal Contour Plot (not normalized):

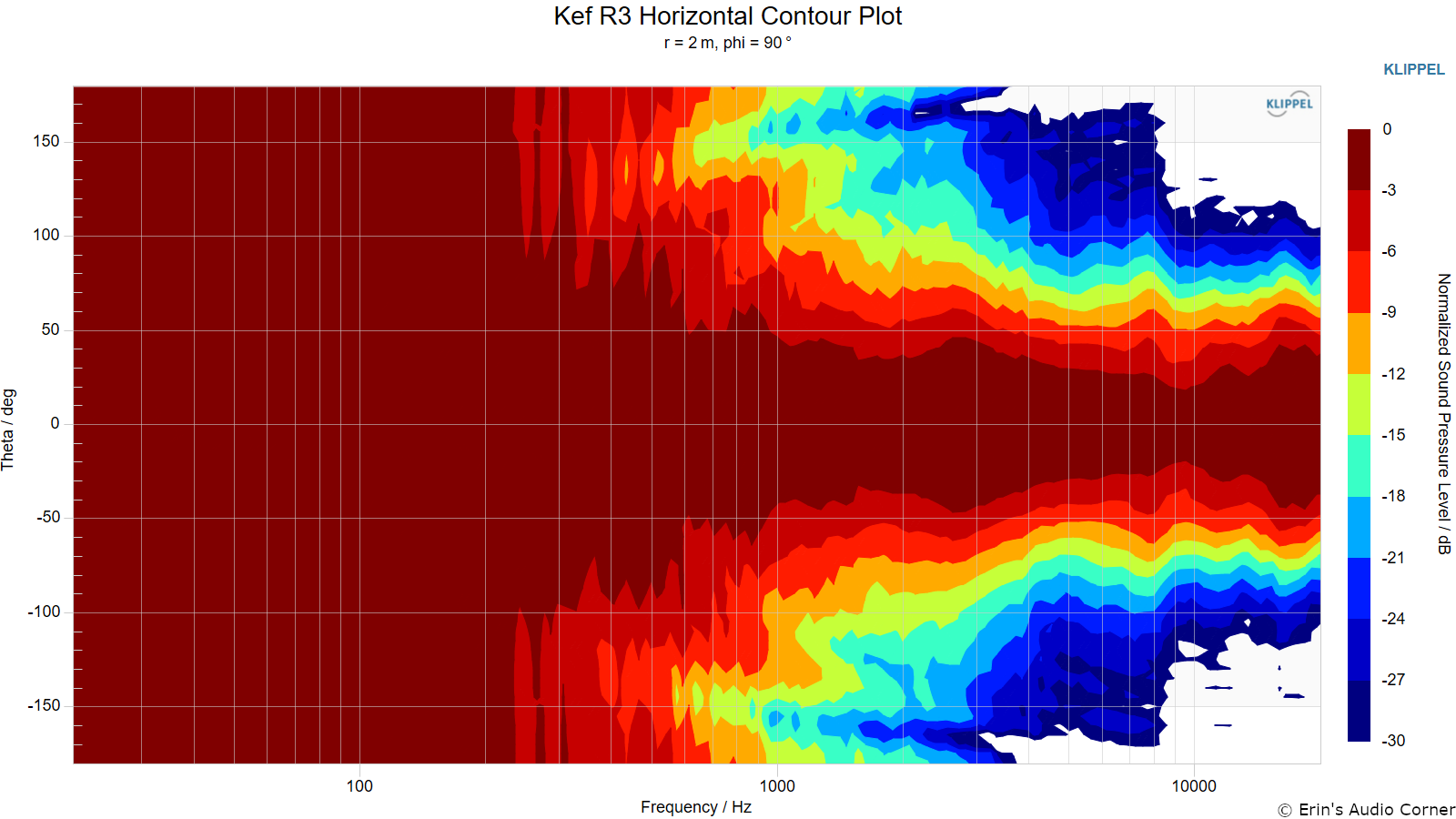

Horizontal Contour Plot (normalized):

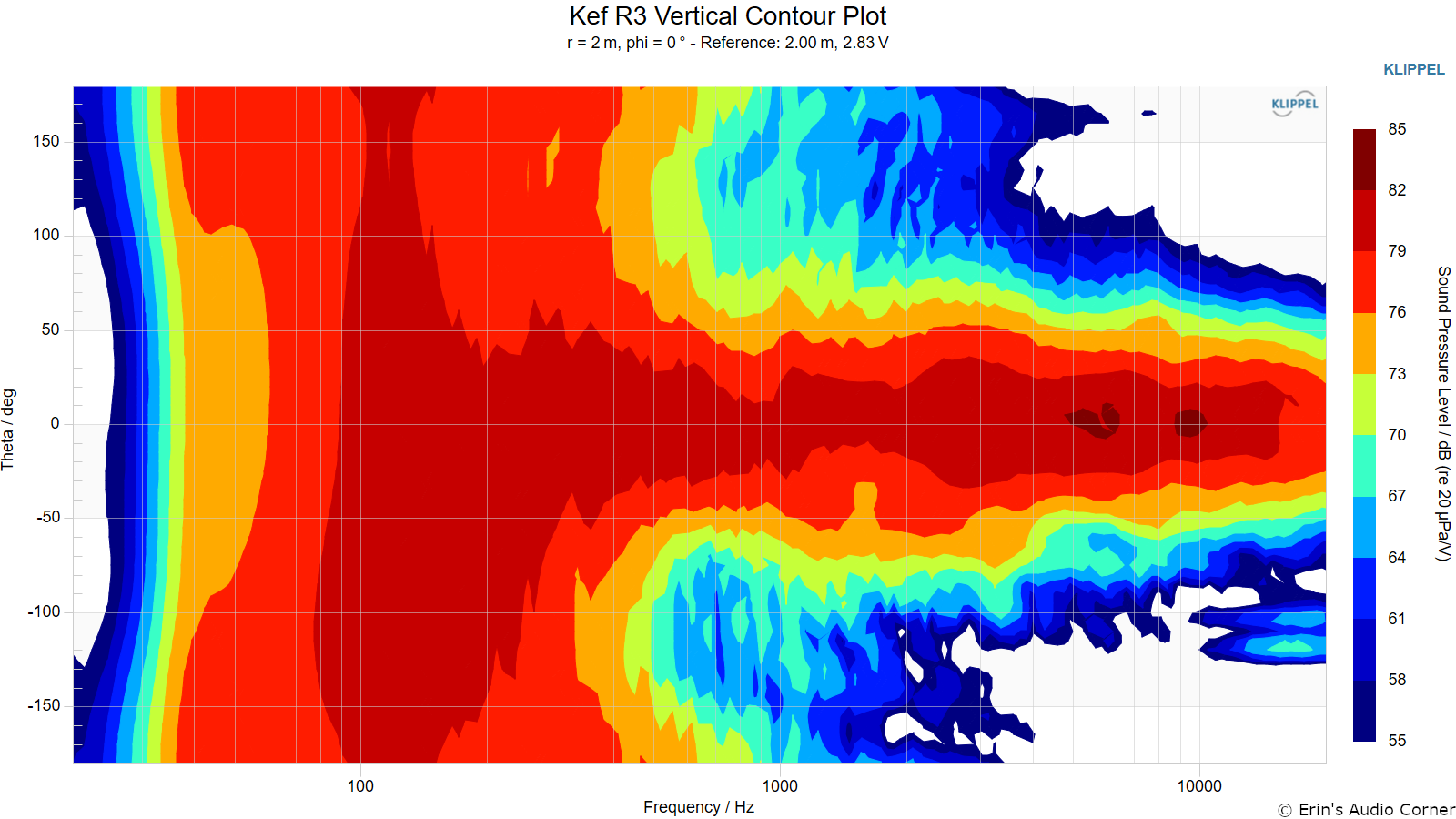

Vertical Contour Plot (not normalized):


Vertical Contour Plot (normalized):




Additional measurements

Near-Field Response

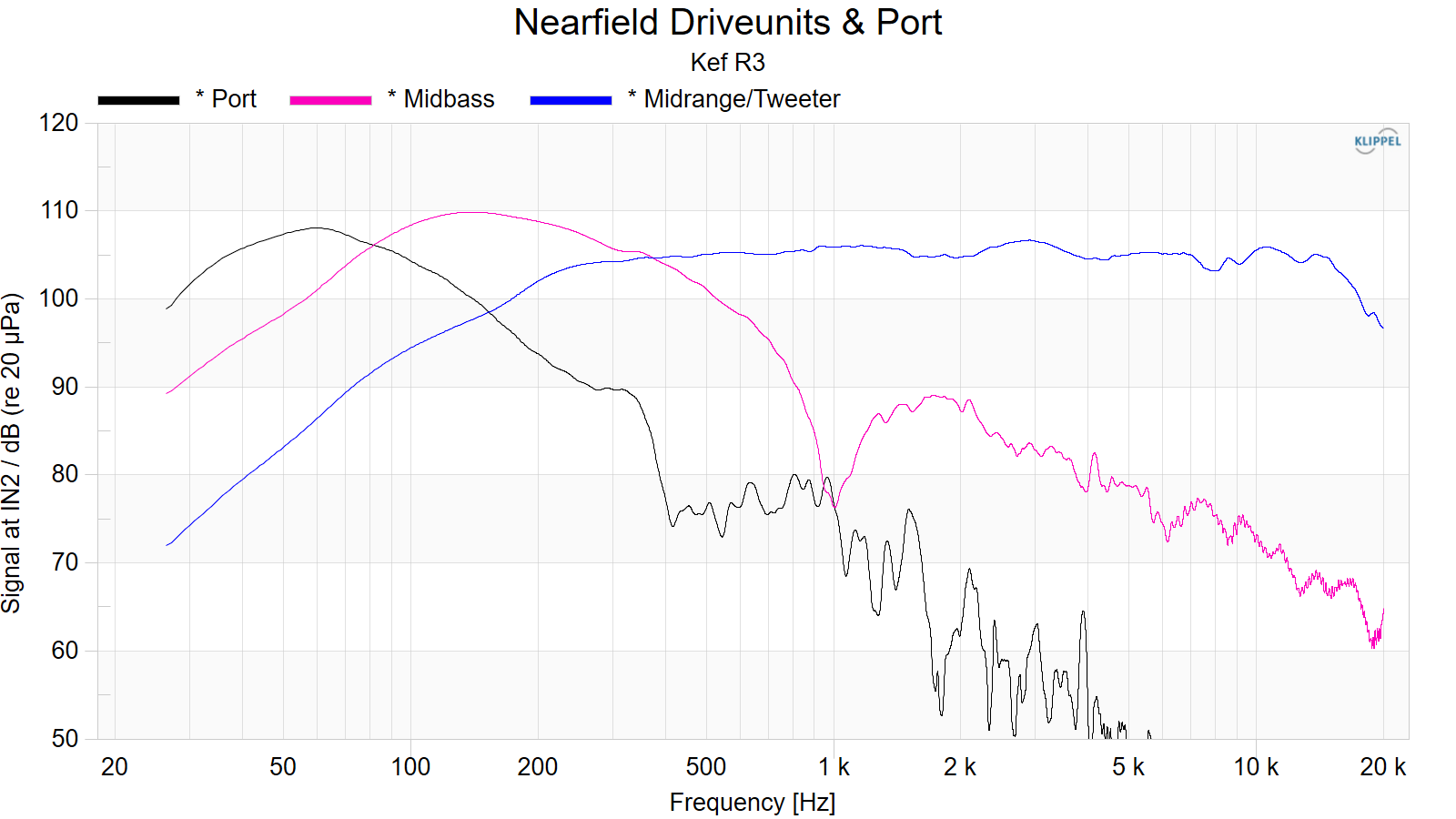

Nearfield response of individual drive units:

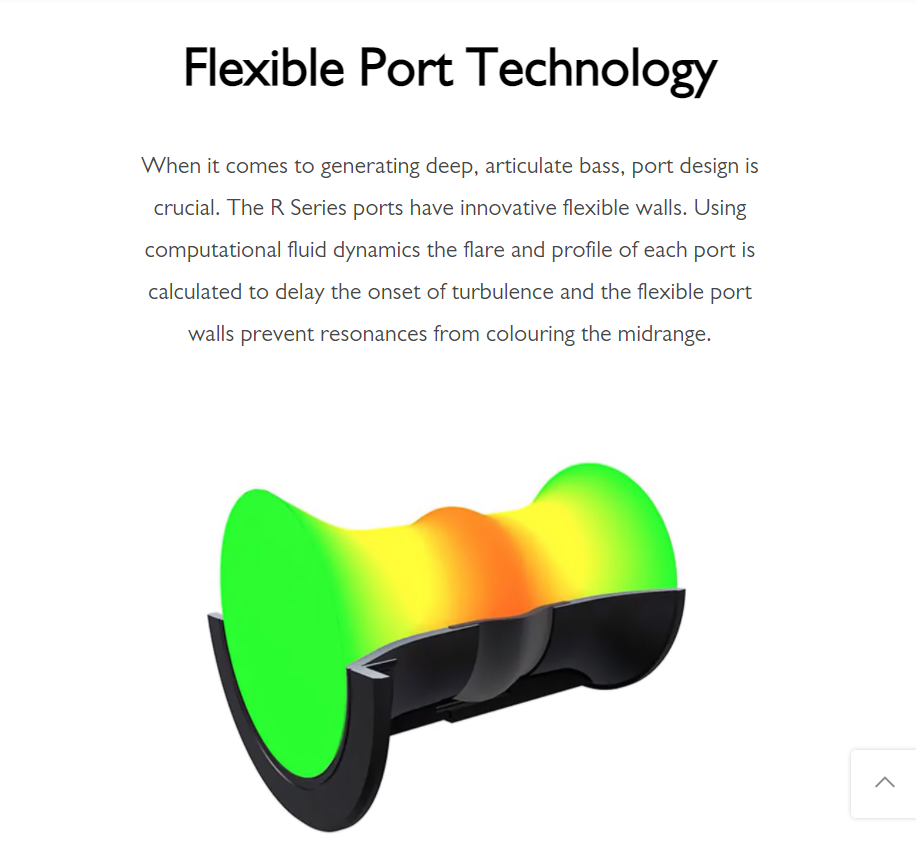

Note the lack of a strong resonance from the port. I mention this because many speakers have ports that cause resonance in the midrange. Most measurements do not provide sufficient resolution to show these issues. However, the Klippel NFS does. And in the case of the Kef R3, there are no such issues. This is attributed to the legitimate engineering of the port, dubbed by Kef as “Flexible Port Technology”, which is detailed in the graphic below.




Harmonic Distortion
Harmonic Distortion at 86dB @ 1m:


Harmonic Distortion at 96dB @ 1m:



“Globe” Plots

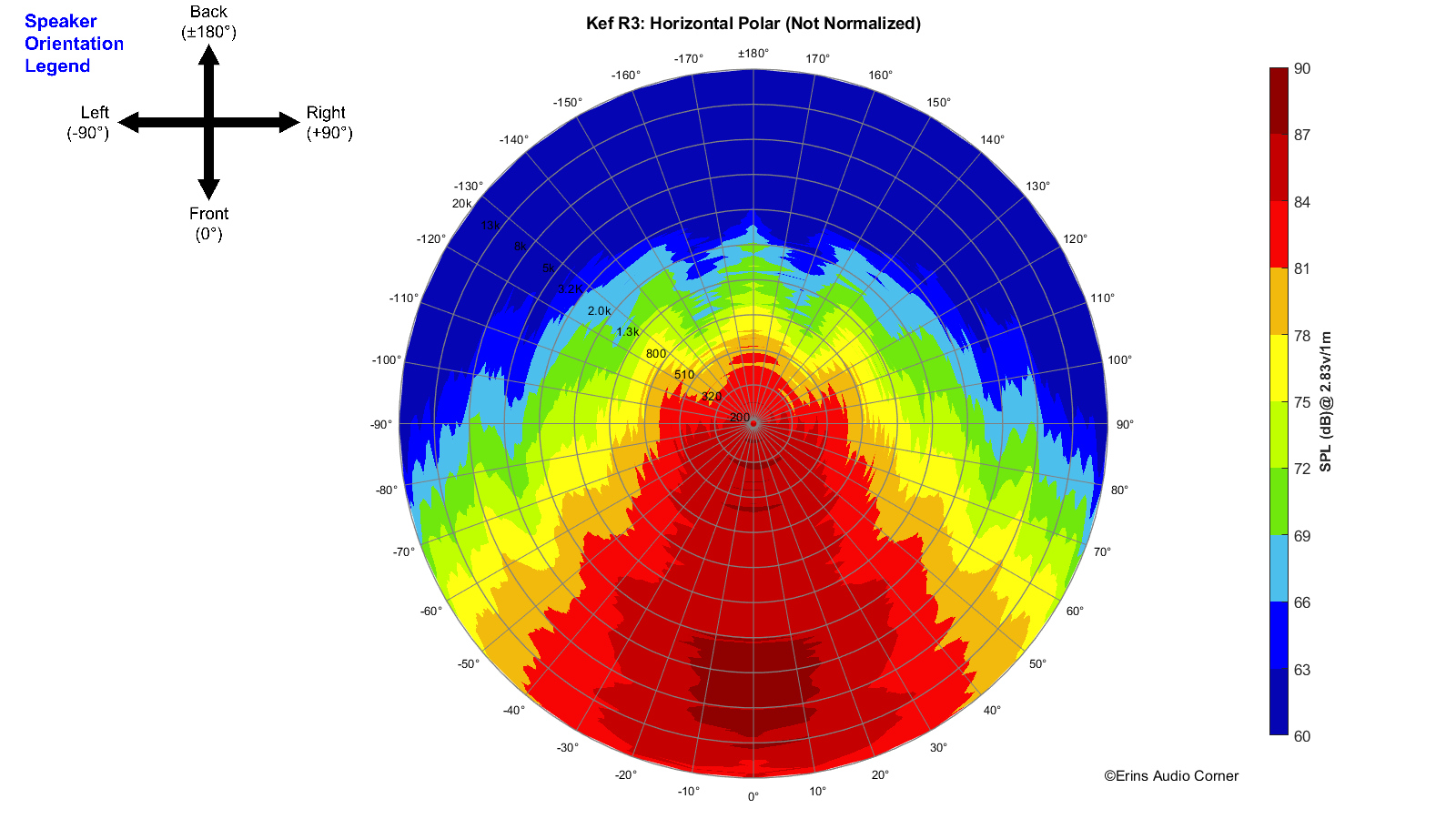

Horizontal Polar (Globe) Plot:
This represents the sound field at 2 meters - above 200Hz - per the legend in the upper left.

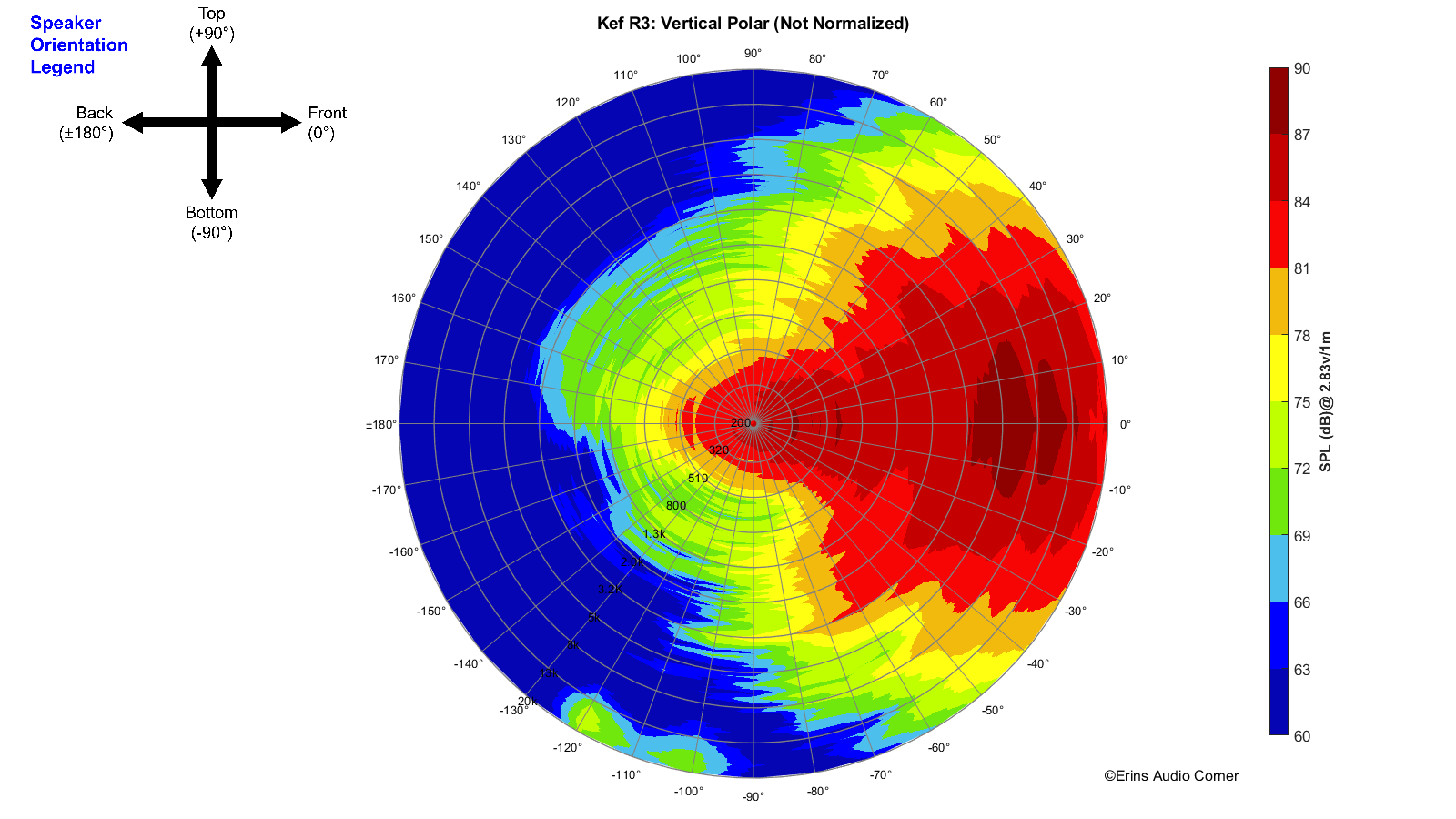

Vertical Polar (Globe) Plot:
This represents the sound field at 2 meters - above 200Hz - per the legend in the upper left.






Shadow Flare Position Impact on Frequency Response

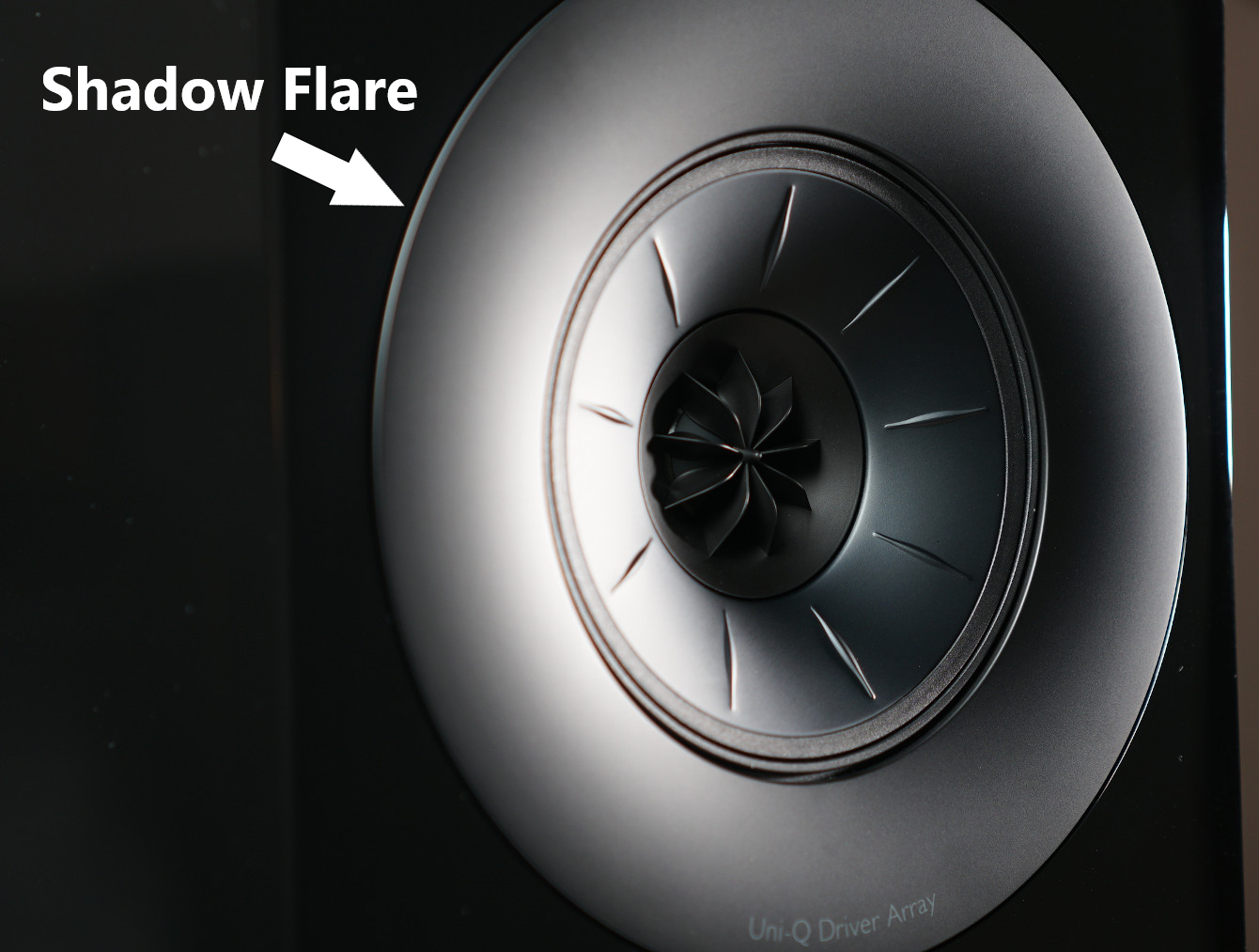

The shadow flare is the plastic trim ring that surrounds the concentric drive unit and helps provide a smooth transition from the midrange cone to the baffle.


The trim ring is designed to sit flush with the midrange cone; pushed all the way in toward the drive unit. In some cases, it has been discovered that the speakers have arrived with the shadow flare positioned outward about 1mm (thus, sitting “above” of the baffle). This is believed to simply be from shipment and is an easy fix. Simply push the flare inward, going around the ring until it is properly seated (resulting in a 0.5mm lip between the flare and the speaker cutout).

Unfortunately, as has been evidence by some in-room measurements I have seen, many people are not aware that this is an issue and think nothing of it and the ill-effects of the improper positioning of the flare. Therefore, I did some investigating into the matter and have provided the results below.





As you can see, the position of the flare matters. As illustrated by the red curve, when the flare is sticking above the surface of the baffle and not pressed all the way in - to align with the midrange cone - the response dips as much as 5dB at approximately 1.3kHz. Per the blue curve, when the flare is pushed inward to align with the baffle face - but still not pushed all the way in - the response dips about 2dB at 1.1kHz. When the flare is pushed all the way in (black curve), the 1-2kHz region dip is resolved and instead you have a mild 0.50dB dip centered around 700Hz.

The bottom line is If the shadow flare isn’t pushed all the way in there is a dip in response. One would think that flush with the baffle would be the way to go. But nope. And when you look more closely at the flare/midrange transition point it makes sense why. The shadow flare pushed all the way in (leaving a small lip between the flare and the speaker cutout) makes the flare flush with the surround edge. Any position out from that - like flush with the baffle - leaves a small gap and causes the response to dip ~1kHz. The further out the shadow flare, the more drastic the dip. You want the shadow flare to meet the drive unit, not the baffle. So, make sure the trim ring is pressed in and not sticking out above the baffle.



In-Room Measurements from the Listening Position

Below is a photograph of the speakers set up in my living room. The speakers were placed approximately 1.2m from the front wall (not the cabinets; but the actual wall). The listening position was approximately 4 meters from the speakers.

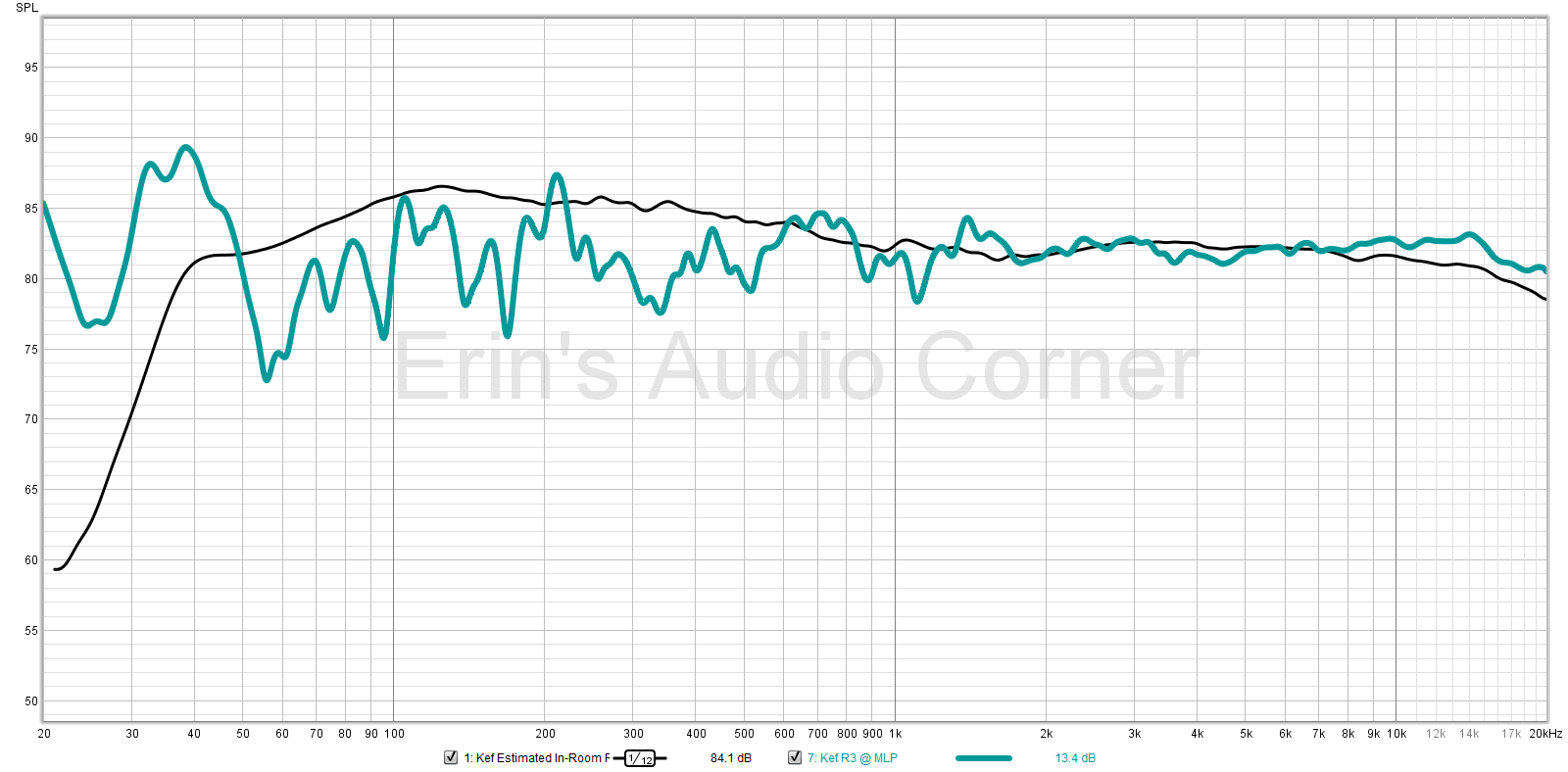

Below is the actual measured in-room response (with no DSP correction). This is a spatial average taken over approximately 1 cubic foot. As you can see, the actual in-room response aligns quite well with the prediction generated from the SPIN data. Pretty cool to see how anechoic measurements can reliably predict the actual in-room response. I feel many others often overlook this powerful benefit of the SPIN data.

Black = Predicted In-Room Response from SPIN data
Teal = Actual In-Room Measured Response from Main Listening Position



The prediction is quite accurate down to approximately 500Hz. Below this we see more deviation from the prediction. This is expected. The room takes over as you enter mid-to-low frequencies. Aside from the room dimensions, my couch, the back wall behind where I sit, the end table and the lamp near the listening position all influence the measured response. The dip from 150-400Hz is caused by the rear wall and/or couch as when the microphone is moved into the center of the room the dip fills in. Overall, what we see here is that the anechoic data can be conveniently used to predict the actual response one would expect to see in their own room.



Parting / Random Thoughts
I encourage you to watch my YouTube review for more details but a quick few notes:
  • I love this black on black colorway.
  • As I mentioned above, there is no coloration or resonance caused by the port. I note this because many of the speakers I have tested have midrange resonances caused by the port or passive radiator. There is no hint of that at all in this speaker. A welcomed change.
  • The data does not indicate any resonances from anything. It is quite a neutral response, aside from the lifted treble on-axis. Moving to about ±10° horizontally and vertically, the treble is slightly reduced to provide a more neutral signature. For that reason, I would encourage you to experiment with toe-in and placement. You may find you like being on-axis or you may find you prefer the speakers toed in or out slightly. However, I would not go beyond ±20° as the response begins to drop above 8kHz.
  • Running these speakers full-range (20Hz to 20kHz), they have nice kickdrum but not quite enough. The harmonics of the kickdrum, however, are quite nice and give a nice fullness to the kicks, even though the fundamental notes (50-60Hz) need help.
  • Along that same token, I find these speakers to not do well in a “dead” room. They did much better in my living room than they did in my home theater, where the latter has copious sound absorption throughout.
  • At approximately 4m listening distance, I found the max SPL to be about 95dB. Exceeding this resulted in an unpleasant sound for a variety of music. 95dB in-room at 4m is pretty loud and when you pair these speakers with a subwoofer, the max SPL is increased a bit more.
  • In John Mayer’s “Free Fallin” (a live Tom Petty cover), I loved the timbre of his voice. And the air of the sound produced by the audience.
  • The layering of these speakers is unmatched, to date. The soundstage isn’t terribly wide (I prefer a wider soundstage). However, the layering and the overall depth of the soundstage is incredible. The soundstage extends deep from front to back (with the right source music, of course). It is one of my favorite things about these speakers. A good example of this is in Fleetwood Mac’s “The Chain” as well as Phillip Bailey’s “Easy Lover” (at the 3:00 mark, where Phil Collins gets down on the drums).
  • 2.5kHz sounded harsh to me and I couldn’t tell for sure if it was the speaker or the room. The data does not indicate it being the speaker itself. And in that same vein, the only thing in the data that might make sense as to a culprit is the expansion of directivity around this point. This could simply be coincidence.
  • While using the speakers full-range is OK, I found that when I added a subwoofer (SVS SB-2000 Pro and SB-3000, separately), the entire sound became immensely more enveloping. Somehow, it even seems to increase the overall sense of “space” these speakers provide with the right recording. For that reason, I do suggest a subwoofer with these speakers. I suggest a crossover in the neighborhood of 60-80Hz. I’ve had good luck with the SVS subwoofers I’m currently reviewing and with their built-in DSP, I was able to resolve a couple room modes easily and take the system to a new level of fidelity.
  • I used these speakers with the Parasound NewClassic 200 Integrated Amplifier. This integrated amplifier has 110w @ 4 and 8 ohms and was adequate to provide the output levels I needed at 4 meters listening distance. However, if you have a seating distance of more than 4m and want to listen at louder than - say - 95dB, I would suggest more power. I was also able to use the crossover within the Parasound to split the signal between the speakers and the SVS subwoofer.
  • Make sure to push the trim rings all the way in.
As stated in the Foreword, this written review is purposely a cliff’s notes version. For more details about the performance (objectively and subjectively) please watch the YouTube video.



Support / Contribute
If you like what you see here and want to help me keep it going, please consider donating via the PayPal Contribute link located below. Donations help me pay for new items to test, hardware, miscellaneous items and costs of the site’s server space and bandwidth. All of which I otherwise pay out of pocket. So, if you can help chip in a few bucks, know that it’s very much appreciated.
https://www.erinsaudiocorner.com/contribute/

Last edited:

dfuller

Major Contributor
Joined
Apr 26, 2020
Messages
1,385
Likes
1,747
Nice review, Erin - much appreciated as always.

Anyway -this has bugged me for a second about the KEF stuff. What is going on with the slope down in the bass? Amir's measurements on other KEF models show this as well.


dougi

Senior Member
Joined
May 31, 2020
Messages
464
Likes
356
Location
ACT, Australia
For some reason none of the plots are showing up at the moment, either here or on Erin's page. Hosting problem?

Never mind, must be my end. Working on my phone but not the work PC.


napilopez

Major Contributor
Forum Donor
Joined
Oct 17, 2018
Messages
1,913
Likes
7,235
Location
NYC
And, as you can see, my data now has the corrected ER/ERDI calculation. :)
Yep =] To be clear, I recalculated the Amir's ER and ERDI too, as always when i post a REW comparison.

I'm still amazed by how much of a difference such a tiny change in the shadowflare position can have. That less than 1 mm can have a 3-4dB difference at 1kHz is wild.


whazzup

Senior Member
Joined
Feb 19, 2020
Messages
493
Likes
361
@hardisj
A very interesting observation you had was your preference for how the speakers sound between your 2 rooms. Did you happen to have measurements comparing the 2 rooms? Apologies if you've already done so somewhere. Might be highly instructional to see how R3 reacts with a live vs dead room.

Last edited:

thewas

Major Contributor
Forum Donor
Joined
Jan 15, 2020
Messages
3,074
Likes
6,588
First of all, again super review Erin, many thanks!
2.5kHz sounded harsh to me and I couldn’t tell for sure if it was the speaker or the room. The data does not indicate it being the speaker itself. And in that same vein, the only thing in the data that might make sense as to a culprit is the expansion of directivity around this point. This could simply be coincidence.
Funnily since yesterday I am experimenting with a 2,5 kHz BBC/presence dip per EQ on both my LS50 pairs (Anniversary and Meta) as I was analysing the in room responses of a Revel loudspeaker of a member here and till now I enjoyed it with many recordings, sweetening them like a glutamate flavoring.
My theory for now is that most recordings are mixed and mastered with non concentric driver loudspeakers that show a dip in that region in their vertical radiation and sound power which they of course partially compensate during the production process.
If you or others want to test it you can try with one PEQ like 2,5 kHz, -3dB, Q=2.


thewas

Major Contributor
Forum Donor
Joined
Jan 15, 2020
Messages
3,074
Likes
6,588
Did you see the Andrew Jones vid where is says the BBC dip is just from bad driver matching? He really seemed to dismiss the myth.
As said it happens even with good directivity matching on non coincident mid/tweeter like for example on Revel loudspeakers in the sound power due to the vertical cancellation at some angle.

Here for example also on his own loudspeaker which is really liked from Amir and several owners here



not that it has perfect directivity matching, but nevertheless.


jonfitch

Senior Member
Joined
Sep 2, 2019
Messages
320
Likes
361
I think the BBC dip was just an accidental design that worked. Certainly ended up being more organic than the engineered dip you see in some TOTL headphones to create more sensation of soundstage.


Frank Dernie

Master Contributor
Forum Donor
Joined
Mar 24, 2016
Messages
5,748
Likes
13,128
Location
Oxfordshire
Nice review, Erin - much appreciated as always.

Anyway -this has bugged me for a second about the KEF stuff. What is going on with the slope down in the bass? Amir's measurements on other KEF models show this as well. View attachment 118287
I believe this is to compensate for room gain. Most people still do not use room compensation software and having the bass go to a low frequency but rolled off allows plenty of bass in room without it getting overblown in most people's system.
I consider it to be clever practical engineering personally.


TimVG

Addicted to Fun and Learning
Forum Donor
Joined
Sep 16, 2019
Messages
971
Likes
1,789
2.5kHz sounded harsh to me and I couldn’t tell for sure if it was the speaker or the room. The data does not indicate it being the speaker itself

It kinda does when looking at the 0-90° horizontal and vertical plots in detail.


tifune

Senior Member
Joined
Jan 18, 2020
Messages
301
Likes
165
Thanks for doing this. I believe Amir's test was missing 86/96dB THD and I've always been curious how they stack up to published spec.

I realize it's not a major priority for designers, but anyone know of such excellent vertical directivity in this price bracket from other brands? I was surprised by how even the KH80 is, but not as broad as R3. No surprise given it's price and use case I suppose but that's the closest non-Kef I've seen on ASR


astrex342

Member
Joined
Nov 26, 2020
Messages
20
Likes
26
Nice review, Erin - much appreciated as always.

Anyway -this has bugged me for a second about the KEF stuff. What is going on with the slope down in the bass? Amir's measurements on other KEF models show this as well. View attachment 118287
This is because kef wants to get lower bass even if it sacrifices bass amount. They can tune the port higher for more flat response, but it would roll off sooner


Matias

Major Contributor
Forum Donor
Joined
Jan 1, 2019
Messages
2,637
Likes
4,328
Location
São Paulo, Brazil
Just added a monthly donation to your PayPal as well. :) It is not much but hopefully it will add up through the months and years.
