Is this a ground loop or equipment issue?

JayGilb

Addicted to Fun and Learning
Joined
Jul 22, 2021
Messages
610
Likes
833
Location
West-Central Wisconsin
Have you tried to switched order from:
PC -- [USB] --> DAC -- [RCA] --> subwoofer -- [RCA] --> powered speaker
To:
PC -- [USB] --> DAC -- [RCA] --> powered speaker -- [RCA] --> subwoofer

Probably won't make a difference, but a simple enough test.


sq225917

Addicted to Fun and Learning
Joined
Jun 23, 2019
Messages
861
Likes
900
It's dc leakage across the negative pin of the pc psu. The sub completes the circuit.

OP
V

valsidalv

Member
Joined
Feb 17, 2022
Messages
12
Likes
3
Location
Canada
Have you tried to switched order from:
PC -- [USB] --> DAC -- [RCA] --> subwoofer -- [RCA] --> powered speaker
To:
PC -- [USB] --> DAC -- [RCA] --> powered speaker -- [RCA] --> subwoofer

Probably won't make a difference, but a simple enough test.
So with the reverse order I still hear the whine in the speakers even if the subwoofer is turned off. As soon as the RCA cables are hooked up the whine is audible.

OP
V

valsidalv

Member
Joined
Feb 17, 2022
Messages
12
Likes
3
Location
Canada
It's dc leakage across the negative pin of the pc psu. The sub completes the circuit.
Zolalll initially mentioned transformer hum EMI. Is this the same thing you are talking about? Could this be solved with a new PSU or a power surge bar/conditioner that has separate power banks?


Pdxwayne

Major Contributor
Joined
Sep 15, 2020
Messages
3,249
Likes
1,162
I used to have loud ground loop noise when going from
streamer (coax)-> dac (RCA) -> amp/preamp (RCA) -> power amp

The power amp have ground lift option, but did not help.

The noise was gone after I used a RCA to xlr cable in the chain
streamer (coax)-> dac (RCA) -> amp/preamp (short RCA to XLR cable, connect to long xlr cable) -> power amp (via xlr in).

Not sure if this will definitely help. But if you have Amazon account and can do free return, you can try something like this:
6 Foot - RCA to XLR (Male) Cable Pair - Canare L-4E6S Star-Quad Audio Interconnect Cable & Amphenol ACPL RCA & Neutrik Male XLR Gold Plugs - Custom Made by WORLDS BEST CABLES https://www.amazon.com/dp/B094RHFDY3/ref=cm_sw_r_apan_glt_i_SPFR86MQVM2KK9N3RT9R


vert

Active Member
Joined
May 30, 2018
Messages
222
Likes
182
Location
Switzerland

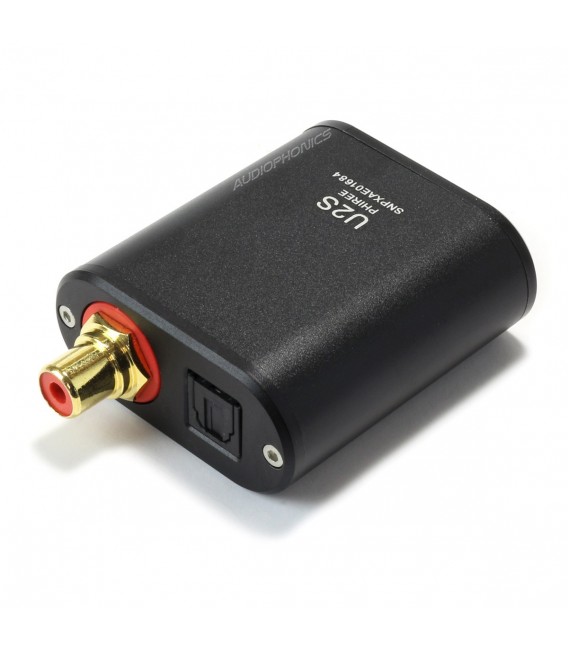

FWIW I'm going trough a similar issue, and bought this cheap USB to s/pdif converter which was well reviewed by a member here.

Hopefully it will break the ground loop, which I assume is caused by my laptop's power supply (loop disappears when running on laptop battery).

I'm not sure an audio interface always resolves ground loop issues BTW, because I briefly had an audio interface (Motu) before returning it ; at the time I hadn't identified yet the intermittent SQ issue I perceived as ground loop-related, but in retrospect I'm pretty sure it was there, as I swapped between interface and unbalanced DAC, with either device, to decide which I preferred (both sounded... identical).

There are many "hum destroyer" boxes on the pro audio market, RCA such boxes are less common. A member mentioned a Jensen box. If you're in Europe, I found this https://www.oehlbach.com/en/audio-equip/electronics/audio-linear-8. I didn't buy it, going to try the Toslink solution.


ZolaIII

Major Contributor
Joined
Jul 28, 2019
Messages
1,902
Likes
1,100
Zolalll initially mentioned transformer hum EMI. Is this the same thing you are talking about? Could this be solved with a new PSU or a power surge bar/conditioner that has separate power banks?
Yes he is (AC/DC transformer hum EMI).
I already told you going optical is the best approach. Showd you both sides (PC and standalone DAC) propositions as the foundation where to look. You don't really need balanced (normal RCA cable is perfectly fine for home use) but if you wish it then go for it (it won't resolve anything and will cost substantially more). Before buying anything try to barrow a deacent stand alone USB DAC with it's own power supply (cut the dirt in the root) to see if that's all you really need. Even using the separate power supply (like phone charger) to power the USB DAC without it's own deticated power supply line helps a lot. Buying a new PSU also won't fundamentaly resolve the problem (it just might help it become less prominent) and same goes regarding making shielding - cage on any transformer or DAC/ADC circuit (while it certainly helps).

Uh huh all this that rooten stinking hi distortion to start with sub could work as intended (it really makes you wonder).
My 30 years old Audigy 2 SB did all what it needs and good enough (there are Audigy [4-5] PCIe cards out there and are cheap now but they are old with problematic support regarding driver's so I wouldn't exactly suggest such purchase path).

OP
V

valsidalv

Member
Joined
Feb 17, 2022
Messages
12
Likes
3
Location
Canada
Yes he is (AC/DC transformer hum EMI).
I already told you going optical is the best approach. Showd you both sides (PC and standalone DAC) propositions as the foundation where to look. You don't really need balanced (normal RCA cable is perfectly fine for home use) but if you wish it then go for it (it won't resolve anything and will cost substantially more). Before buying anything try to barrow a deacent stand alone USB DAC with it's own power supply (cut the dirt in the root) to see if that's all you really need. Even using the separate power supply (like phone charger) to power the USB DAC without it's own deticated power supply line helps a lot. Buying a new PSU also won't fundamentaly resolve the problem (it just might help it become less prominent) and same goes regarding making shielding - cage on any transformer or DAC/ADC circuit (while it certainly helps).

Uh huh all this that rooten stinking hi distortion to start with sub could work as intended (it really makes you wonder).
My 30 years old Audigy 2 SB did all what it needs and good enough (there are Audigy [4-5] PCIe cards out there and are cheap now but they are old with problematic support regarding driver's so I wouldn't exactly suggest such purchase path).
Gotcha :)
The iDefender+ I am using accepts an external power supply and provides power to my DAC via a phone charger. It eliminates static hum almost entirely (although the whine I mentioned still goes through). So I will start by buying or borrowing another DAC to test over USB. If that fails to eliminate the noise I will buy a PCI-e card with optical output and use that. Assuming it's not the easiest thing to find a DAC with both USB+optical inputs as well as RCA+balanced outputs, I may lose the RCA connectors and just look for something with balanced TRS/XLR. Thank you.


ZolaIII

Major Contributor
Joined
Jul 28, 2019
Messages
1,902
Likes
1,100
@valsidalv plenty of DAC's with optical and USB inputs with both balanced - unbalanced outputs tested hire to choose from. Topping EX5 (400$ and if you find it on Amazon consider your self lucky) being one of my favourite with it's small drawbacks (narrow IR remote and BT receiver only) as a preamp with remote and source switching but different people have different taste.


Audiofire

Active Member
Forum Donor
Joined
Feb 8, 2022
Messages
157
Likes
67
Location
Denmark
The iDefender+ I am using accepts an external power supply and provides power to my DAC via a phone charger. It eliminates static hum almost entirely (although the whine I mentioned still goes through). So I will start by buying or borrowing another DAC to test over USB. If that fails to eliminate the noise I will buy a PCI-e card with optical output and use that. Assuming it's not the easiest thing to find a DAC with both USB+optical inputs as well as RCA+balanced outputs, I may lose the RCA connectors and just look for something with balanced TRS/XLR. Thank you.
Since you seem to have an electrically noisy power supply in the PC, I think that TOSLINK makes sense. If it was me, I would buy RME Digiface USB for that. But it's because I like their good ASIO drivers, and their equipment is also really good for recording music. You can then connect a good audio interface that has TOSLINK I/O to the Digiface USB. There is Creative Sound Blaster Z SE, but I just don't like PCI-e sound cards.

I wouldn't use the iDefender method, since it's not really a solution in my opinion. Keep in mind that if you connect USB and RCA in the same DAC, you won't be able to solve the problem with a noisy power supply in the PC.
