How to use Hypex Ncore NC122MP (NC252MP) in Mono BTL mode.

[Progronom]

Hi! There is an NC122MP (in the future NC252MP). I don't understand how to connect one balanced channel to mono BTL mode.

Here are the recommendations for connecting NC122MP (NC252MP) to mono BTL mode. Pic.1

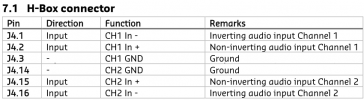

Here are his input pins. Pic.2

How do I connect one balanced channel to mono BTL mode? I.e. which input pins should I connect three balanced outputs to:

"Out +" ---> Pin J4.?
"Out -" ---> Pin J4.?
"Gnd" ---> Pin J4.?



[NTK]

Please see this post for the schematic of an adapter cable.
www.audiosciencereview.com/forum/index.php?threads/buckeye-amps-new-us-based-hypex-multichannel-amplifier-builder-line-up-announcement.16835/page-36#post-731041



[Progronom]

Please see this post for the schematic of an adapter cable.
www.audiosciencereview.com/forum/index.php?threads/buckeye-amps-new-us-based-hypex-multichannel-amplifier-builder-line-up-announcement.16835/page-36#post-731041

Thanks. Judging by this scheme of yours, the answer to my question is as follows:

"Out +" ---> Pin J4.2 and Pin J4.16
"Out -" ---> Pin J4.1 and Pin J4.15
"Gnd" ---> Not used in J4 (H-Box Connector)

So, in my case, you can do this:

Connect J4.2 and J4.16 with a jumper, and connect "Out+"
Connect 4.1 and J4.15 with a jumper, and connect the "Out -"



[pma]

Meaurements of Hypex NC252MP in bridge-tied load (BTL)

Following the discussion in the NCx500 review thread, I was curious how my PMA-NC252MP amplifier based on NC252MP module would perform in a bridged configuration. Original Hypex datasheet allows for this configuration, as we can see in the following part from the datasheet: It declares...

www.audiosciencereview.com



[NTK]

Thanks. Judging by this scheme of yours, the answer to my question is as follows:

"Out +" ---> Pin J4.2 and Pin J4.16
"Out -" ---> Pin J4.1 and Pin J4.15
"Gnd" ---> Not used in J4 (H-Box Connector)

So, in my case, you can do this:

Connect J4.2 and J4.16 with a jumper, and connect "Out+"
Connect 4.1 and J4.15 with a jumper, and connect the "Out -"

Correct.
