I am looking to decide what suits me better with this two audio interfaces.
A comparative to know in what parts each of them are better than the other.
I don't care about what software or plugins that comes with each is better or the compatibility of the drivers, just the technical audio stuff.
If with the headphones one is better than the other, if preamps are better and why.

iD44 - 20in / 24out Audio Interface - The best just got better

The iD44 combines enhanced audio performance, new pro features, and a sleek design, delivering console-quality sound.

audient.com

vs

UltraLite-mk5 | MOTU.com

The all-new UltraLite-mk5 is a ground-up redesign of MOTU's award-winning 18 x 22 half-rack USB audio interface for macOS, Windows and iOS.

motu.com



[voloff]

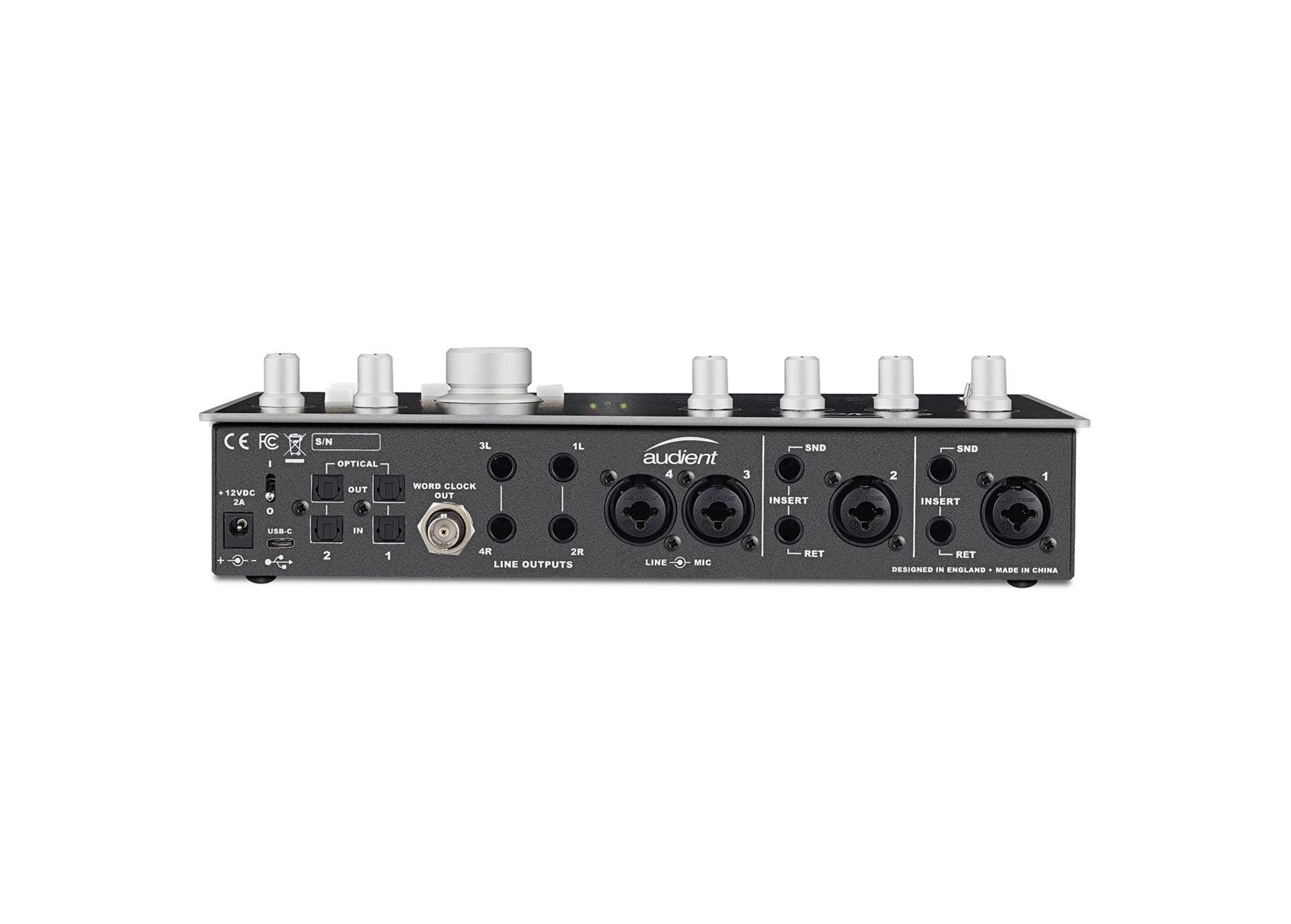

Audient id44 review​

Specifications​

Microphone preamplifier

MIC GAIN:	0 to +60 dB
LINE GAIN:	-10 to +50 dB
PHANTOM POWER:	48v +/-4v @ 10mA/Channel (12VDC only)
MIC EIN:	-126dBu
CMRR:	>80dB @ 1kHz
MAXIMUM INPUT LEVEL:	+18 dBu
INPUT IMPEDANCE (Mic):	3k Ω balanced
INPUT IMPEDANCE (Line):	10k Ω balanced
FREQUENCY RESPONSE:	±0.5 dB 10Hz to 65kHz
CROSSTALK:	<-90 dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz):	0.003% (-96dBu)
SNR:	96dB

XLR:	Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK:	TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I / Instrument Input (Channel 1):

D.I GAIN:	0 to +60 dB
MAXIMUM INPUT LEVEL:	+10dBu
INPUT IMPEDANCE:	1MegΩ Unbalanced
FREQUENCY RESPONSE:	±0.5 dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz):	<0.3%
SNR:	95dB A-weighted
1/4” JACK:	Tip (Hot) & Sleeve (Shield)

Analogue to Digital Converter (ADC 1 & 2):

(Measured via Insert Returns under AES-17)

MAXIMUM INPUT LEVEL:	+18 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL:	+18 dBu = 0 dBFS
INPUT IMPEDANCE:	>10k Ω Balanced
CROSSTALK:	-115 dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE:	±0.5 dB 10Hz to Fs/2 (Nyquist)
CROSSTALK:	-115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):	<0.0003% (-112dB)
DYNAMIC RANGE:	120 dB A-weighted
1/4” TRS JACK:	TIP (Hot), RING (Cold) & SLEEVE (Shield)

Digital to Analogue Converter (DAC 1 & 2):

(Measured under AES-17 at line outputs 1 & 2)

MAXIMUM INPUT LEVEL:	+18 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL:	+18 dBu = 0 dBFS
OUTPUT IMPEDANCE:	<100 Ω
CROSSTALK:	<-118 dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE:	±0.5 dB 10Hz to Fs/2 (Nyquist)
CROSSTALK:	-115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):	<0.0006% (-104dB)
DYNAMIC RANGE:	124 dB un-weighted, 126 dB A-weighted
1/4” TRS JACK:	TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Outputs:

(Measured under AES-17 at phones output)

MAXIMUM OUTPUT LEVEL:	+14 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL:	+14 dBu = 0 dBFS
OUTPUT IMPEDANCE:	<50 Ω unbalanced
CROSSTALK:	<-110 dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE:	±0.5dB 10Hz to Fs/2
CROSSTALK:	-115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):	<0.0008% (-103 dB)
DYNAMIC RANGE:	121 dB un-weighted, 124 dB A-weighted
MAX LEVEL INTO 30ohms:	+10.2 dBu 0.002% THD+N Power: 210mW
MAX LEVEL INTO 60ohms:	+14.2 dBu 0.001% THD+N Power: 54mW
MAX LEVEL INTO 600ohms:	+14.2 dBu 0.001% THD+N Power: 54mW
1/4” JACK:	TIP (Hot), RING (Cold) & SLEEVE (Shield)

Digital Input:

ADAT 16 CHANNELS:	44.1kHz to 48.0kHz
ADAT 8 CHANNELS (SMUX):	88.2kHz to 96.0kHz
STEREO S/PDIF:	44.1kHz to 96.0kHz

USB2.0 High Speed:

No. of INPUT CHANNELS 20:	20 (4 Analogue, 16 Digital)
No. of OUTPUT CHANNELS 24:	24 (8 Analogue, 16 Digital)
Connector:	USB Type-C
Included Cables:	1.5m USB 2.0 Type-C to USB Type-C, 1.5m USB 2.0 Type-C to USB Type-A

DSP Mixer Latency – ROUND TRIP (in-to-out):

44.1kHz	0.677ms
48.0kHz	0.625ms
88.2kHz	0.354ms
96.0kHz	0.323ms

Dimensions:​

Unit: 276mm (w) x 51mm (h) x 174mm (d)



[voloff]

​

Motu Ultralite mk5 Review​

Technical Specifications​

Sample rates	44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/guitar inputs	2 x XLR/TRS "combo" jacks 1 MΩ impedance on the line/instr inputs
Analog inputs	6 x 1/4" TRS line in (balanced)
Analog outputs	10 x 1/4" TRS line out (balanced, DC coupled)
Digital I/O	1 bank (8 ch) of ADAT optical at 1x sample rates 1 bank (4 ch) of SMUX optical at 2x sample rates Switchable to stereo TOSLink (optical S/PDIF) 1 x stereo S/PDIF on RCA (up to 96 kHz)
Computer I/O	1 x USB-C 2.0 audio class compliant Compatible with USB Type A (with adapter or C-to-A cable)
Total audio I/O	18 in / 22 out (40 total) at 1x sample rates 14 in / 18 out (32 total) at 2x sample rates 8 in / 12 out (20 total) at 4x sample rates
MIDI I/O	1 x MIDI IN 1 x MIDI OUT 16 MIDI channels to/from computer host
Headphone	1 x 1/4" TRS stereo phone
Phantom power	2 x individual +48V
Front panel	2 x XLR/TRS combo inputs 1 x 1/4" TRS headphone output 1 x potentiometer • phone/monitor vol 2 x potentiometer • mic/instr input gain 4 x switches • (2) 48V and (2) pad 1x high-resolution white OLED display for metering/status
Power	External 12-18V DC power supply 1.0A max • tip pos or neg
Dimensions and weight	(width x depth x height, enclosure only) 8.6 x 6.9 x 1.75 inches 22 x 17.5 x 4.5 cm 2.875 lbs / 1.31 kg

​

Analog I/O​

	Connector Type	Dynamic Range (A-weighted)	THD+N (unweighted)	Max Level
Line Input	1/4" TRS, balanced, tip hot	120 dB	-114 dB (0.0002%)	24 dBu
Line Output	1/4" TRS, balanced, tip hot	125 dB	-114 dB (0.0002%)	21 dBu
Mic input	XLR, balanced, pin 2 hot	115 dB	THD+N: -113 dB EIN: -129 dBu	Max level: 0 dBu Preamp gain: +74 dB
Phones	1/4", TRS stereo	118 dB	-110 dB (0.0003%)	Max level: 14 dBu Output Impedance: <1 Ohm

​

UltraLite-mk5 Feature Highlights​

• 18 x 22 USB audio interface with DSP, mixing and effects
• Superb analog audio performance driven by ESS Sabre32 Ultra™ DAC Technology
• Ultra-low latency for host software processing
• Precision front-panel metering for all analog I/O with high-resolution OLED display
• 2x mic/line/hi-Z guitar inputs on combo XLR/TRS
• Individual preamp gain and 48V phantom power for each mic input
• Measured -129 dB EIN on mic inputs
• 10x balanced, DC-coupled 1/4-inch TRS analog outputs with 125 dB dynamic range
• Hardware (direct) monitor mixing for each analog output pair (6 mix busses)
• 6x balanced 1/4-inch TRS analog inputs with measured 120 dB dynamic range
• 1x optical digital I/O (8-channel optical or 2-channel TOSLink)
• 2x RCA S/PDIF digital I/O
• 1x headphone out (driven by ESS converters) with independent volume control
• MIDI in/out
• Support for 44.1 to 192 kHz sample rates
• Driver loopback for capturing host output, live streaming and podcasting
• DSP-driven 22 x 6 monitor mixer (separate monitor mix for each analog output pair)
• On-board effects including reverb, 4-band parametric EQ and dynamics
• Rugged steel construction
• Rack-mountable as a single unit or side by side (mounting kits sold separately)
• Two-year warranty



[Nspace]

Of course, you know and read this MOTU Ultralite Mk5 thread with Armin's review and forum discussion
