AsciLab speakers are about to launch

[AudioJester]

The Genelec stands are robust and can take heavier weight - the 8361a is 32kg. Also height adjustable and have hidden cable management within the stand.

S360-415 Floor Stand for S360, 8x5x, 8x6x & G Five - Genelec.com

Floor Stand with adjustable height for larger loudspeakers

www.genelec.com

The S360 plate would work in terms of size for the C8C.

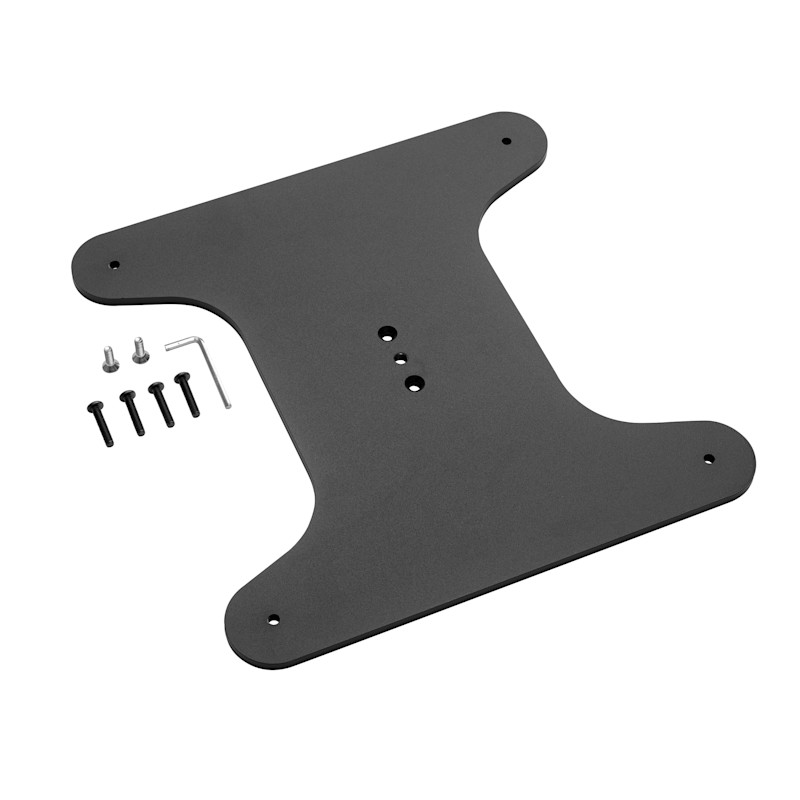

Stand Plate for S360 - Genelec.com

Stand Plate to be used with Genelec Floor Stand S360-415B for S360. Includes mounting screws to secure to the Iso-Plate of S360.

www.genelec.com



[pat355]

@AsciLab do you maybe have an update as to when the C8C will start shipping ? thank you



[sqrl]

You can drill a sheet of plywood or MDF as an interface to match the screw inserts on the C8C and the top-plate of a stand.



[Pritaudio]

Are there going to be any more bookshelf speakers.
Apart from the s6b.
Passive or active.



[see_no_evil]

Are there going to be any more bookshelf speakers.
Apart from the s6b.
Passive or active.

something called S6C or S8C is coming according to a post from @AsciLab earlier in this thread. At a much higher price than C8C.



[kharan]

Are there going to be any more bookshelf speakers.
Apart from the s6b.
Passive or active.

Probably not any time soon. It seems like they are looking to finish the tower then the Purifi cardioids first. From their current pace, I wouldn't expect something other than the previously mentioned speakers before about a year.

There were plans to fill up the cardioid line from the bottom, so more bookshelves, but no one but Ascilab knows the state of those plans.



[ry_]

You mean in US? If so, our shipment is arriving end of this month. It will then take a week to clear customs, etc. So first week of February.

Will you be PMing the people who expressed interest/reservation when they arrive?



[Purité Audio]

@AsciLab do you maybe have an update as to when the C8C will start shipping ? thank you

I believe Asci are aiming for the second half of next month for the C8C, with the BX8C following on.
Keith



[AudioJester]

I believe Asci are aiming for the second half of next month for the C8C, with the BX8C following on.
Keith

Yep, got the email.
C8C mid Feb
BX8C April

Was going to wait to set up together if 1 month delivery gap, but now I think I will come up with a stand solution for the C8C in the interim



[AsciLab]

We are pleased to share the measurement data of C8T, AsciLab’s first tower loudspeaker.

The results are outstanding and well worth the wait.

We are especially pleased that the performance fully lives up to AsciLab’s motto:
“Best performance in its price range, lowest price for its performance.”

It shows a flat and smooth frequency response, along with an excellent directivity index (DI).

It also shows very uniform behavior in the vertical response.

In addition to its excellent horizontal directivity, the vertical directivity also shows an unusually uniform behavior rarely seen in tower loudspeakers.

It shows excellent suppression of THD not only at 86 dB but also at 96 dB.

MD is also very well controlled.

Impedance graph is added.



[AsciLab]

do you maybe have an update as to when the C8C will start shipping ? thank you

Shipping of the C8C will begin in early February. Customers whose orders are expected to ship later have been notified separately by email.



[Reddoc]

We are pleased to share the measurement data of C8T, AsciLab’s first tower loudspeaker.

The results are outstanding and well worth the wait.

We are especially pleased that the performance fully lives up to AsciLab’s motto:
“Best performance in its price range, lowest price for its performance.”



View attachment 503791
It shows a flat and smooth frequency response, along with an excellent directivity index (DI).

View attachment 503809View attachment 503810
It also shows very uniform behavior in the vertical response.



View attachment 503794


View attachment 503793

View attachment 503792
View attachment 503812

View attachment 503797View attachment 503798View attachment 503795View attachment 503796
In addition to its excellent horizontal directivity, the vertical directivity also shows an unusually uniform behavior rarely seen in tower loudspeakers.


View attachment 503799View attachment 503800
View attachment 503801View attachment 503802
View attachment 503803View attachment 503804
It shows excellent suppression of THD not only at 86 dB but also at 96 dB.


View attachment 503805View attachment 503806View attachment 503807View attachment 503808
MD is also very well controlled.

Another great product from you guys- congrats!



[Bwaslo]

Is that a cardioid? Looks like directivity mostly holds to ~200Hz??



[AsciLab]

Is that a cardioid? Looks like directivity mostly holds to ~200Hz??

It has some of cardioid pattern down to low midrange without the cardioid slot that occurs distortion. Not fully cardioid like C8C/BX8C but it is quite great achievement as a passive speaker.



[Grotti]

Especially vertical directivity and MD are outstanding. It will be a hard decision for some to choose between the C8T, S6B or the C8C given the fact, that the prices are roughly comparable (give or take). Great job!!!



[AudioJester]

Those graphs look incredible!
Well done AsciLab



[Darkatomz]

I had to do a double take, this is probably the only passive speaker I've seen that might not need a sub if you are that good down to ~28Hz.



[Bwaslo]

It has some of cardioid pattern down to low midrange without the cardioid slot that occurs distortion. Not fully cardioid like C8C/BX8C but it is quite great achievement as a passive speaker.

How? Too narrow to be waveguide in mids.



[AsciLab]

I had to do a double take, this is probably the only passive speaker I've seen that might not need a sub if you are that good down to ~28Hz.

Thank for your kind words.
The actual bass extension is more close to Sound Power. Due to its different plane placement of woofer and midwoofer, on-axis at 2m looks a bit less bass. But actually the sound power response more fits to its band width Then the -10dB becomes 25Hz. Furthermore, the lower the frequency means the more in room gain. Yes. It will easy to extent down to 28Hz in room.



[AsciLab]

How? Too narrow to be waveguide in mids.

A proper mix of front midwoofer and side woofers can make that result.
